The HF-EP2000 series is a high-flex ethernet & power hybrid cable designed for continuous motion systems, robotic arms, and drag chain applications. Its dual-core hybrid structure supports simultaneous Ethernet data and power transmission through repeated bending, while the durable PUR/TPE jacket helps resist oil, abrasion, and mechanical wear. This cable is suitable for network communication, power delivery, and automation control in demanding industrial environments.
Key Benefits:
✅ High flexibility for 10 million+ bending cycles in continuous motion
✅ 2-in-1 design combining Ethernet data and power in a single cable
✅ Durable jacket with oil, abrasion, and chemical resistance
✅ UL/CE certified for robotic arms, drag chains, and automation systems
High-Flex Ethernet & Power Hybrid Cable | Industrial Cable Manufacturer
2-in-1 Data & Power Solution for Continuous-Motion Industrial Equipment
Engineered for robotic arms, drag chains, and automated production lines, our High-Flex Ethernet & Power Hybrid Cable combines Ethernet data transmission and power delivery in a single flex-rated jacket. Rated for 10 million+ bending cycles and UL/CE certified, this hybrid cable is built for equipment that moves continuously and cannot afford signal or power failure.
Quick Specs at a Glance
| Attribute | Details |
|---|---|
| Model | HF-EP2000 Series |
| Cable Type | 2-in-1 Hybrid (Ethernet Data + Power) |
| Data Standard | Cat5e / Cat6 |
| Power Conductors | 18AWG – 24AWG (customizable) |
| Jacket Material | PUR / TPE — oil & abrasion resistant |
| Flex Life | 10,000,000+ bending cycles |
| Bending Radius | ≥ 5×OD (dynamic) |
| Temperature Range | -40°C to +105°C |
| Certifications | UL, CE, RoHS, REACH |
| Protection Rating | IP65 / IP67 (connector-dependent) |
| Shielding | Braided + foil, EMI/RFI resistant |
Where This Cable Is Used
Our hybrid cable is deployed across industries where machinery moves continuously and reliability under stress is non-negotiable:
Robotics & Automated Arms
Multi-axis joints require cables that flex thousands of times per day without conductor fatigue. This high-flex ethernet and power hybrid cable maintains signal integrity through millions of articulation cycles.
Drag Chain & Cable Carrier Systems
In CNC machines and packaging lines, cables inside drag chains face constant reciprocating motion. Our combo cable’s flex-rated construction is specifically validated for this use case.
AGVs & Mobile Automation Platforms
Combined power and network wiring reduces cable count and weight — a key advantage for autonomous guided vehicles and mobile robotics.
Semiconductor & Cleanroom Equipment
Low-outgassing jacket options are available for cleanroom-compatible manufacturing environments.
Factory Automation & PLC Wiring
Where panel space is limited, this hybrid ethernet power cable consolidates two wiring runs into one, simplifying cable management in control cabinets.
Technical Construction

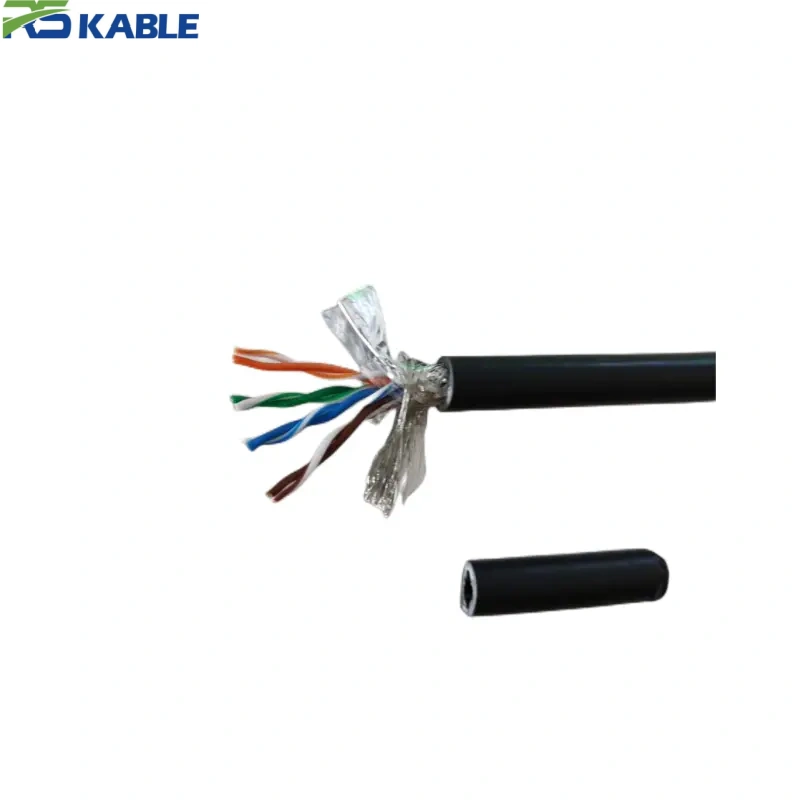

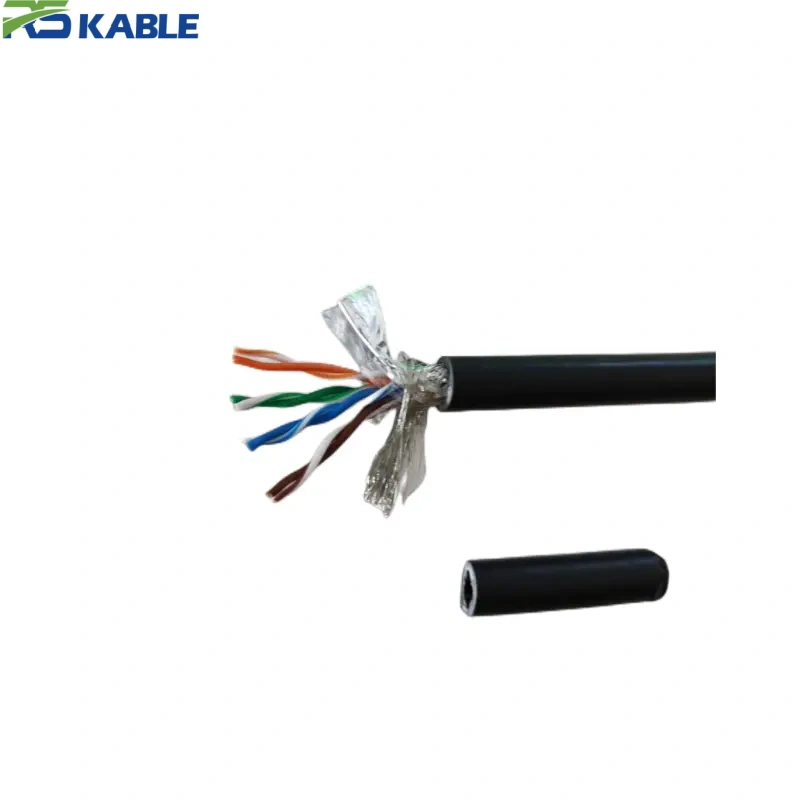

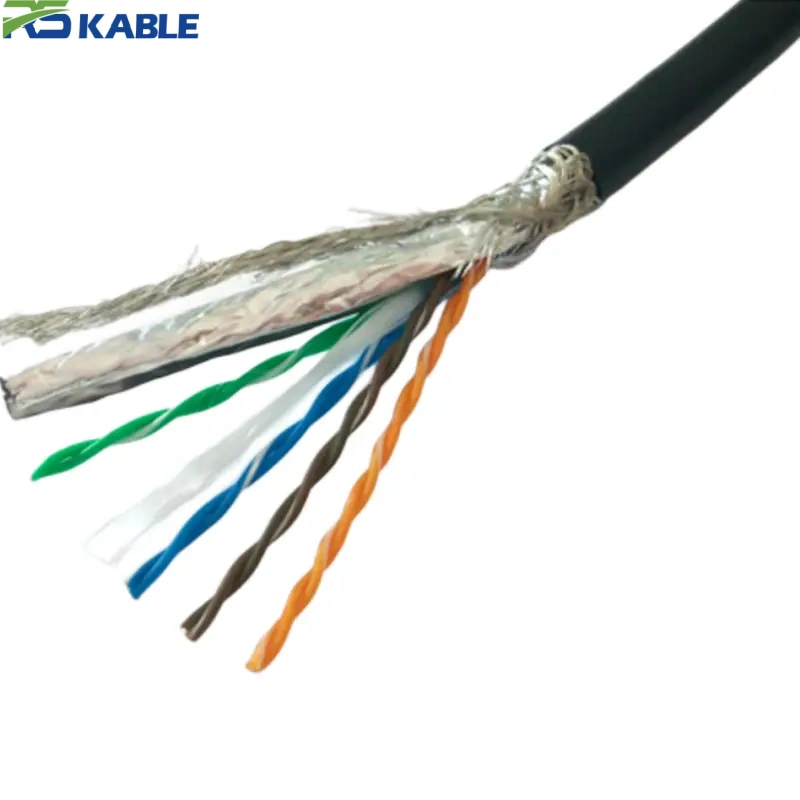

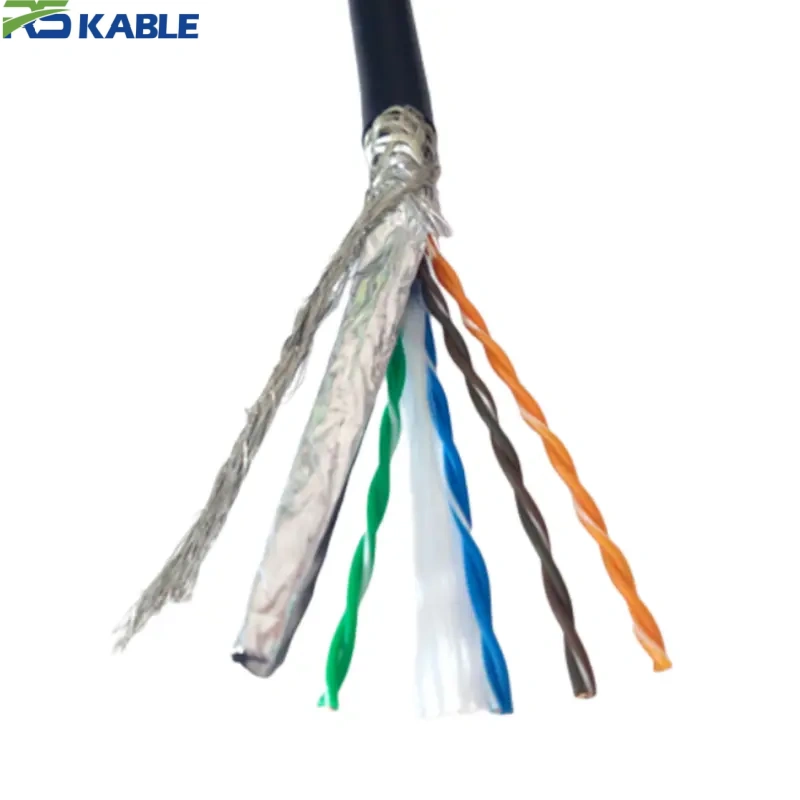

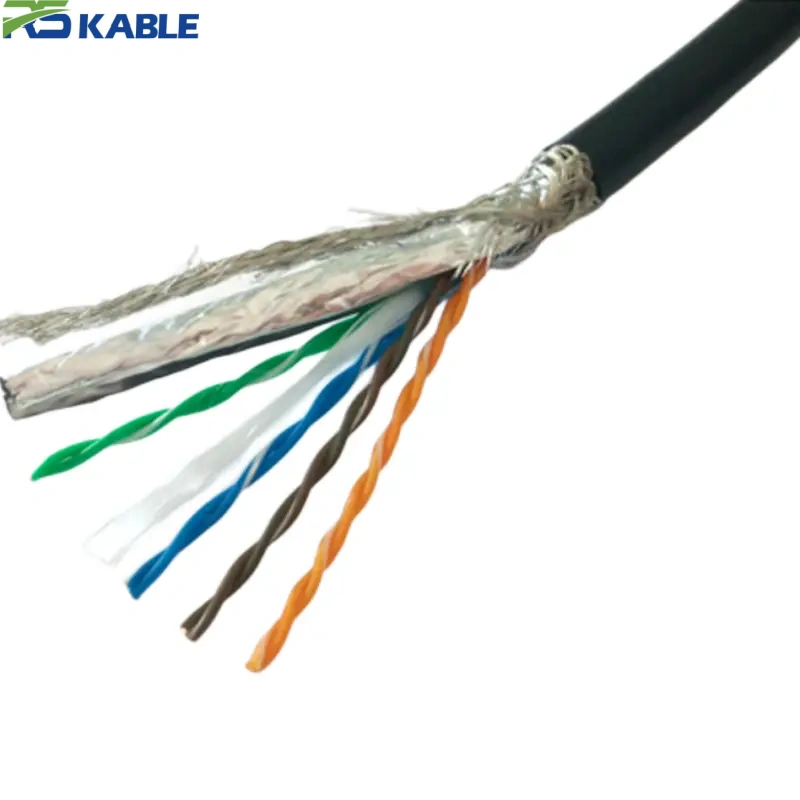

Core Design
The cable core pairs twisted Ethernet conductors with dedicated power cores under a unified shielding layer, wrapped in a high-flex outer jacket. This layered structure is what separates a true flex-rated hybrid cable from standard industrial ethernet cable or power cable products that aren’t built for repeated motion.
Material & Performance Details
- Jacket: PUR or TPE compound, resistant to oil, coolant, and surface abrasion common on factory floors
- Conductors: stranded copper, gauge selectable per current load requirements
- Data lines: Cat5e/Cat6-compliant twisted pairs for stable network throughput
- Shielding: dual-layer (braid + foil) to prevent crosstalk between power and data circuits
- Flex validation: cycle-tested in-house on reciprocating bend-test rigs before certification
Manufacturing Standards & Quality Assurance
Every production batch of our High-Flex Ethernet & Power Hybrid Cable is tested against UL and CE requirements before shipment. Our in-house lab performs:
- Bending-cycle life testing (validated to 10M+ cycles)
- EMI/RFI shielding performance checks
- Environmental resistance testing (temperature, oil, chemical exposure)
- Continuity and insulation resistance testing on 100% of production runs
Third-party test reports and material certificates (RoHS, REACH) are available on request for procurement and compliance documentation.
Custom Configuration Options
As a direct manufacturer, we support project-specific modifications rather than fixed catalog specs only:
| Customizable Element | Options Available |
|---|---|
| Conductor gauge (AWG) | 18AWG – 24AWG |
| Jacket material | PUR, TPE, low-smoke variants |
| Connector type | RJ45, M12, custom molded ends |
| Cable length | Cut-to-length, reel packaging available |
| Color coding | Standard or custom jacket colors |
Frequently Asked Questions
Q1: What is a High-Flex Ethernet & Power Hybrid Cable used for? It’s designed for equipment needing both data communication and electrical power through one cable — typically robotic arms, drag chains, and other continuously moving industrial machinery.
Q2: How many bending cycles can this cable withstand? Standard construction is rated for 10 million or more cycles under recommended bend radius conditions. Actual service life depends on installation and operating environment.
Q3: Can I customize AWG, connector type, or cable length? Yes — we manufacture to custom specifications including conductor gauge, jacket material, connector style, and length, based on your equipment requirements.
Q4: What certifications does this cable carry? UL and CE certified, with RoHS and REACH compliance. Test reports and material certificates are available upon request.
Q5: What is the minimum order quantity (MOQ)? MOQ depends on the specific configuration and customization level. Contact our sales team with your project details for an accurate quote.
Q6: Is this cable suitable for outdoor or high-temperature use? The standard jacket is rated from -40°C to +105°C. For extreme environments, our engineers can recommend specialized jacket materials.
