The FEP Cable for Industrial Applications is developed for power, control, and signal transmission in environments where standard PVC, PE, or rubber-insulated cable cannot survive the thermal, chemical, or mechanical conditions along the routing path. It is intended for installations in aerospace equipment, semiconductor process tools, oil & gas processing facilities, and other high-temperature or chemically aggressive industrial environments.

In high-temperature industrial installations, cable failure usually traces back to one of three problems: insulation softening or deformation from sustained heat causing dielectric breakdown, jacket degradation from solvent or chemical exposure leading to insulation damage, or mechanical stress at connection points without adequate tensile reinforcement. This cable is designed to reduce those risks through an FEP insulation selected specifically for thermal and chemical stability, an optional braided shield for EMI protection, and aramid fiber reinforcement for tensile strength at stress points.

The result is an FEP cable better suited to demanding industrial and aerospace environments than standard insulated cable, especially in applications where thermal stability, chemical resistance, and mechanical durability directly affect cable service life and system reliability.

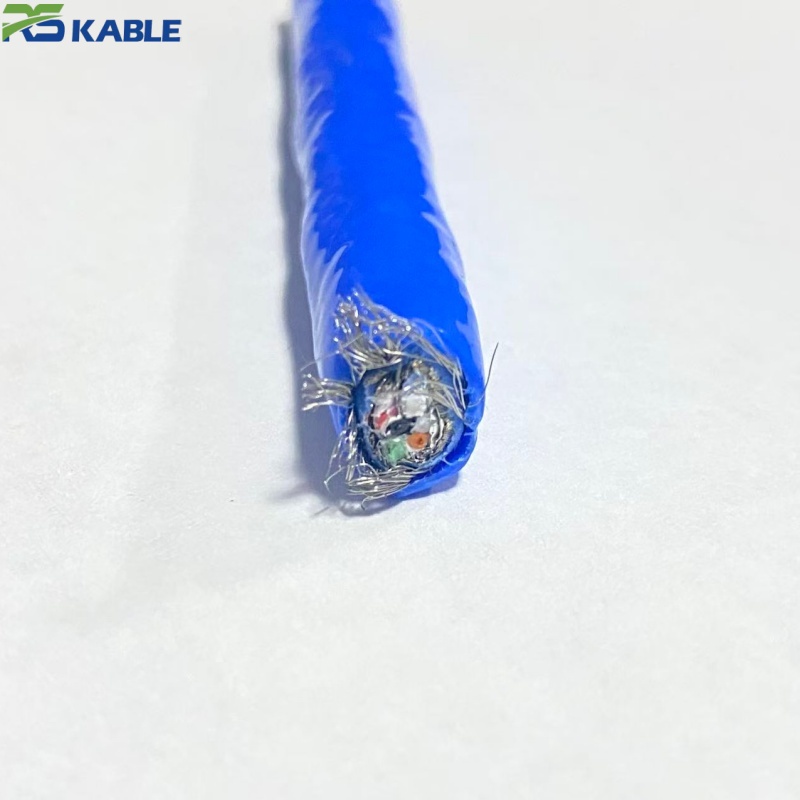

FEP Cable

Designed For

This cable is intended for:

• power, control, and signal transmission in sustained high-temperature environments
• aerospace, semiconductor, and oil & gas processing equipment
• installations exposed to solvents, oils, or aggressive chemical contact
• applications requiring low-friction, non-stick insulation surface properties
• fixed or lightly-moving installations requiring long-term thermal and chemical stability

This cable should be evaluated separately for:

• continuous dynamic flexing in drag chains or robotic joints — a different conductor stranding and jacket flexibility profile is generally needed for repeated bending duty
• high-speed, defined-impedance data protocols requiring specific cable geometry
• direct burial or continuous submersion applications
• cost-sensitive, moderate-temperature applications where standard PVC or rubber-insulated cable is a more economical fit

Product Summary

Typical Product Series

Series Name: RST-FEP Series Category: High temperature FEP cable for industrial and aerospace applications

Technical Parameters

The values below are typical selection items. Final design should be confirmed according to temperature exposure, chemical environment, mechanical load, and shielding requirement.

FEP Cable

Cable Construction

Copper Conductor

Depending on the application, conductors are supplied as bare, tinned, or silver-plated copper. Tinned or silver-plated finishes are typically selected for high-frequency signal circuits or environments where conductor oxidation resistance is a priority, while bare copper is common for general power and control circuits.

FEP Insulation

FEP is selected for its combination of high-temperature stability, low dielectric constant, and chemical inertness. Unlike PVC or standard rubber insulation, FEP resists softening and deformation under sustained heat, maintaining more consistent electrical and dimensional properties over the cable’s service life.

Braided Shield

Where EMI protection is required, a tinned or silver-plated copper braid is applied over the insulated core. Braid coverage percentage is selected based on the installation’s electromagnetic environment.

Aramid Fiber Tensile Reinforcement

For installations subject to mechanical pulling load, repeated handling, or connection-point stress, aramid fiber reinforcement is incorporated into the cable structure. This reinforcement carries mechanical load that would otherwise be transferred directly to the conductor, reducing the risk of conductor damage at stress points.

FEP or Chemical-Resistant Jacket

The outer jacket is selected to match the insulation’s thermal and chemical resistance properties — pairing a high-temperature FEP core with a lower-temperature-rated jacket would create a mismatched construction where the jacket becomes the limiting factor.

Why FEP Construction Extends Cable Life in Demanding Environments

An FEP cable’s service life is not defined by temperature rating alone. Service life depends on how the whole construction — conductor, insulation, shield, and reinforcement — performs together under the actual thermal, chemical, and mechanical conditions of the installation.

Reduced Insulation Breakdown Under Heat

Because FEP resists softening under sustained heat, dielectric properties remain more stable across the operating temperature range, reducing the risk of insulation breakdown that can occur with lower-temperature-rated materials.

Better Long-Term Stability in Chemically Aggressive Environments

FEP’s chemical inertness allows it to resist degradation from solvents, oils, and industrial chemicals that would degrade standard PVC or rubber insulation over time, extending service life in process environments with regular chemical exposure.

Lower Risk of Mechanical Failure at Stress Points

Where aramid fiber reinforcement is incorporated, mechanical pulling and handling loads are carried by the reinforcement rather than the conductor, reducing the risk of conductor fatigue or breakage at connection points and stress concentrations.

Better Fit for High-Reliability Aerospace and Semiconductor Applications

Aerospace and semiconductor process equipment often require cable that maintains stable performance across extreme temperature ranges and repeated thermal cycling. FEP construction is widely selected for these applications specifically because of its documented thermal and chemical stability.

High-Temperature Industrial Application Boundary

This cable is suitable for:

• sustained high-temperature routing in aerospace, semiconductor, and process equipment
• installations exposed to solvents, oils, or aggressive industrial chemicals
• applications requiring stable dielectric performance across a wide temperature range
• fixed or lightly-moving installation routing with mechanical load requirements

This cable requires separate confirmation for:

• continuous dynamic flexing applications — a different conductor stranding and jacket flexibility profile is needed for repeated bending duty
• high-speed, defined-impedance data transmission requiring specific cable geometry
• moderate-temperature, cost-sensitive applications where standard PVC or rubber-insulated cable is a more economical choice
• direct burial or submersion use

This boundary matters because FEP construction solves a specific thermal and chemical resistance problem — it is not a universal upgrade over standard insulated cable for every industrial application.

Typical Applications

The FEP Cable for Industrial Applications is commonly used in:

• aerospace avionics and ground support equipment
• semiconductor process tool wiring
• oil & gas processing and instrumentation
• chemical processing plant wiring
• high-temperature furnace and oven equipment
• military and defense electronics
• laboratory and test equipment requiring chemical resistance

Typical Working Conditions

• sustained high ambient or radiant heat exposure
• solvent, oil, or chemical contact along the routing path
• fixed or lightly-moving installation routing
• mechanical pulling or handling load at connection points
• long-term thermal cycling

FEP Cable vs Standard PVC-Insulated Cable

For moderate-temperature applications without chemical exposure concerns, standard PVC-insulated cable is often the more cost-effective choice.

Unshielded FEP Cable vs Braided Shield FEP Cable

Shielded construction is generally recommended when the cable is routed near or parallel to power cabling or other significant EMI sources.

FEP Cable

Selection Guide

Correct selection depends on the actual thermal, chemical, and mechanical environment, not temperature rating alone.

1. Confirm Function

Identify whether the cable carries power, control, or signal circuits.

2. Confirm Temperature Exposure

Sustained ambient or radiant heat exposure along the routing path determines FEP construction requirements versus standard insulated cable.

3. Confirm Chemical Exposure

Solvents, oils, and industrial chemicals along the routing path should be checked against FEP’s chemical resistance properties and jacket compound selection.

4. Confirm Mechanical Load Requirements

Pulling load, handling stress, and connection-point requirements determine whether aramid fiber reinforcement is needed.

5. Confirm Shielding Requirement

Proximity to motors, drives, or other EMI sources determines shielded versus unshielded construction selection.

6. Confirm Conductor Finish

Bare, tinned, or silver-plated copper selection depends on signal frequency requirements and oxidation resistance needs.

7. Confirm Installation Type

This is generally a fixed or lightly-moving installation cable; continuous dynamic flexing applications should be evaluated against a different construction.

Customization and Supply

Custom construction is available for project-based industrial and aerospace applications.

Available Options

• conductor finish (bare/tinned/silver-plated)
• shield structure
• aramid fiber reinforcement
• jacket color and marking
• cut length, coil, or reel supply

Supply Support

• model matching based on temperature, chemical, and mechanical requirements
• sample supply for evaluation
• drawing and structure confirmation before production
• OEM and project supply
• industrial batch production

Ordering Information

For faster quotation and model selection, provide:

• application type (power, control, or signal)
• temperature exposure along the routing path
• chemical/solvent exposure conditions
• mechanical load or tensile reinforcement requirement
• shielding requirement
• cable length

Inquiry Example

FEP cable, tinned copper conductor, braided shield, aramid fiber reinforcement, red FEP jacket, 100 meters, semiconductor process tool wiring near high-heat chamber

Call to Action

Request a Quote for FEP Cable Send the application details for model selection, structure confirmation, and pricing.

FAQ

What is FEP cable used for?

It is used for power, control, and signal transmission in high-temperature and chemically demanding environments, particularly in aerospace, semiconductor, and oil & gas applications where standard PVC or rubber-insulated cable cannot survive the thermal or chemical exposure.

Why is FEP used instead of standard PVC or rubber insulation?

FEP resists softening and deformation under sustained heat and offers strong resistance to solvents and industrial chemicals, maintaining stable dielectric and mechanical properties where standard insulation materials would degrade.

What is the purpose of the aramid fiber reinforcement?

Aramid fiber carries mechanical pulling and handling load that would otherwise stress the conductor directly, reducing the risk of conductor fatigue or breakage at connection points and installation stress concentrations.

Is this cable suitable for dynamic flexing applications?

Not as a standard construction. This cable is generally designed for fixed or lightly-moving installations. Continuous dynamic flexing applications require a different conductor stranding and jacket flexibility profile.

What temperature range can this cable handle?

Temperature capability depends on the specific FEP insulation and jacket construction selected. The exact rating should be confirmed against the project’s specific construction and thermal exposure requirements.

When is shielded construction necessary?

Shielded construction is generally recommended when the cable is routed near motors, drives, or other high-EMI equipment; unshielded construction is typically sufficient for general power/control wiring away from such sources.

Does this cable resist chemical and solvent exposure?

Yes. FEP is chemically inert against a broad range of solvents, oils, and industrial chemicals, which is a primary reason it is selected over standard PVC or rubber insulation in process environments.

Is custom construction available?

Yes. Conductor finish, shielding, aramid fiber reinforcement, jacket color, and marking can be matched to specific project and application requirements.
