FEP CAT5E Ethernet Cable | High Temperature Industrial Network Cable for Harsh Environments
FEP CAT5E Ethernet Cable is a high temperature industrial network cable built for Ethernet and PLC communication near furnaces, ovens, and chemically harsh manufacturing environments. Its FEP-insulated twisted pair construction maintains stable CAT5E electrical characteristics under sustained heat, while the chemical-resistant jacket withstands oil and solvent exposure.
Key Benefits:
✅ FEP insulation maintains twisted-pair geometry and impedance under sustained heat
✅ CAT5E-compliant construction supports reliable industrial network data rates
✅ Chemical and oil resistant jacket withstands harsh manufacturing environments
✅ Shielded options available for installations near motors and drives
FEP CAT5E Ethernet Cable | High Temperature Industrial Network Cable for Harsh Environments
The FEP CAT5E Ethernet Cable for Harsh Environments is developed for industrial network installations where standard PVC or PE-jacketed Ethernet cable cannot survive the thermal or chemical conditions along the routing path. It is intended for Ethernet data, PLC networking, and industrial communication circuits in furnace-adjacent control panels, oven monitoring systems, semiconductor process equipment, and other high-temperature manufacturing environments.
In high-temperature network installations, cable failure usually traces back to one of three problems: insulation deformation from sustained heat causing impedance shift and data errors, jacket degradation from chemical or oil exposure leading to insulation breakdown, or twisted-pair geometry distortion under heat that increases crosstalk and reduces transmission reliability. This cable is designed to reduce those risks through an FEP dielectric selected specifically for thermal and dimensional stability, a twisted-pair construction that maintains CAT5E electrical characteristics under heat, and a chemically resistant jacket suited to harsh industrial atmospheres.
The result is an FEP CAT5E Ethernet cable better suited to high-temperature industrial networking than standard PVC-jacketed CAT5E cable, especially in applications where data reliability, thermal stability, and cable service life are directly affected by sustained heat and chemical exposure.
FEP CAT5E Ethernet Cable
Designed For
This cable is intended for:
- Ethernet networking in furnace-adjacent control panels and high-heat enclosures
- PLC and industrial automation network communication in harsh thermal environments
- semiconductor and process equipment requiring stable data transmission near heat sources
- installations exposed to oil, solvent, or chemical contact along the routing path
- fixed or lightly-moving network installations requiring sustained high-temperature performance
This cable should be evaluated separately for:
- continuous dynamic flexing in drag chains or robotic joints — this is a fixed or lightly-moving installation cable, not a dynamic-flex construction
- CAT6/CAT6A or higher-bandwidth requirements exceeding CAT5E’s data rate specification
- outdoor direct burial or continuous submersion applications
- cost-sensitive, moderate-temperature applications where standard PVC-jacketed CAT5E cable is a more economical fit
Product Summary
| Item | Description |
|---|---|
| Product Type | FEP-insulated CAT5E industrial Ethernet cable |
| Main Use | High-temperature Ethernet data transmission and industrial network communication |
| Typical Installations | Furnace control panels, oven monitoring systems, semiconductor process equipment, high-temperature manufacturing lines |
| Category Compliance | CAT5E (TIA/EIA-568 electrical characteristics) |
| Conductor Type | Solid or stranded bare copper, twisted pair |
| Insulation | FEP (fluorinated ethylene propylene) |
| Jacket Type | FEP or high-temperature-rated compound, chemical and oil resistant |
| Supply Form | Cut length, coil, reel |
Typical Product Series
Series Name: RST-FEP-C5E Series Category: High temperature FEP CAT5E cable for industrial network environments
| Product Model | Product Name | Pair Count | Typical Use | Shield Option | Jacket |
|---|---|---|---|---|---|
| RST-FEP-C5E-U | Unshielded FEP CAT5E cable | 4-pair | Standard industrial networking | Unshielded (UTP) | FEP |
| RST-FEP-C5E-F | Foil-shielded FEP CAT5E cable | 4-pair | Moderate-EMI environments | Foil (FTP) | FEP |
| RST-FEP-C5E-SF | Braid + foil shielded FEP CAT5E cable | 4-pair | High-EMI environments near motors/drives | Braid + foil (SFTP) | FEP |
| RST-FEP-C5E-HD | Heavy-duty FEP CAT5E cable | 4-pair | Extended chemical/thermal exposure | SFTP | Reinforced FEP |
| RST-FEP-C5E-C | Custom FEP CAT5E cable | Custom | Project-specific industrial network applications | Custom | Custom |
Technical Parameters
The values below are typical selection items. Final design should be confirmed according to network protocol requirement, cable length, shielding need, and temperature exposure.
| Parameter | Typical Range / Description |
|---|---|
| Category Compliance | CAT5E electrical characteristics per TIA/EIA-568 |
| Conductor Material | Bare copper, solid or stranded |
| Conductor Configuration | 4 twisted pairs |
| Insulation Material | FEP (fluorinated ethylene propylene) |
| Jacket Material | FEP or high-temperature-rated chemical-resistant compound |
| Shielding Options | Unshielded (UTP), foil (FTP), braid + foil (SFTP) |
| Temperature Rating | Confirmed according to final insulation/jacket compound — FEP construction is selected specifically for high-temperature stability |
| Data Rate | Up to 1 Gbps per CAT5E specification, subject to run length and installation condition |
| Minimum Bend Radius | Confirmed according to cable diameter and installation type |
| Outer Diameter | Depends on pair construction, shielding, and jacket thickness |
| Application Scope | Ethernet data transmission, PLC networking, industrial communication |
| Supply Format | Cut length, coil, reel, project supply |
FEP CAT5E Ethernet Cable

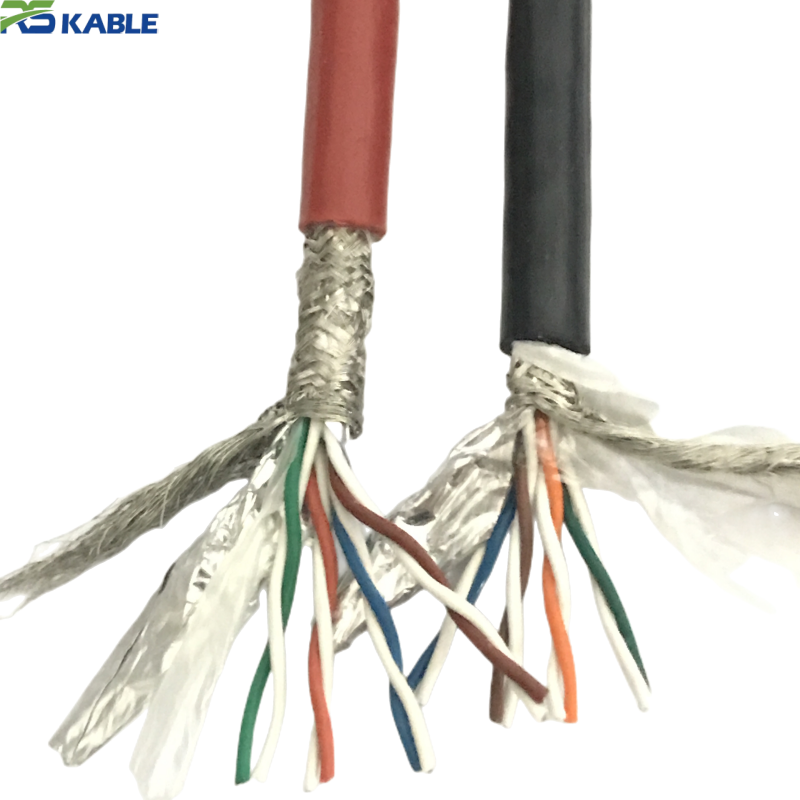

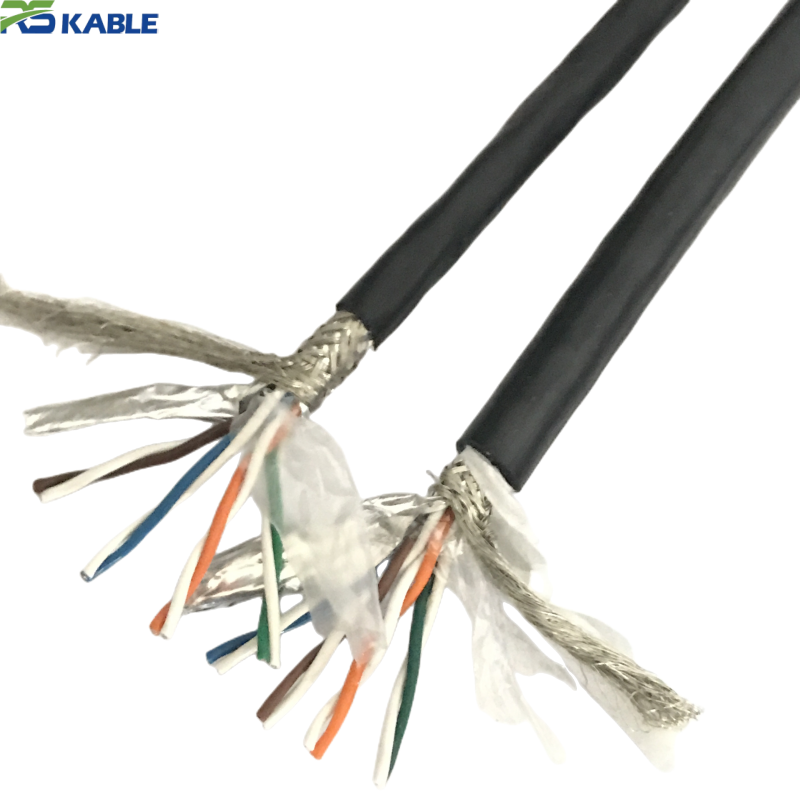

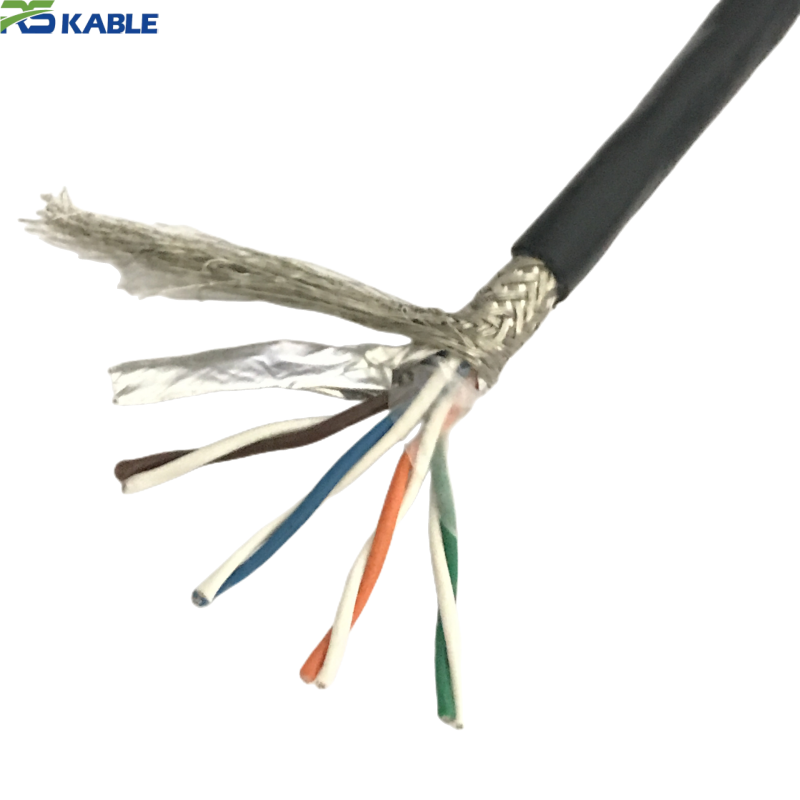

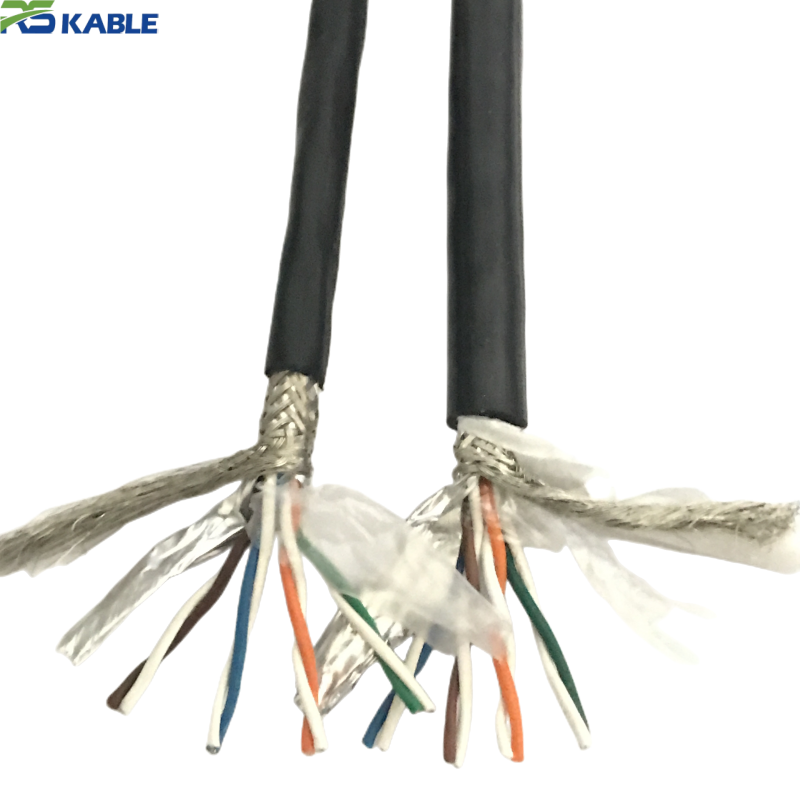

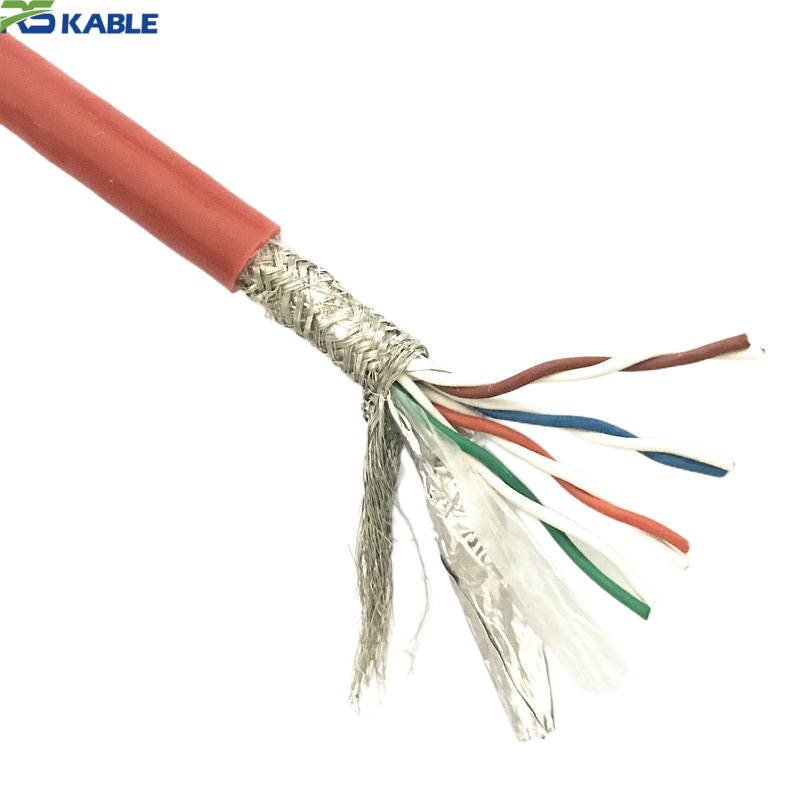

Cable Construction
Bare Copper Twisted Pair Conductors
Four twisted pairs of bare copper conductors are constructed to meet CAT5E electrical characteristics, including specified twist rates per pair to control crosstalk between adjacent pairs within the cable.
FEP Insulation
FEP is selected specifically for its dimensional and dielectric stability across a wide temperature range — unlike standard PE or PVC insulation, which can soften and deform under sustained heat, FEP maintains more consistent twisted-pair geometry, which is essential for preserving CAT5E electrical performance at elevated temperatures.
Shielding Options
Depending on the installation’s EMI environment, unshielded, foil-shielded, or braid-plus-foil shielded constructions are available. Shielding becomes more relevant as the cable is routed closer to motors, drives, or other high-EMI industrial equipment.
Chemical and Oil Resistant Jacket
The outer jacket is selected for resistance to oils, solvents, and chemical exposure common in industrial manufacturing environments, in addition to sustained high-temperature service — a jacket rated for heat alone without chemical resistance would be a mismatched construction for many industrial routing environments.
Twisted Pair Geometry Control
Maintaining consistent twist rate and pair geometry under thermal cycling is critical for CAT5E performance — this is why FEP’s dimensional stability under heat matters as much for data integrity as it does for basic insulation resistance.
Why FEP Construction Extends Network Cable Life
A high-temperature network cable’s service life is not defined by heat resistance alone. Service life depends on how well the cable maintains CAT5E electrical performance under the actual thermal and chemical conditions of the installation.
Reduced Impedance and Crosstalk Drift Under Heat
Because FEP resists deformation under sustained heat, twisted-pair geometry and impedance stay closer to CAT5E specification across the operating temperature range, reducing data errors that occur when pair geometry shifts under thermal stress.
Better Long-Term Stability in Thermal Cycling Environments
Repeated heating and cooling cycles can degrade standard PVC/PE-insulated network cable faster than an FEP-insulated construction, since insulation deformation accelerates under thermal cycling rather than constant temperature alone.
Lower Risk of Chemical Degradation
In manufacturing environments with oil mist, solvents, or cleaning chemicals, standard PVC jacket can degrade and expose the underlying insulation. FEP or chemical-resistant jacket construction reduces this risk.
Better Fit for Continuous Industrial Network Uptime
Furnace-adjacent and process-equipment networking often requires continuous, reliable data transmission. In this type of installation, FEP construction reduces the risk of network downtime caused by cable degradation compared to standard-jacketed CAT5E cable.
High-Temperature Network Application Boundary
This cable is suitable for:
- fixed or lightly-moving network installations near furnaces, ovens, or high-heat process equipment
- environments with oil, solvent, or chemical exposure along the cable routing path
- CAT5E-compliant Ethernet, PLC, and industrial communication protocols
- installations requiring stable data transmission across a wide operating temperature range
This cable requires separate confirmation for:
- continuous dynamic flexing applications — a different conductor stranding and jacket flexibility profile is needed for repeated bending duty
- CAT6/CAT6A or higher-bandwidth network requirements
- moderate-temperature, cost-sensitive applications where standard PVC-jacketed CAT5E cable is a more economical choice
- direct burial or submersion use
This boundary matters because FEP construction solves a specific thermal and chemical resistance problem — it is not a universal upgrade over standard CAT5E cable for every industrial network installation.
Typical Applications
The FEP CAT5E Ethernet Cable for Harsh Environments is commonly used in:
- furnace and oven control panel networking
- semiconductor process equipment communication
- industrial PLC and automation network backbones
- high-temperature manufacturing line data transmission
- aerospace ground support equipment networking
- chemical processing plant instrumentation networks
- foundry and metal processing equipment communication
Typical Working Conditions
- sustained high ambient or radiant heat exposure
- oil mist, solvent, or chemical contact along the routing path
- fixed or lightly-moving installation routing
- EMI-sensitive environments near motors and drives
- long-term thermal cycling
FEP CAT5E Cable vs Standard PVC CAT5E Cable
| Comparison Item | FEP CAT5E Cable | Standard PVC CAT5E Cable |
|---|---|---|
| Temperature Stability | High — FEP resists deformation under sustained heat | Limited — PVC can soften and shift pair geometry at elevated temperatures |
| Chemical/Oil Resistance | Higher | Lower, more susceptible to degradation |
| Data Integrity Under Heat | Stable — maintains CAT5E electrical characteristics | Degrades — crosstalk and impedance drift increase with heat |
| Cost | Higher | Lower |
| Best Use | High-temperature, chemically harsh industrial environments | General-purpose, moderate-temperature office/industrial networking |
For moderate-temperature applications without chemical exposure concerns, standard PVC-jacketed CAT5E cable is often the more cost-effective choice.
Unshielded (UTP) vs Shielded (SFTP) FEP CAT5E Cable
| Comparison Item | Unshielded (UTP) | Braid + Foil Shielded (SFTP) |
|---|---|---|
| EMI Rejection | Adequate for low-noise environments | Better for high-EMI industrial environments |
| Flexibility | Slightly better | Slightly reduced due to added shield layers |
| Cost | Lower | Higher |
| Recommended Use | Standard furnace/oven control networking away from motors | Installations near servo drives, VFDs, or high-power switching equipment |
Shielded construction is generally recommended when the network cable is routed near or parallel to motor power cabling or other significant EMI sources.
FEP CAT5E Ethernet Cable
Selection Guide
Correct selection depends on the actual thermal and chemical environment, not category compliance alone.
1. Confirm Function
Identify whether the cable carries standard Ethernet data, PLC communication, or another industrial network protocol.
2. Confirm Temperature Exposure
Sustained ambient or radiant heat exposure along the routing path determines whether FEP construction is necessary versus standard PVC-jacketed CAT5E cable.
3. Confirm Chemical/Oil Exposure
Oil mist, solvents, and cleaning chemicals along the routing path should be checked against jacket compound compatibility.
4. Confirm Shielding Requirement
Proximity to motors, drives, or other EMI sources determines unshielded versus shielded construction selection.
5. Confirm Cable Length and Data Rate Requirement
Run length affects achievable data rate within CAT5E specification and should be checked against network design requirements.
6. Confirm Routing Space and Bend Requirements
Minimum bend radius and overall diameter limits should be checked before final model confirmation.
7. Confirm Installation Type
This is a fixed or lightly-moving installation cable; continuous dynamic flexing applications should be evaluated against a different construction.
Customization and Supply
Custom construction is available for project-based high-temperature network applications.
Available Options
- shielding structure (UTP/FTP/SFTP)
- jacket compound and color
- cable marking
- pair count and configuration
- cut length, coil, or reel supply
Supply Support
- model matching based on temperature exposure and network requirement
- sample supply for evaluation
- drawing and structure confirmation before production
- OEM and project supply
- industrial batch production
Ordering Information
For faster quotation and model selection, provide:
- network protocol requirement (Ethernet, PLC, other)
- cable length
- temperature exposure along the routing path
- chemical/oil exposure conditions
- shielding requirement
- quantity demand
Inquiry Example
FEP CAT5E cable, 4-pair, braid + foil shielded, FEP jacket, 150 meters, furnace control panel networking with nearby VFD equipment
Call to Action
Request a Quote for FEP CAT5E Ethernet Cable Send the application details for model selection, structure confirmation, and pricing.
FAQ
What is FEP CAT5E Ethernet cable used for?
It is used for Ethernet data, PLC networking, and industrial communication in high-temperature and chemically harsh environments, particularly near furnaces, ovens, and process equipment where standard PVC-jacketed CAT5E cable cannot survive the thermal or chemical exposure.
Why is FEP used instead of standard PVC or PE insulation?
FEP maintains more stable twisted-pair geometry and dielectric properties under sustained heat, resisting the deformation that causes crosstalk and impedance drift in PVC or PE-insulated cable at elevated temperatures.
Does this cable support Gigabit Ethernet speeds?
CAT5E specification supports up to 1 Gbps under appropriate conditions, subject to run length and installation quality — this should be confirmed against your specific network design requirements.
Is this cable suitable for dynamic flexing applications?
Not as a standard construction. This cable is designed for fixed or lightly-moving installations. Continuous dynamic flexing applications require a different conductor stranding and jacket flexibility profile.
What temperature range can this cable handle?
Temperature capability depends on the specific FEP insulation and jacket construction selected. The exact rating should be confirmed against the project’s specific construction and thermal exposure requirements.
When is shielded construction necessary versus unshielded?
Shielded (FTP or SFTP) construction is generally recommended when the cable is routed near motors, drives, or other high-EMI equipment, while unshielded (UTP) is typically sufficient for standard furnace/oven control networking away from such sources.
Is this cable resistant to oil and chemical exposure?
Yes, the FEP or chemical-resistant jacket construction is selected specifically to withstand oil mist, solvents, and chemical exposure common in industrial manufacturing environments, in addition to sustained heat resistance.
Is custom construction available?
Yes. Shielding structure, jacket compound, pair configuration, and marking can be matched to specific project and network requirements.
