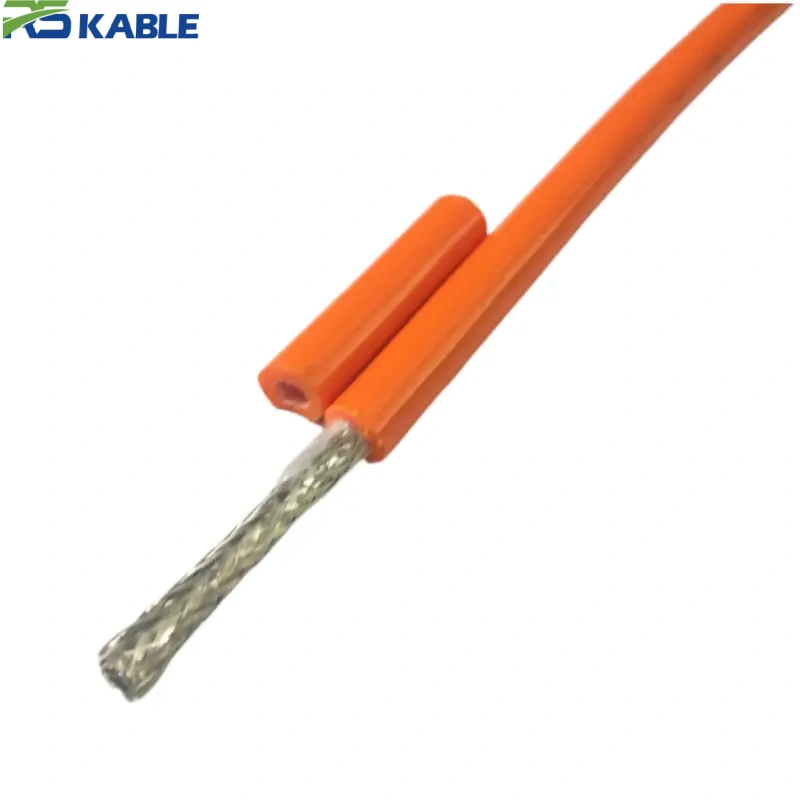

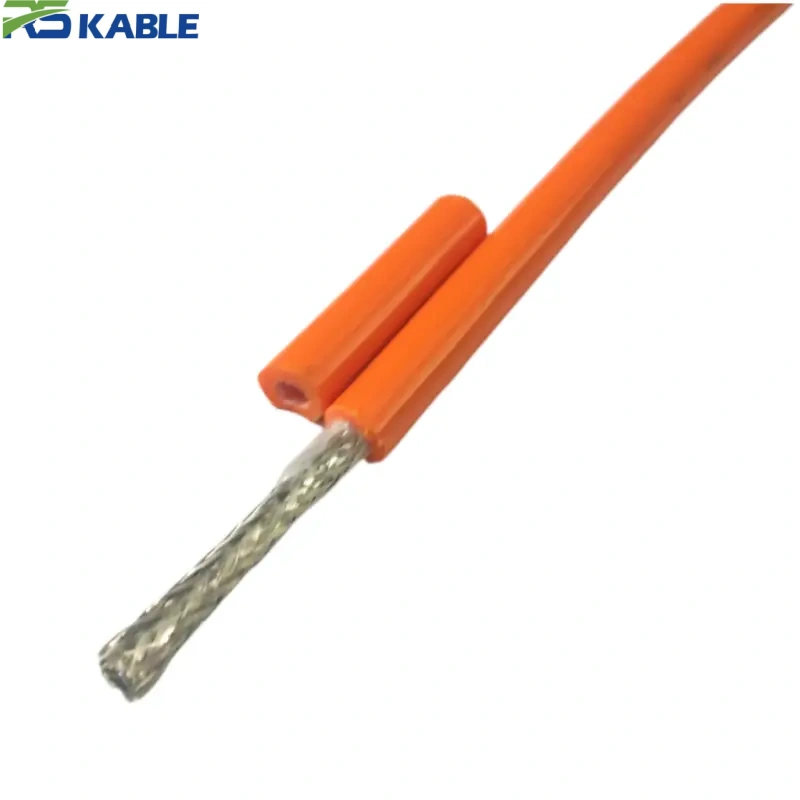

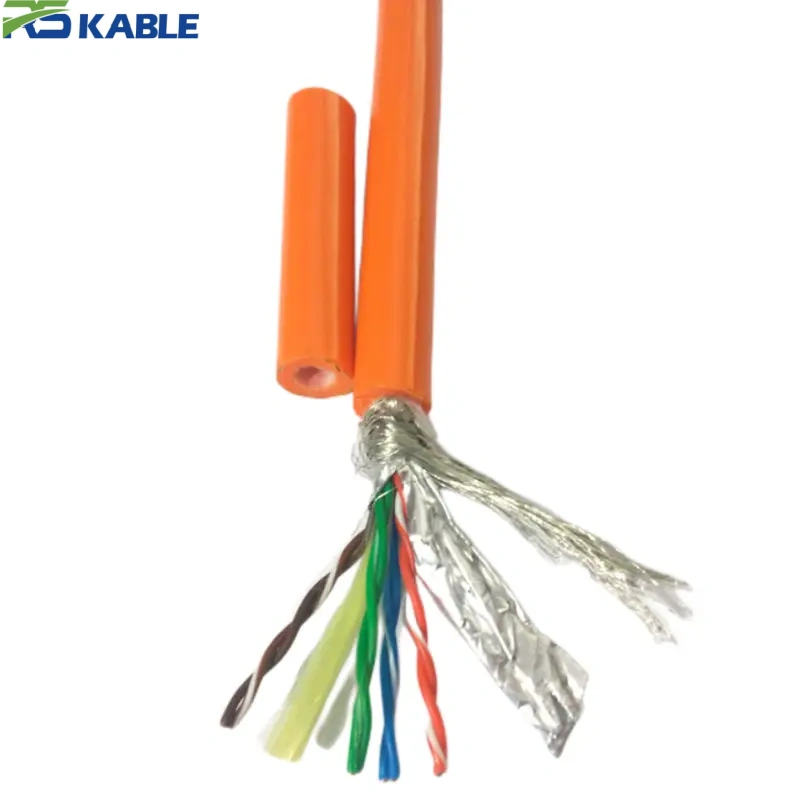

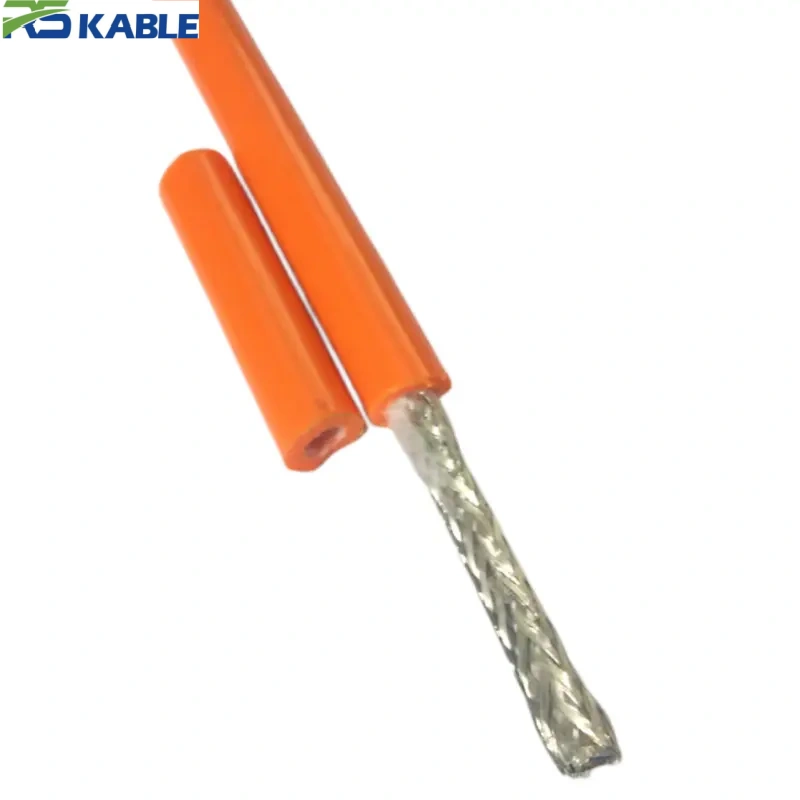

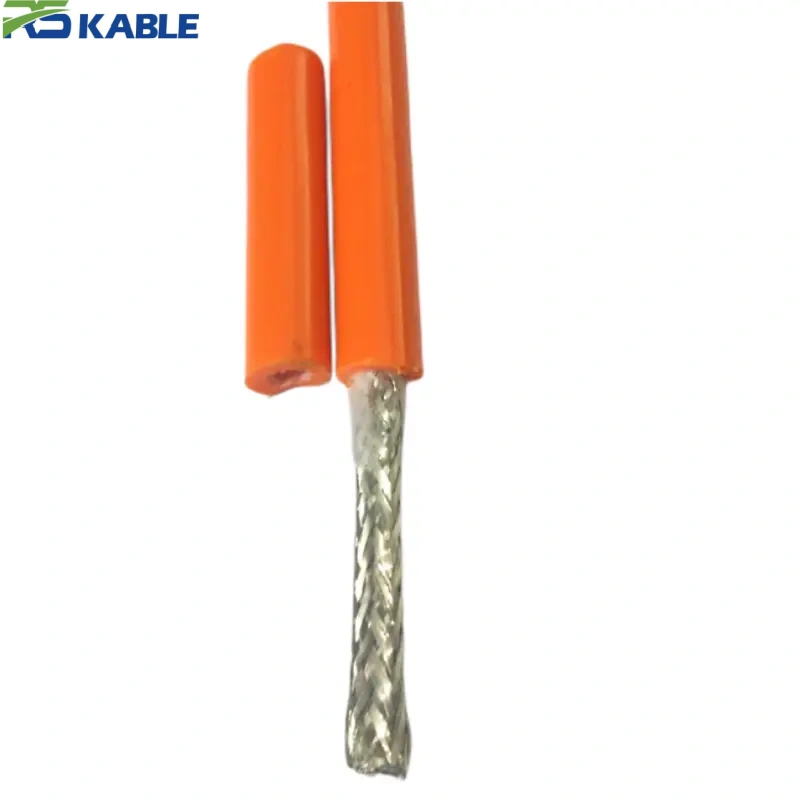

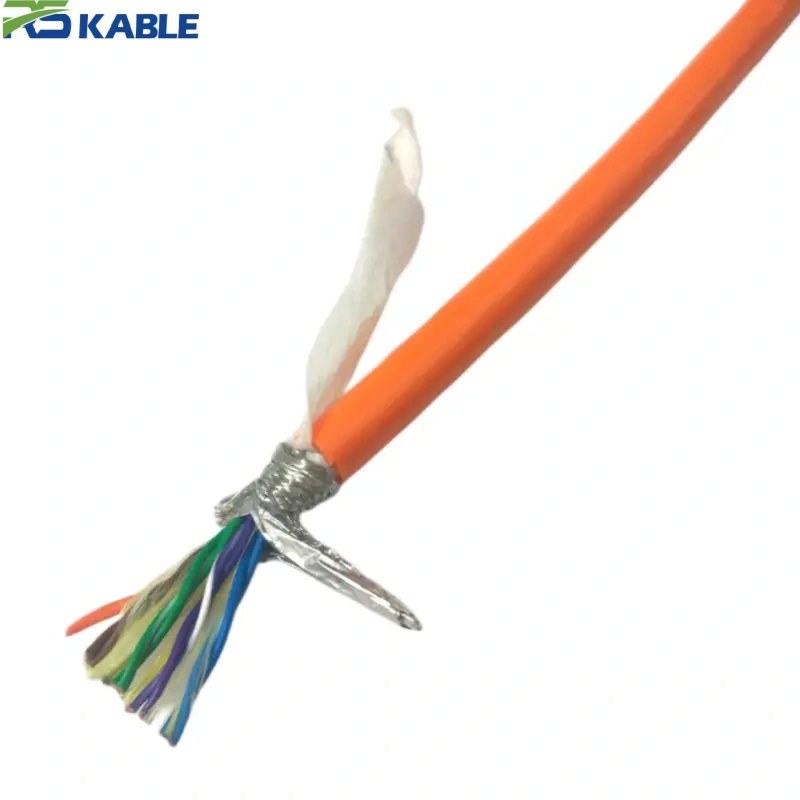

Cat6 Ethernet & Power Hybrid Cable | High-Flex PUR Jacket for Continuous Motion
The Cat6 Ethernet & Power Hybrid Cable is designed for robotic arms, drag chains, and industrial automation systems. Its 2-in-1 hybrid structure combines Cat6 Ethernet data and power transmission in one flexible cable, while the high-flex PUR jacket provides outstanding resistance to oil, abrasion, and continuous bending. As an OEM & custom cable manufacturer, we build cables to match your application requirements.
Cat6 Ethernet & Power Hybrid Cable | High-Flex PUR Jacket for Continuous Motion
Gigabit-rated Cat6 data performance and dedicated power conductors, wrapped in a PUR jacket built to survive millions of bend cycles. This Cat6 Ethernet & Power Hybrid Cable is purpose-built for machinery that never stops moving — where a standard patch cable would crack, kink, or drop signal within weeks.
Why the PUR Jacket Matters
Most cable failures in moving equipment aren’t electrical — they’re mechanical. The jacket cracks first, then moisture and contaminants get in, and the cable fails from the outside in. That’s why jacket material is the single biggest factor in flex-cable lifespan, and why we don’t use generic PVC.
Polyurethane (PUR) was chosen for this cable because it retains elasticity across a wide temperature range, resists oil and coolant common on shop floors, and doesn’t stiffen or crack after repeated flexing the way PVC does. Combined with a stranded copper core (rather than solid conductors), the result is a Cat6 Ethernet & Power Hybrid Cable engineered specifically for dynamic, not static, installation.
| Jacket Type | Flex Performance | Chemical Resistance | Typical Use |
|---|---|---|---|
| PVC (standard) | Low — cracks under repeated flex | Moderate | Fixed, indoor wiring |
| TPE | Moderate | Good | Light-duty moving applications |
| PUR (this cable) | High — 10M+ cycles rated | Excellent (oil, coolant, abrasion) | Drag chains, robotics, continuous motion |
Full Specification
| Parameter | Value |
|---|---|
| Model | CH6-PUR Series |
| Data Standard | Cat6 (backward compatible with Cat5e) |
| Bandwidth | Up to 250 MHz |
| Power Conductors | 18AWG – 24AWG (customizable) |
| Jacket | PUR, high-flex grade |
| Bend Radius (dynamic) | ≥ 5×OD |
| Flex Rating | 10,000,000+ cycles |
| Operating Temperature | -40°C to +105°C |
| Shielding | Braid + foil (SF/UTP) |
| Certifications | UL, CE, RoHS |
| Ingress Protection | IP65 / IP67 (connector-dependent) |
Cat6 vs Cat5e: Which Do You Need?
If your equipment is adding PoE devices, higher-resolution machine vision cameras, or faster PLC-to-controller communication, Cat6 gives you headroom that Cat5e doesn’t:
| Feature | Cat5e Hybrid Cable | Cat6 Hybrid Cable (this product) |
|---|---|---|
| Max bandwidth | 100 MHz | 250 MHz |
| Gigabit Ethernet support | Limited range | Full-length reliable |
| PoE/PoE+ compatibility | Yes | Yes, with lower signal loss |
| Recommended for | Basic I/O, sensors | Machine vision, high-speed control loops |
Application Scenarios
| Industry | How This Cable Is Used |
|---|---|
| Robotics & multi-axis arms | Continuous articulation without conductor fatigue or data dropout |
| Drag chains & cable carriers | Reciprocating motion in CNC, packaging, and material handling lines |
| Machine vision systems | Higher Cat6 bandwidth supports high-resolution camera feeds over long runs |
| AGVs & mobile robots | Combined data + power reduces cable count and onboard weight |
| Cleanroom & semiconductor equipment | Low-outgassing jacket variants available for controlled environments |
View Full Application Guide →
Testing & Certification
Before any batch ships, this Cat6 Ethernet & Power Hybrid Cable goes through:
- Cyclic bend testing to validate the 10-million-cycle rating
- Signal integrity testing to confirm Cat6-level performance is maintained after flexing (not just out of the box)
- Environmental testing for oil, coolant, and temperature extremes
- 100% continuity and insulation testing on finished cable
Test reports and material certificates are available for procurement teams that need documentation for equipment qualification.
Request Certification Documents
Custom Build Options
| Option | Available Configurations |
|---|---|
| Conductor gauge | 18AWG – 24AWG |
| Connector | RJ45, M12, custom overmold |
| Length | Cut-to-length or reel |
| Jacket color | Standard or custom |
| Shielding level | SF/UTP or fully shielded S/FTP |
Talk to Our Engineering Team →
FAQ
Does this cable support Power over Ethernet (PoE/PoE+)? Yes. The hybrid design carries dedicated power conductors separate from the Cat6 data lines, so PoE devices can be powered without relying on the data pair itself.
Is this cable rated for Gigabit Ethernet? Yes — Cat6 construction supports Gigabit Ethernet at full cable length, with headroom up to 250 MHz bandwidth.
How is this different from a standard Cat6 patch cable? Standard patch cables use PVC jackets and solid conductors meant for fixed installation. This cable uses stranded conductors and a PUR jacket specifically rated for continuous flexing in moving equipment.
Can this be shielded for high-EMI environments? Yes. Standard builds include braid + foil shielding; fully shielded S/FTP configurations are available for environments with servo drives or high-frequency switching equipment nearby.
What’s the minimum order quantity? MOQ depends on configuration. Contact us with your specification for an accurate quote, including options for small-batch prototype runs.
Do you provide samples before bulk ordering? Yes — sample lengths are available for testing in your application prior to placing a production order.
Get the Right Cable for Your Application
Send us your bend radius, cycle life target, and power requirements — our engineers will confirm the right configuration before you order.
Get a Quote | Request Sample | Download Datasheet
Manufactured directly, with in-house testing and certification support for OEMs, system integrators, and industrial equipment builders.
