Why Your ROV Loses Power Before It Reaches the Seafloor — and What to Do About It

Why Your ROV Loses Power Before It Reaches the Seafloor — and What to Do About It

A survey ROV we helped commission for a Norwegian offshore wind client showed puzzling behavior: thrusters responded sluggishly beyond 180 m depth, and the HD camera would intermittently drop frames even though the surface power supply was holding steady at 48 VDC. Three different contractors had inspected the system before we were called in. None had run a voltage budget. That single omission was the entire problem.

ROV cable power loss is not a fringe failure mode — it is an inherent, predictable consequence of transmitting electricity through a resistive conductor over distance. What makes it insidious is that it does not look like a failure. The system runs. It just runs badly, and the cause stays hidden unless someone does the arithmetic first.

This article walks through the complete picture: the physics, the planning methodology, the real numbers from actual deployments, and the systematic mistakes that cause engineers and operators to underestimate the problem every time.

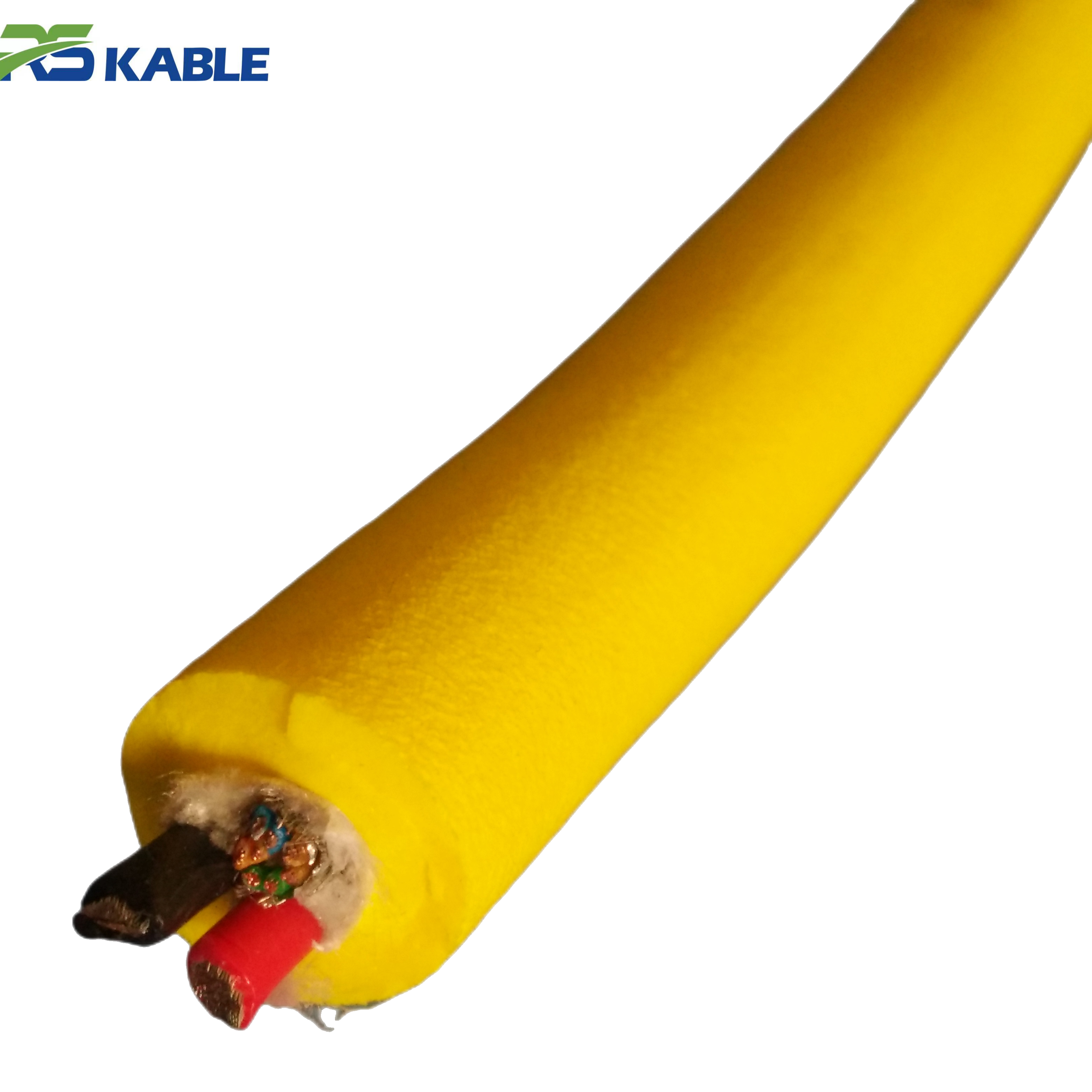

The Fundamental Problem: Resistance Scales with Length

Electricity moving through a copper conductor encounters resistance. That resistance is not a design flaw — it is a material property, governed by:

Ohm’s Law applied to conductors: V_drop = I × R_total   where   R_total = ρ × (2L / A)

Breaking this down for a practical ROV context: ρ is the resistivity of copper (0.0171 Ω·mm²/m at 20°C), L is the one-way tether length in metres, A is the cross-sectional area of the conductor in mm², and the factor of 2 accounts for the round trip — current travels down one conductor and returns along another. Double the tether length, double the resistance. Double the current draw, double the voltage drop. These are linear relationships with no exceptions.

Here is what those relationships look like at a real-world operating point. Consider a 300 m tether with 2.5 mm² copper conductors powering a vehicle drawing 6 A under normal survey load:

Worked example — 300 m tether, 2.5 mm² conductors, 6 A load:

Table 1. Voltage drop calculation — 300 m, 2.5 mm² copper, 6 A. Conductor temperature assumed 20°C; actual values will be higher under load.

Twenty-three volts at the vehicle on a 48 V system is not marginal — it is a system that cannot function reliably. Yet this exact scenario appears repeatedly in the field, because no one ran the numbers before specifying the cable.

Four Compounding Factors Engineers Routinely Miss

The basic formula is well known. What is less appreciated is that several real-world factors conspire to make the actual voltage drop significantly worse than the textbook calculation suggests.

1. Peak load, not average load, sets the minimum voltage

An ROV’s power draw is not constant. During a normal inspection dive, a vehicle might average 4–5 A — but when two thrusters engage simultaneously to correct a current-induced drift, instantaneous current can spike to 12–15 A for 2–3 seconds. The minimum voltage at the vehicle occurs precisely at these spike moments. A voltage budget built on average consumption will appear to pass while the vehicle actually browns out under dynamic load. All load planning must use verified peak values, not nameplate ratings and never averages.

2. Conductor temperature raises resistance

Copper’s resistivity increases at roughly 0.393% per °C above the 20°C reference value. A tether carrying significant current will self-heat. In a tightly spooled drum configuration where the inner turns cannot dissipate heat efficiently, conductor temperature can reach 55–70°C under sustained load — raising resistance by 14–20% above the datasheet figure. On a tight-margin system, that increment alone can push the vehicle below minimum operating voltage.

3. Connector and termination losses accumulate

Each wet-mate or dry-mate connector pair in the power path introduces additional resistance — typically 8–20 mΩ per mated contact pair in good condition, rising significantly with wear, contamination, or corrosion. A system with four connector pairs in the power circuit adds 64–160 mΩ of serial resistance before accounting for any deterioration. At 12 A peak, that range represents 0.8–1.9 V of additional drop. Small in isolation; significant when stacked against an already thin margin.

4. Cable aging degrades performance progressively

Stranded copper conductors in dynamic tether applications experience micro-cracking of individual strands over their operating life. As strands break, the effective cross-sectional area decreases and resistance climbs. A tether that passed its voltage budget calculation when new may fail the same calculation after two seasons of intensive use — without any single event triggering the degradation. This is why annual conductor resistance checks are a maintenance best practice, not an optional procedure.

Field note: In the Norwegian offshore wind case referenced in the introduction, tether conductor temperature under load measured 61°C on the drum — versus the 20°C assumed in the original design calculation. This single correction accounted for 9 V of the 14 V deficit we identified. The cable was otherwise undamaged and within original spec.

Building a Voltage Budget: A Field-Proven Methodology

A voltage budget is a simple document that maps every volt from the surface supply to the vehicle’s minimum acceptable input. It is the single most effective tool for catching power delivery problems before deployment — and the most consistently skipped step in ROV system commissioning.

The methodology below is the same one we apply to every new tether specification and system integration project. It takes roughly 30 minutes to complete and has prevented more field failures than any other single design review step.

Step 1 — Establish peak load current from bench measurements

Do not use nameplate ratings. Connect the ROV to a calibrated DC power supply and a clamp meter on the supply positive lead. Run through every worst-case scenario: all thrusters at full thrust simultaneously, lights at full intensity, manipulator engaged if fitted, sonar initialising. Log the peak current reading at each scenario and at the combination of all systems. Add 15% to the highest measured value as your planning load. This is your I_peak.

Step 2 — Obtain actual conductor resistance from the tether datasheet

Responsible tether manufacturers publish DC resistance per unit length for each conductor size, typically expressed in Ω/km at 20°C. Convert to Ω/m (divide by 1000) and calculate round-trip resistance: R_tether = (datasheet Ω/m) × 2 × tether_length_m. If the datasheet value is unavailable, use the IEC 60228 Class 5 stranded conductor tables as a reference, not the theoretical resistivity formula alone — manufacturing tolerances make the theoretical value optimistic.

Step 3 — Apply temperature correction

If your tether will operate partly spooled or in ambient temperatures above 20°C, apply the temperature coefficient: R_corrected = R_20°C × [1 + 0.00393 × (T_operating − 20)]. For a conservatively designed system, assume 50°C conductor temperature on the drum portion and ambient seawater temperature (4–12°C depending on depth) for the deployed portion. Calculate weighted average based on the proportion of tether length in each condition.

Step 4 — Compile the full voltage budget table

Sum every loss element in the supply chain from the PSU output terminals to the vehicle input terminals. The table should show a running voltage balance at each stage:

Table 2. Complete voltage budget — 400 m tether, 4 mm² conductors (corrected for 55°C drum temp), 15 A peak load, 48 VDC supply. Margin of 2.6 V is acceptable but tight; 5 V minimum recommended for long-term reliability.

A positive margin confirms the design will work. A negative margin — or a margin below 3–4 V — requires one of three responses: increase conductor cross-section, increase transmission voltage, or reduce peak load demand. The first option means re-specifying the tether. The second is discussed below. The third is rarely practical without compromising vehicle capability.

High-Voltage Transmission: When the Math Forces Your Hand

At tether lengths beyond 150 m and with modern work-class ROV power budgets of 1,500–5,000 W, low-voltage DC transmission (12–48 VDC) becomes arithmetically untenable without conductors so large they make the tether rigid and unmanageable. The professional solution is high-voltage transmission with DC-DC conversion at the vehicle.

The principle is straightforward. Power is the product of voltage and current (P = V × I). For a fixed power delivery requirement, raising the transmission voltage proportionally reduces the transmission current. Voltage drop in the tether scales with current (V_drop = I × R), so halving the current cuts the drop by half — on the same cable. More dramatically:

Scaling example: Delivering 2,000 W at 48 VDC requires 41.7 A. At 240 VDC it requires 8.3 A — one fifth of the current. Resistive losses scale with the square of current (P_loss = I² × R), so the 240 V system dissipates 1/25th of the thermal energy in the tether conductors, and the voltage drop is reduced by a factor of five on the same cable.

Work-class ROV systems routinely transmit at 250–600 VDC for this reason. DC-DC converters aboard the vehicle step the voltage down to the distribution voltages required by thrusters, lighting, and control electronics — typically 24, 48, or 12 VDC. The converter adds complexity and cost, and introduces a failure mode that must be managed. But for any system operating beyond 200 m at meaningful load, the cable weight and handling penalties of low-voltage high-current transmission are far worse than the converter overhead.

Safety note: Systems transmitting above 60 VDC fall within the IEC 62368-1 ‘hazardous energy source’ classification. This requires specific insulation standards, interlock designs, and operational procedures. All personnel working with the topside equipment must be trained accordingly. This is a non-negotiable engineering control, not an optional precaution.

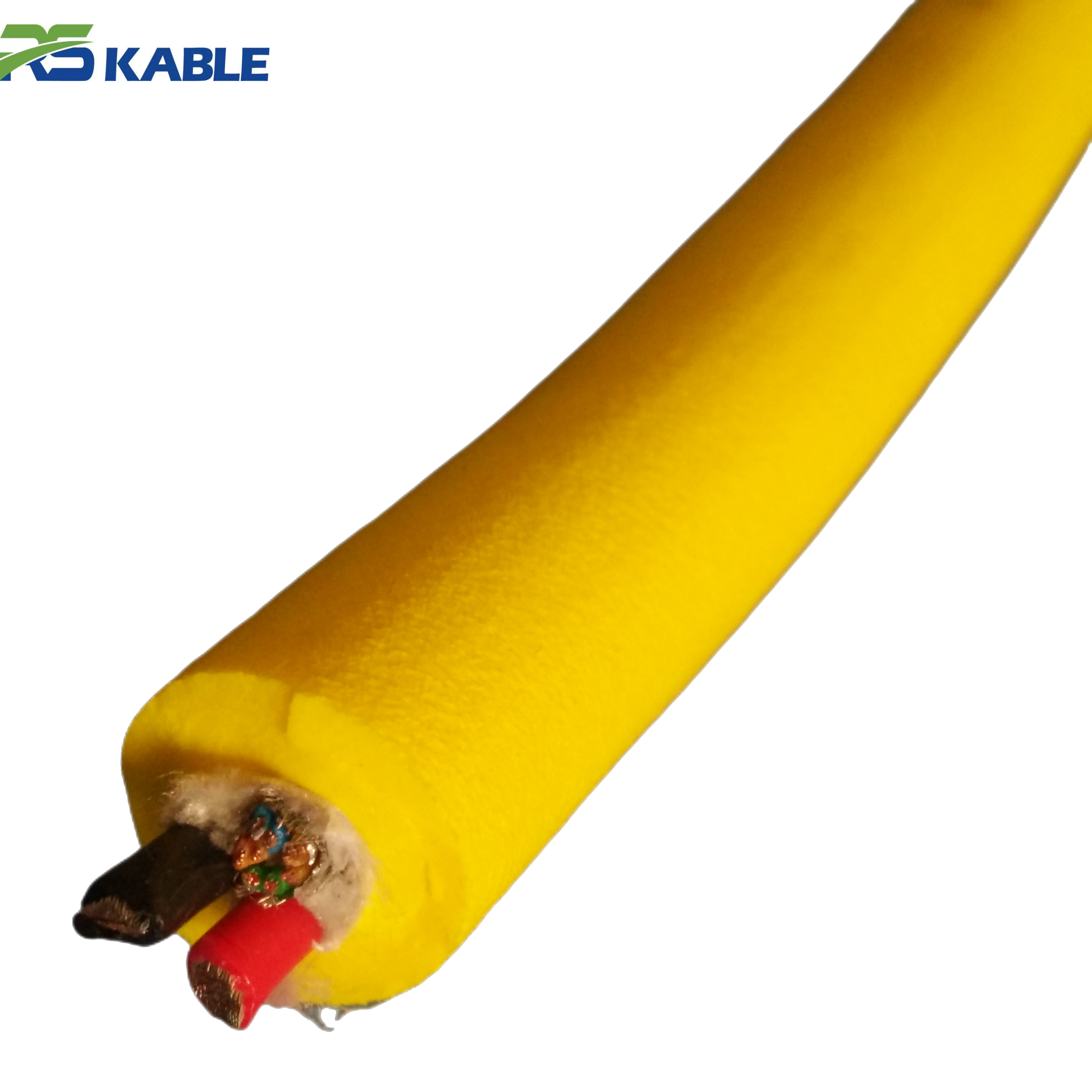

Conductor Sizing in Practice: What the Numbers Actually Mean

The relationship between conductor area and voltage drop is inverse and nonlinear in its practical implications. Doubling the conductor cross-section halves the resistance — but the cable diameter increases approximately as the square root of the area ratio, and the weight per metre increases roughly proportionally with area. These relationships create hard trade-offs for tether designers.

From field experience across multiple ROV programs, these conductor sizing guidelines hold reliably for 48 VDC low-voltage systems:

Table 3. Practical conductor sizing guidance for 48 VDC systems with ≤10% voltage drop target. HV = high-voltage DC transmission (≥150 VDC). Values assume 20°C conductor temperature; derate one size for drum-spooled operation under sustained load.

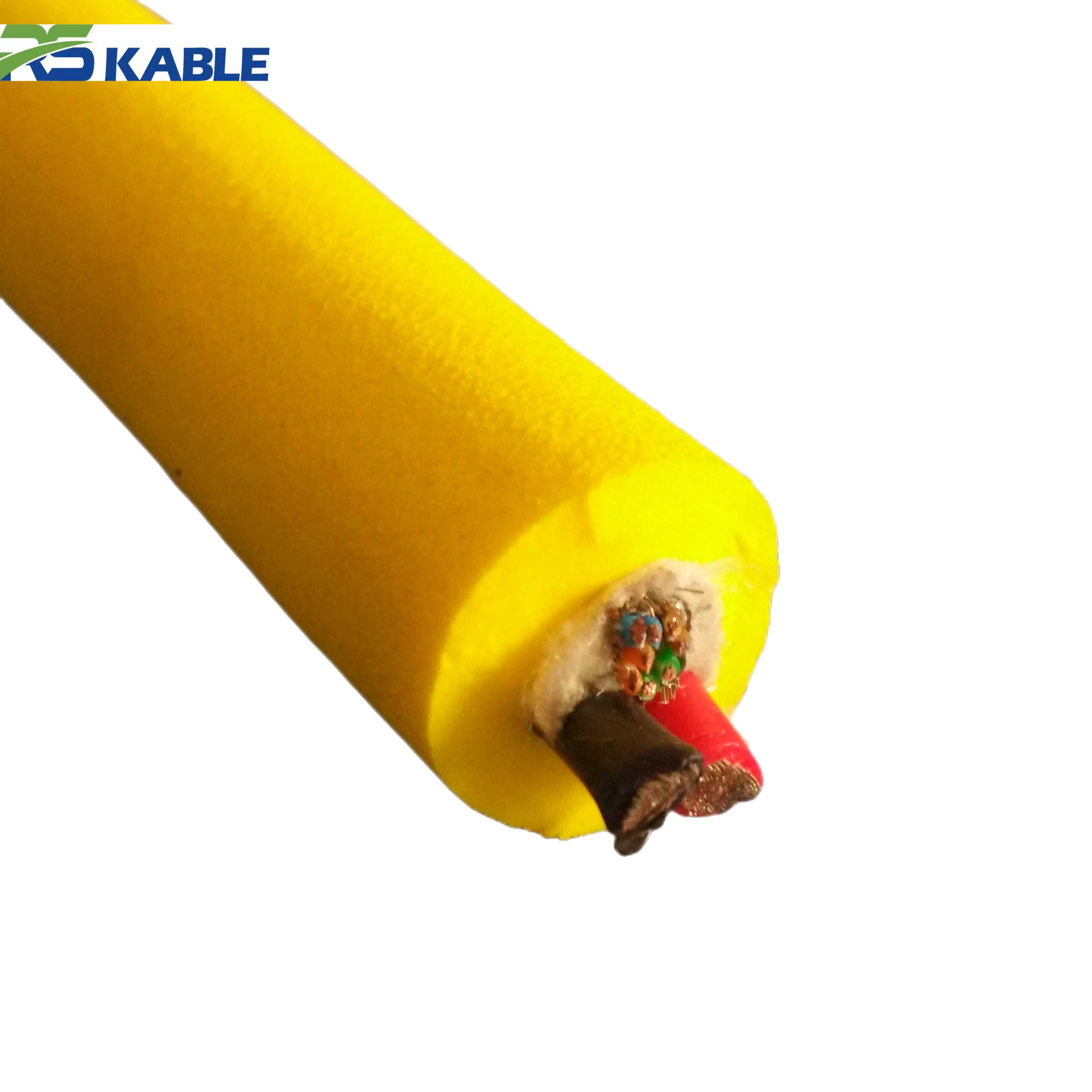

One implication of this table that surprises operators: at 300 m with moderate load, you need 6 mm² conductors in a 48 VDC system. A standard 6 mm² stranded copper conductor has an outer diameter of approximately 3.6 mm. Two such conductors in a tether with adequate insulation, shielding, and jacket produce a cable outer diameter of 16–20 mm and a weight-in-water that significantly affects the ROV’s neutral buoyancy and deployment drum capacity. This is the practical pressure that drives system designers toward high-voltage transmission well before the purely electrical argument becomes decisive.

Pre-Deployment Checklist: Eight Questions Before Every Dive

The following checklist compresses everything above into a practical verification sequence. Run it before the first deployment with any new tether or after any modification to the vehicle’s electrical load profile.

1. Peak load verified? Measured from bench test, not nameplate. Includes all simultaneous worst-case loads plus 15% margin.
2. Conductor resistance confirmed? Either from manufacturer datasheet or from a 4-wire (Kelvin) resistance measurement of the actual tether. Not calculated from theoretical resistivity alone.
3. Temperature correction applied? If operating with any tether on the drum under load, conductor temperature correction applied at 0.393%/°C.
4. Full voltage budget table completed and signed off? Every element from PSU output to vehicle input terminals, with minimum 4 V positive margin at peak load.
5. Connector condition verified? All mated contacts inspected for corrosion, pin damage, or seal degradation. Resistance measured across each pair if any doubt.
6. Vehicle minimum input voltage confirmed from documentation? Not assumed. Wide-input-range DC-DC converters have specific minimum thresholds; narrow-range units can fail within specification.
7. Any recent cable repair or re-termination? Repair joints in the conductor path add resistance. Budget table must include any joint resistance values or conservative estimates.
8. Previous voltage budget on file for comparison? A rising voltage drop trend between deployments, with no load change, indicates conductor degradation. Investigate before the next dive.

Getting It Right the First Time

The offshore wind ROV that opened this article was back in service within two days of our assessment. The fix required no new equipment: the surface PSU was adjusted to 60 VDC (within the vehicle’s input tolerance), the voltage budget was recalculated with the corrected temperature coefficient, and the operating procedures were updated to reduce simultaneous thruster activation during low-speed station-keeping. Total parts cost: zero. The cost of the three previous inspection calls and three weeks of delayed survey operations was considerably higher.

Every hour spent on a voltage budget before deployment saves multiples of that time in field troubleshooting. The physics does not change between the office and the ocean. Run the numbers in advance, apply conservative assumptions, verify your inputs with real measurements rather than estimates, and leave genuine margin in the design. That is not over-engineering — it is the minimum professional standard for any system where a power failure means a vehicle on the seafloor.

If your operation is approaching a tether length or load threshold where the numbers become tight, the decision point between heavier conductors and high-voltage transmission architecture deserves early attention. The right answer depends on your specific vehicle, depth, and deployment logistics — and it is worth resolving before the cable is specified, not after it has been manufactured.

Working through a tether specification? Our engineering team provides free voltage budget reviews for new cable inquiries — including conductor sizing recommendations, transmission voltage guidance, and depth-rated tether specifications. Contact us with your tether length, depth rating, and vehicle power budget to get started.

Frequently Asked Questions

Q1: How much voltage drop is acceptable in an ROV tether?

There is no universal percentage — the correct answer depends entirely on the minimum input voltage tolerance of your vehicle’s onboard power conversion electronics. Some systems use wide-input-range DC-DC converters that accept input voltages from 18 to 75 VDC, tolerating very large drops gracefully. Others use narrow-range regulators that fail if input drops below 38 VDC on a 48 V nominal system. Obtain the actual minimum input voltage specification from your vehicle manufacturer, then design your tether and supply voltage so the worst-case end-of-tether voltage at peak load stays at least 4–5 V above that minimum. Percentage rules of thumb (“keep it under 10%”) exist but should always be validated against the actual hardware specification.

Q2: Why does the voltage drop get worse when the tether is partly on the drum?

Two reasons compound one another. First, only the deployed portion of the tether contributes to the electrical circuit length — but the portion remaining on the drum is carrying the same current and dissipating heat into a confined space with poor thermal convection. This raises conductor temperature in the spooled section above what you would see in a fully deployed cable immersed in seawater. Higher temperature means higher resistivity, which means higher resistance per metre in that section. Second, as you deploy more tether, the circuit length increases linearly — so voltage drop at the vehicle increases with deployment depth. Maximum voltage drop occurs at maximum depth with maximum load, which is precisely the operating condition where your vehicle most needs full power.

Q3: Can I just increase the surface PSU voltage to compensate for tether drop?

Yes, within limits — and this is often the fastest solution when an existing system has insufficient margin with the installed tether. The vehicle’s maximum input voltage specification sets the ceiling. If the vehicle accepts 18–75 VDC and you are currently supplying 48 V, you can raise the PSU to 60 or 65 V, which shifts the entire voltage budget upward and restores margin at the vehicle end. What you cannot do is raise voltage above the vehicle’s rated maximum, as this risks damage to onboard electronics. Verify the vehicle’s absolute maximum input rating before adjusting the PSU, and confirm the tether’s voltage rating accommodates the new level. This approach is a valid operational adjustment, not a substitute for a properly sized conductor in a new tether specification.

Q4: How do I measure actual tether conductor resistance in the field?

Use a 4-wire (Kelvin) resistance measurement to eliminate contact resistance from the measurement. Connect a calibrated digital multimeter or a dedicated low-resistance ohmmeter to the two ends of a conductor loop — shorting the far end of one conductor to the return conductor and measuring resistance at the near end. This measures both conductors in series (round-trip resistance), which is exactly what your voltage budget equation requires. Compare the measured value to the datasheet specification for your conductor size and length. A value more than 10% above specification warrants investigation: look for a damaged section, a corroded splice, or a partially open connection. Repeat annually and after any tether incident.

Q5: At what tether length should I switch from low-voltage to high-voltage DC transmission?

The crossover point depends on your vehicle’s power budget, but a practical rule: if the minimum conductor cross-section required to maintain acceptable voltage drop at 48 VDC would produce a tether that is too heavy or stiff for your deployment system, high-voltage transmission is the correct architecture. For most work-class ROVs (750 W and above), this threshold falls somewhere between 150 m and 250 m. For observation-class vehicles with modest power budgets (under 300 W), low-voltage transmission may remain viable to 300 m or beyond with appropriate conductor sizing. The decision should be made by running voltage budget calculations for both architectures and comparing the resulting tether specifications — not by applying a fixed depth rule.

Q6: Does the type of insulation material affect voltage drop?

Insulation material does not directly affect DC voltage drop — that is determined entirely by conductor material, cross-section, and length. However, insulation affects the cable’s rated voltage (which must exceed your transmission voltage with appropriate margin), its capacitance per unit length (relevant for signal lines sharing the tether), and its thermal performance (which indirectly affects conductor temperature and therefore resistance). Polyethylene insulation has lower dielectric loss than PVC at equivalent wall thickness, making it the preferred choice for the signal pairs in a high-voltage tether. For the power conductors, insulation selection is primarily a voltage-rating and mechanical durability decision rather than an electrical efficiency one.
