TVVB2G Flat Festoon Cable with Fiber Optic | Flexible Multi‑Core Power, Data & Signal Cable
A reliable hybrid solution for delivering power and high-speed data in one durable flat cable, ideal for cranes, hoists, and moving machinery.
-
Hybrid design combining power, data, and fiber optics
-
Proven for millions of flex cycles in demanding festoon systems
-
Compact flat profile reduces weight and simplifies installation
-
CE compliant and customizable for European projects
-
Durable sheath for indoor or outdoor use
-
Manufactured by specialists in high-flex industrial cables
TVVB2G Flat Festoon Cable with Fiber Optic | Flexible Multi-Core Power, Data & Signal Cable
Reliable Power & Data Transmission for Industrial Applications
Shanghai Rousheng Wire and Cable Co., Ltd. has spent years perfecting high-flex cables for tough industrial settings. The TVVB2G Flat Festoon Cable is the ideal solution when you need power, control signals, and high-speed data combined into a single reliable package.
Running separate cables for power and fiber optic lines can add weight, complicate setups, and increase failure risks. Our TVVB2G solves this problem by integrating all functionalities into one flexible flat cable designed for constant motion, ensuring reliability and reduced clutter.
Why Choose the TVVB2G Flat Festoon Cable?
-
All-in-one design: Combines power, data, and fiber optic signals for a cleaner, more efficient installation.
-
Built for movement: Handles millions of flex cycles without wear in demanding festoon systems.
-
Zero interference: Fiber optic keeps data signals clear, even near high-power lines.
-
Compact and tough: Flat profile allows easy stacking, with a sheath that resists oil, abrasion, and weather.
Typical Applications
-

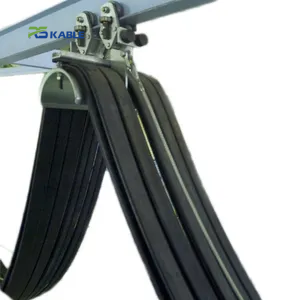

Overhead Cranes: For factories and warehouses requiring reliable power and data.
-
Gantry Systems: Essential for automated retrieval and processing equipment.
-
Port Container Cranes: Heavy-duty handling in shipping yards.
-
Material Handling: For industrial environments across Europe and worldwide.
Technical Specifications
| Feature | Details |
|---|---|
| Cable Type | Flat hybrid festoon with integrated fiber optic |
| Power Conductors | Fine-stranded copper with special compound insulation |
| Fiber Optic | Multimode (50/125 µm typical), buffered for flex |
| Control Cores | Optional shielded pairs for signal transmission |
| Rated Voltage | 600/1000 V |
| Operating Temperature | -25°C to +80°C (flexing) |
| Min. Bend Radius | 7.5 × cable thickness |
| Outer Sheath | Oil- and UV-resistant PUR or rubber |
| Compliance | CE marked, RoHS compliant, optional UL/CSA |
| Core Options | Customizable – common setups 8–24 power cores + 2–4 fiber elements |
Frequently Asked Questions
Q: Is the TVVB2G suitable for outdoor cranes?
Yes, the sheath is UV-resistant and designed to withstand moisture and temperature fluctuations, making it perfect for outdoor use in port environments.
Q: How well does the fiber optic hold up under constant bending?
We use specialized fibers and buffers specifically designed for high-cycle use, ensuring stable data transmission over many years in dynamic festoon setups.
Q: Can I get a custom core configuration?
Absolutely! We can adjust the number of power, control, and fiber cores to meet your project’s specific requirements.
Q: What is the service life of the cable?
With proper installation and trolley design, users typically experience a service life of 5–10 years or several million cycles before replacement is needed.
Q: Does it meet European standards?
Yes, all standard versions are CE marked and comply with RoHS standards. We can also provide additional certifications as needed.
