TRVVSP 2/4/6/8/10/12/16-Core Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable, PVC-Insulated, 600V Rated

TRVVSP 2/4/6/8/10/12/16-Core Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable

PVC-Insulated, 600V Rated

The TRVVSP series Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable is designed for servo motor feedback and motion control systems operating under continuous movement. It is engineered to maintain stable signal transmission and mechanical reliability in drag-chain, robotic, and CNC applications where repeated bending and electrical interference are unavoidable.

Manufactured by Shanghai Rousheng Wire & Cable Co., Ltd., this cable reflects long-term expertise in high-flex drag-chain and specialty industrial cables developed specifically for automation and motion control environments.

Built for Continuous Motion and Long Service Life

In servo-driven equipment, cable failure is often caused not by voltage stress, but by mechanical fatigue and signal instability. Repeated bending, vibration, and friction inside cable carriers gradually damage standard control cables, leading to encoder errors and unexpected downtime.

The TRVVSP Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable is engineered to address these challenges through a balanced combination of flexible conductor design, optimized twisting geometry, and layered shielding.

Key Performance Advantages

High Flexibility for Drag-Chain Applications

The cable uses a flexible conductor structure designed to withstand continuous bending. Internal stress is reduced during movement, helping to extend service life in drag-chain and moving-axis installations.

Stable Servo Encoder Signal Transmission

Precision twisted-pair construction maintains consistent impedance for differential encoder signals. This helps preserve signal accuracy in high-speed servo feedback systems where timing and noise sensitivity are critical.

Effective Shielding Against EMI

Each twisted pair is protected by aluminum foil shielding, combined with an overall braided shield. This dual shielding structure reduces cross-talk between signal cores and suppresses external electromagnetic interference from motors and power cables.

Industrial PVC Insulation, 600V Rated

Industrial-grade PVC insulation provides electrical safety and compatibility with common North American servo and automation systems. The outer jacket also offers good resistance to abrasion and general industrial wear.

Typical Applications

This Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable is widely used in:

• Industrial robots and robotic arms

• Servo motor encoder feedback systems

• CNC machines and machining centers

• Automated production and assembly lines

• Drag-chain and cable carrier systems

In these applications, stable encoder feedback directly affects positioning accuracy, repeatability, and overall equipment reliability.

Cable Construction Overview

Conductor

High-quality copper conductors designed for flexibility and low electrical resistance, supporting reliable signal transmission under dynamic motion.

Twisted Pair Structure

Matched twisted pairs improve noise immunity and help maintain consistent electrical characteristics for encoder signals.

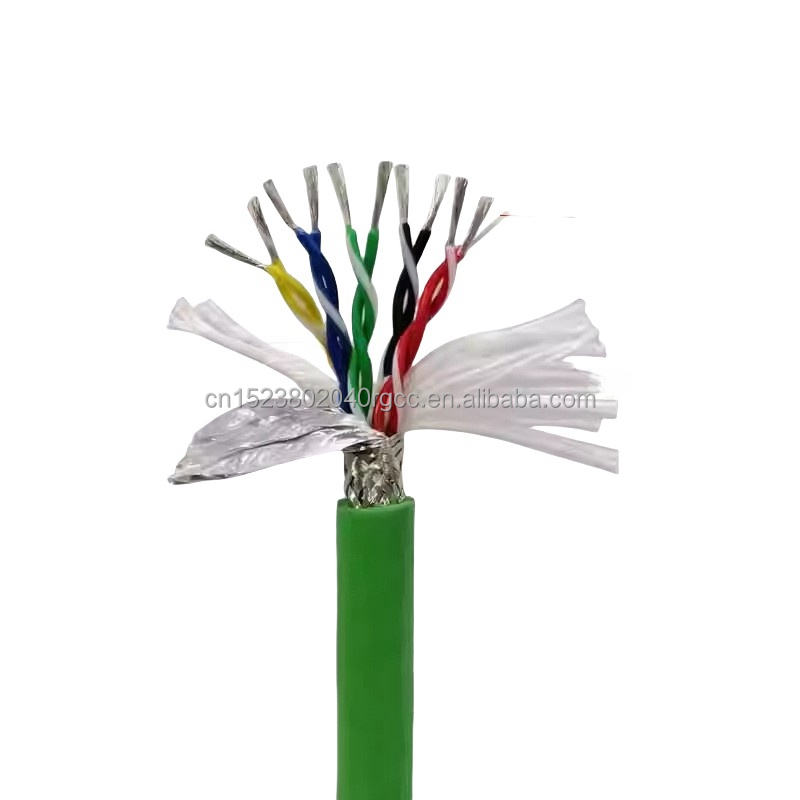

Shielding System

• Individual aluminum foil shielding for each signal pair

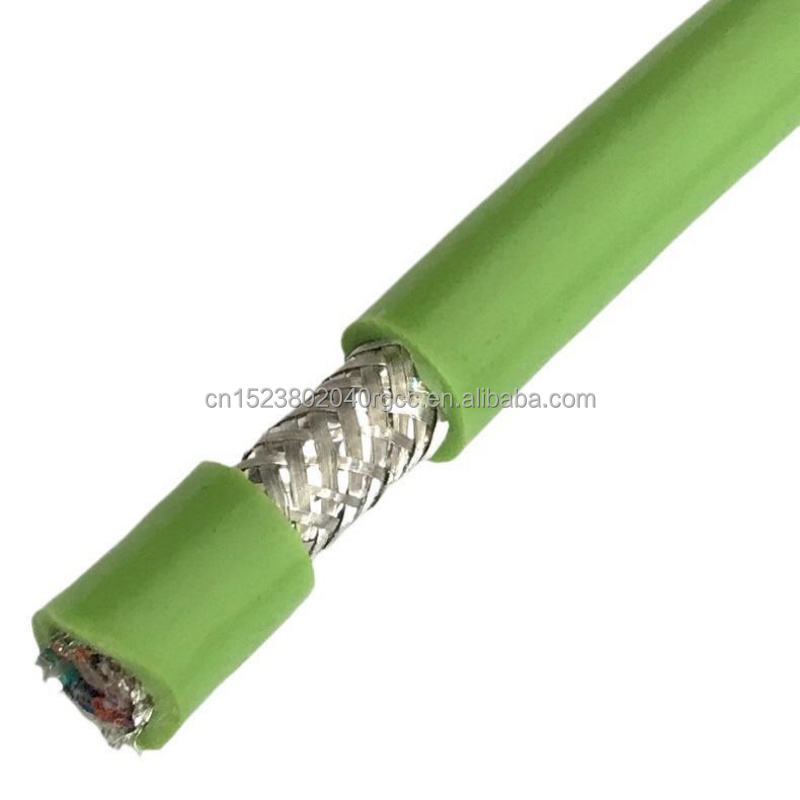

• Overall braided shield for comprehensive EMI protection

Outer Jacket

Flexible industrial PVC jacket optimized for continuous movement inside drag chains, with good abrasion resistance.

Enhanced Technical Specifications

Specifications may be adjusted based on specific application requirements.

Model Selection Guidance

2–4 Core Versions

Suitable for basic encoder feedback and compact servo systems with limited signal requirements.

6–8 Core Versions

Commonly used in standard servo motors requiring multiple feedback or control signals.

10–16 Core Versions

Designed for complex servo systems with integrated encoder, control, or auxiliary signals in a single cable.

Shanghai Rousheng provides technical support to help customers select the appropriate configuration based on motion conditions and system design.

Frequently Asked Questions

Is this cable suitable for continuous drag-chain operation?

Yes. The TRVVSP series is designed for repeated bending in drag-chain systems when installed within the recommended bend radius.

Why is twisted-pair construction important for encoder cables?

Twisted pairs help reduce electromagnetic interference and maintain signal integrity, which is critical for accurate servo encoder feedback.

Does the shielding affect cable flexibility?

The shielding structure is optimized to balance EMI protection and mechanical flexibility, making it suitable for dynamic motion applications.

Can the cable be customized?

Yes. Core count, conductor structure, jacket thickness, length, color, and marking can be customized to match specific equipment requirements.

Manufacturing Expertise from Shanghai Rousheng

Shanghai Rousheng Wire & Cable Co., Ltd. focuses on the development and production of high-flex drag-chain cables and specialty industrial cables, offering more than 100 cable types for automation, robotics, and motion control systems.

Each Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable is manufactured under controlled processes to ensure consistent electrical performance, mechanical durability, and long-term reliability.

Customization & OEM Support

We support OEM and ODM projects, including:

• Core count and conductor size customization

• Shielding structure optimization

• Jacket material and thickness selection

• Cable length, color, and printing

Our goal is not only to supply a cable, but to support stable, long-term operation of your automation equipment.

The TRVVSP Flexible Drag-Chain Cable, Twisted Pair Shielded Servo Encoder Cable provides a dependable solution for servo encoder feedback in dynamic industrial environments. With its flexible structure, layered shielding, and 600V-rated PVC insulation, it delivers reliable performance where motion accuracy and durability matter most.
