Subsea Pipeline Inspection | ROV Cable | High Tensile & Pressure Resistance | Stable Power and Signal
• Conductor: Multi-stranded tinned copper designed for high tensile strength and stable power transmission in demanding subsea pipeline inspections.
• Jacket: Abrasion-resistant and pressure-tolerant outer sheath, providing long-term protection against mechanical wear and harsh underwater conditions.

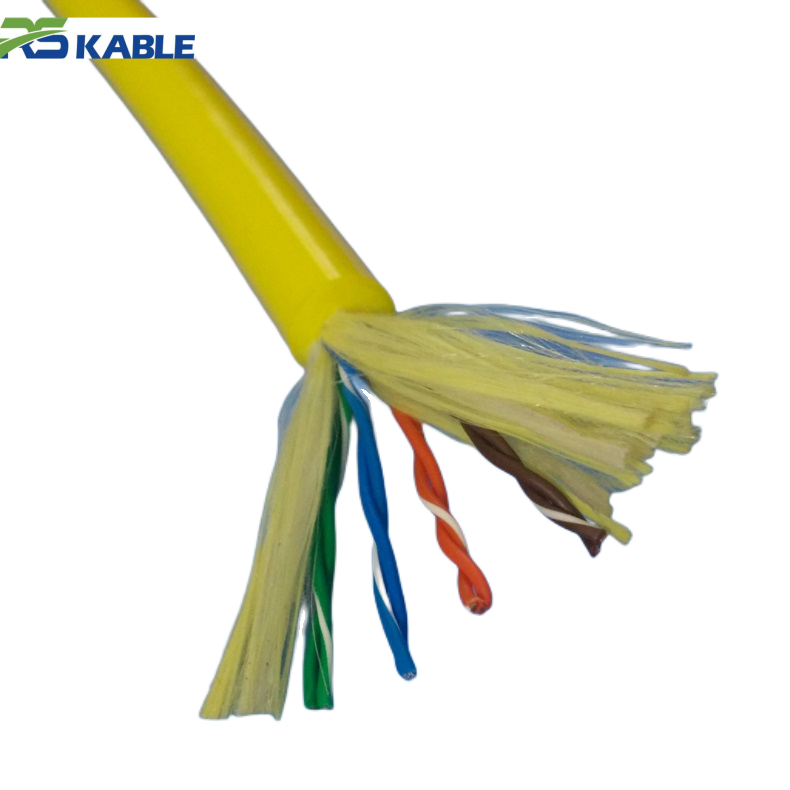

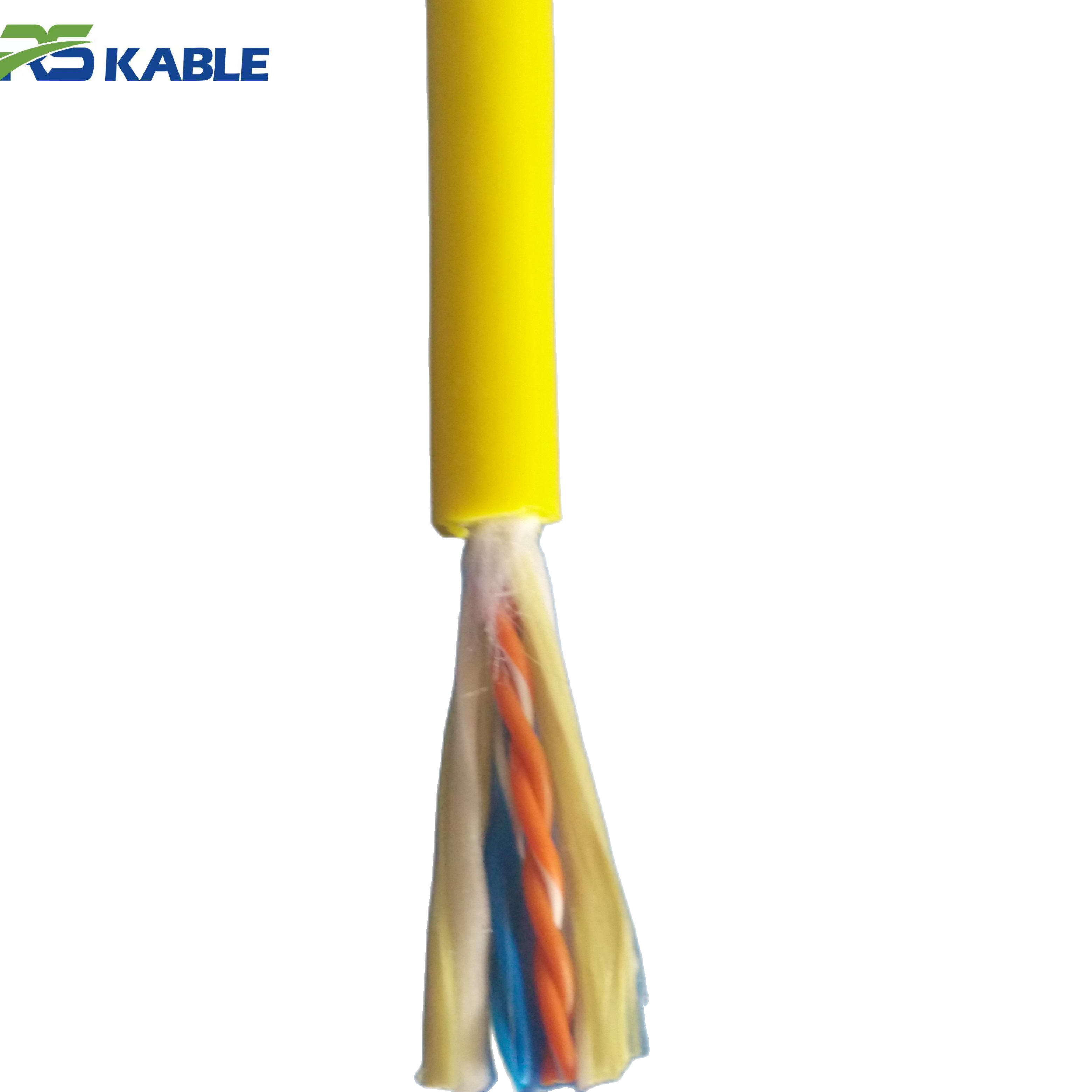

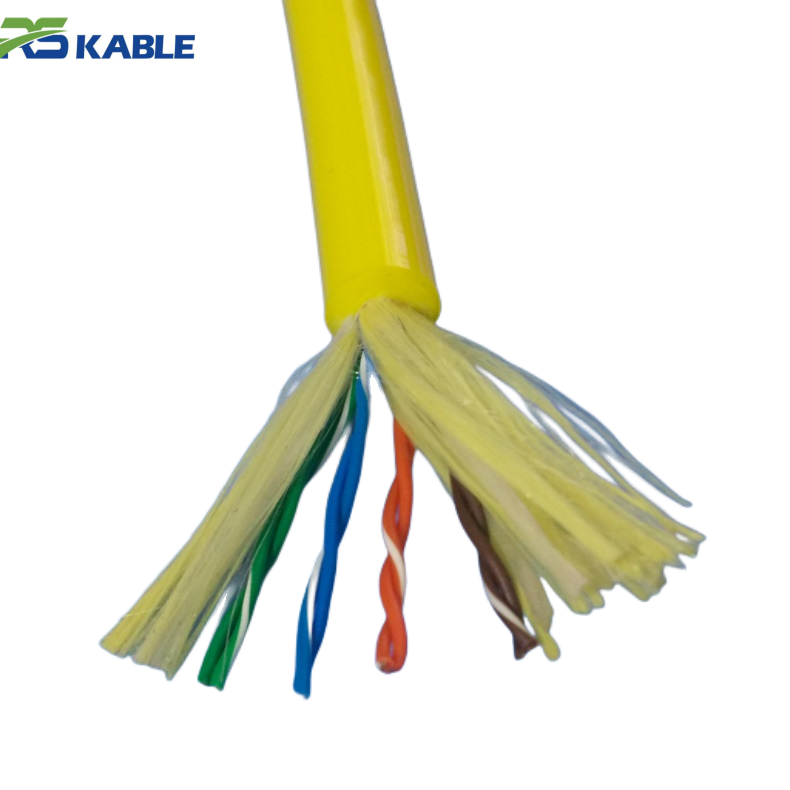

• Structure: Reinforced core with hybrid power and fiber elements, ensuring neutral buoyancy control, anti-twist performance, and reliable signal integrity.
• Performance: Maintains stable power and data transmission under deepwater pressure, with excellent flexibility for ROV maneuvering and extended mission endurance.
• Environment: Optimized for deepwater pipeline inspection and subsea operations, resistant to corrosion, abrasion, and hydrostatic pressure up to rated depths.
Subsea Pipeline Inspection | ROV Cable | High Tensile & Pressure Resistance | Stable Power and Signal
Maximize subsea inspection efficiency with our specialized ROV Cable, designed for pipeline operations where reliability, tensile strength, and pressure resistance are critical. Engineered for stable power and high-fidelity signal transmission, it ensures optimal ROV performance in demanding offshore environments.
Highlights & Benefits
-
Neutral Buoyancy Design: Reduces tension and drag on ROVs, improving maneuverability.
-
High Tensile Strength: Supports dynamic loads during deployment and retrieval.
-
Pressure-Resistant Construction: Operates safely at depths up to 6,000 meters.
-
Stable Power & Signal Transmission: EMI-shielded conductors maintain data integrity.
-
Abrasion & Corrosion Protection: TPU/PUR outer jackets extend cable service life.
Product Lineup
ROV Cables for Subsea Pipeline Inspection:
| Product | Key Feature | Conductor Setup | Max Depth | Outer Diameter | Load Capacity |
|---|---|---|---|---|---|
| ROV-PI-4P | 4-core power, flexible | 4 × 2.0 mm² tinned copper | 3,500 m | 18.2 mm | 2,200 kg |
| ROV-PI-6H | 6-core hybrid, shielded | 4 × 1.5 mm² + 2 × 0.75 mm² pairs | 4,500 m | 20.0 mm | 2,500 kg |
| ROV-PI-FO | Fiber-optic integrated | 4 × 1.5 mm² + 4–8 fibers | 5,500 m | 22.5 mm | 2,800 kg |
| ROV-PI-XHD | Heavy-duty armor | 6 × 2.5 mm² + shielded pairs | 6,000 m | 25.8 mm | 3,500 kg |
Core Technical Features
-
Conductors: Tinned multi-stranded copper (IEC 60228, Class 5/6)
-
Insulation: Foamed PE/XLPE for neutral buoyancy and electrical stability
-
Fiber Options: Single-mode or multi-mode for high-speed video/data
-
Strength Members: Kevlar/aramid braid for dynamic load support
-
Shielding: Multi-layer foil + braid for EMI protection
-
Outer Jacket: Abrasion-resistant TPU/PUR, seawater-resistant
-
Buoyancy: Neutral in seawater ±0.02 g/cm³
-
Voltage Rating: 300/500V standard, 1kV optional
-
Certification: ISO 9001, RoHS, REACH, optional ABS/DNV approval
Applications
-
Subsea pipeline inspection & maintenance
-
ROV-based offshore infrastructure monitoring
-
Valve and manifold inspection in high-pressure environments
-
Long-range ROV tethering for deepwater operations
-
Fiber-optic enhanced HD video and telemetry
Long-tail search phrases: “ROV cable for 6000m deepwater pipelines,” “high tensile subsea ROV tether,” “pressure-resistant ROV cable for offshore maintenance.”
FAQ – Quick Reference
Q: What is the maximum tensile strength?
A: Up to 3,500 kg depending on model, ensuring safe deployment in strong currents.
Q: Can this cable transmit HD video over long distances?
A: Yes, fiber-optic integrated models provide high-speed, low-loss transmission.
Q: Are custom lengths available?
A: Absolutely. Lengths can be tailored to your ROV deployment requirements.
Q: How resistant is the cable to corrosion?
A: TPU/PUR jackets with EMI shielding and neutral buoyancy materials protect against seawater and abrasion.
Q: Do you provide factory-terminated connectors?
A: Yes, options include SubConn®, SEACON, and custom terminations fully tested.
Ready to Equip Your ROV?
Ensure safe, reliable subsea operations with our ROV Cable. Contact our technical team to select the perfect model, request datasheets, or get a custom quotation.
