PVC Flexible Control Cable for Machinery Wiring | High Flex Life | Flame Retardant Supplier

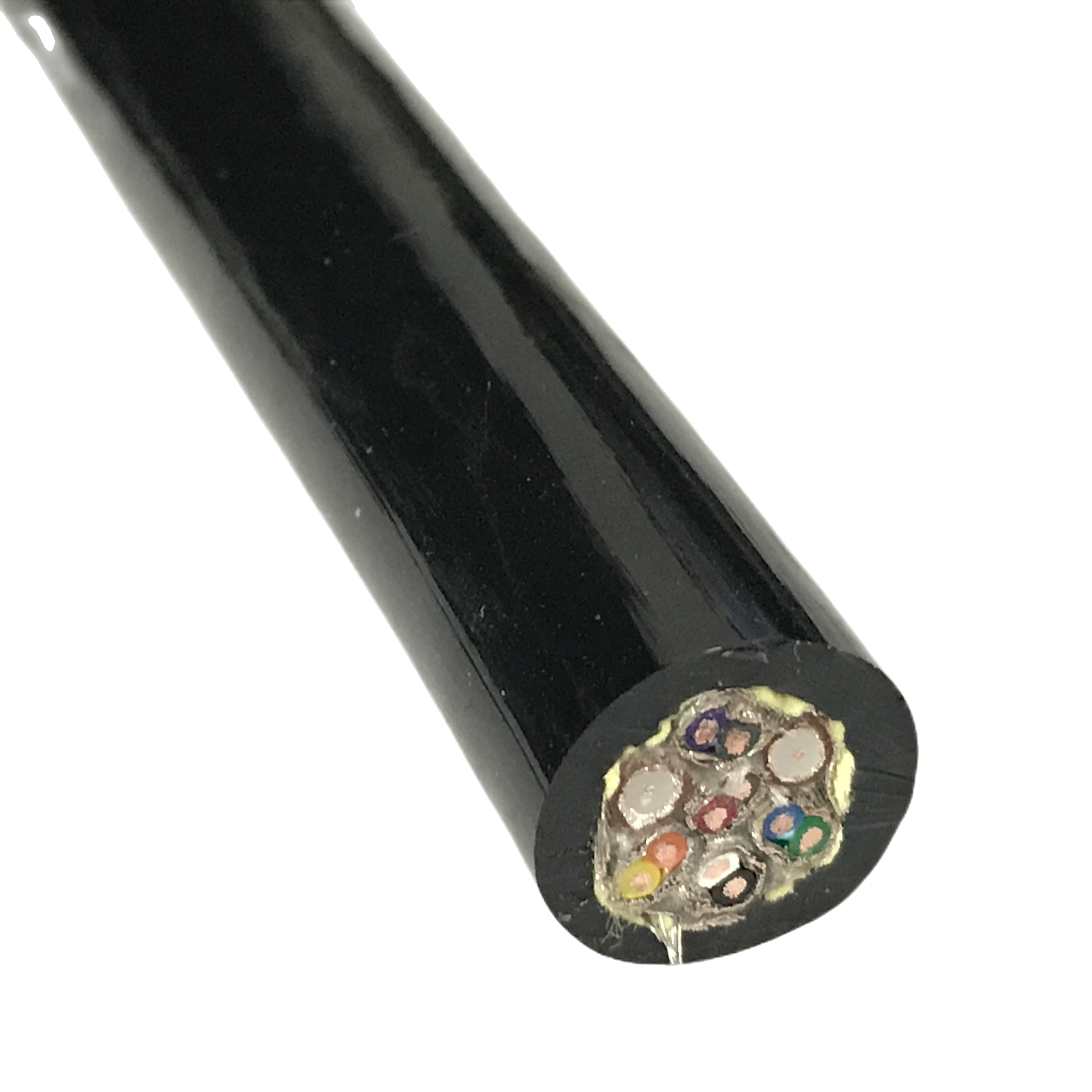

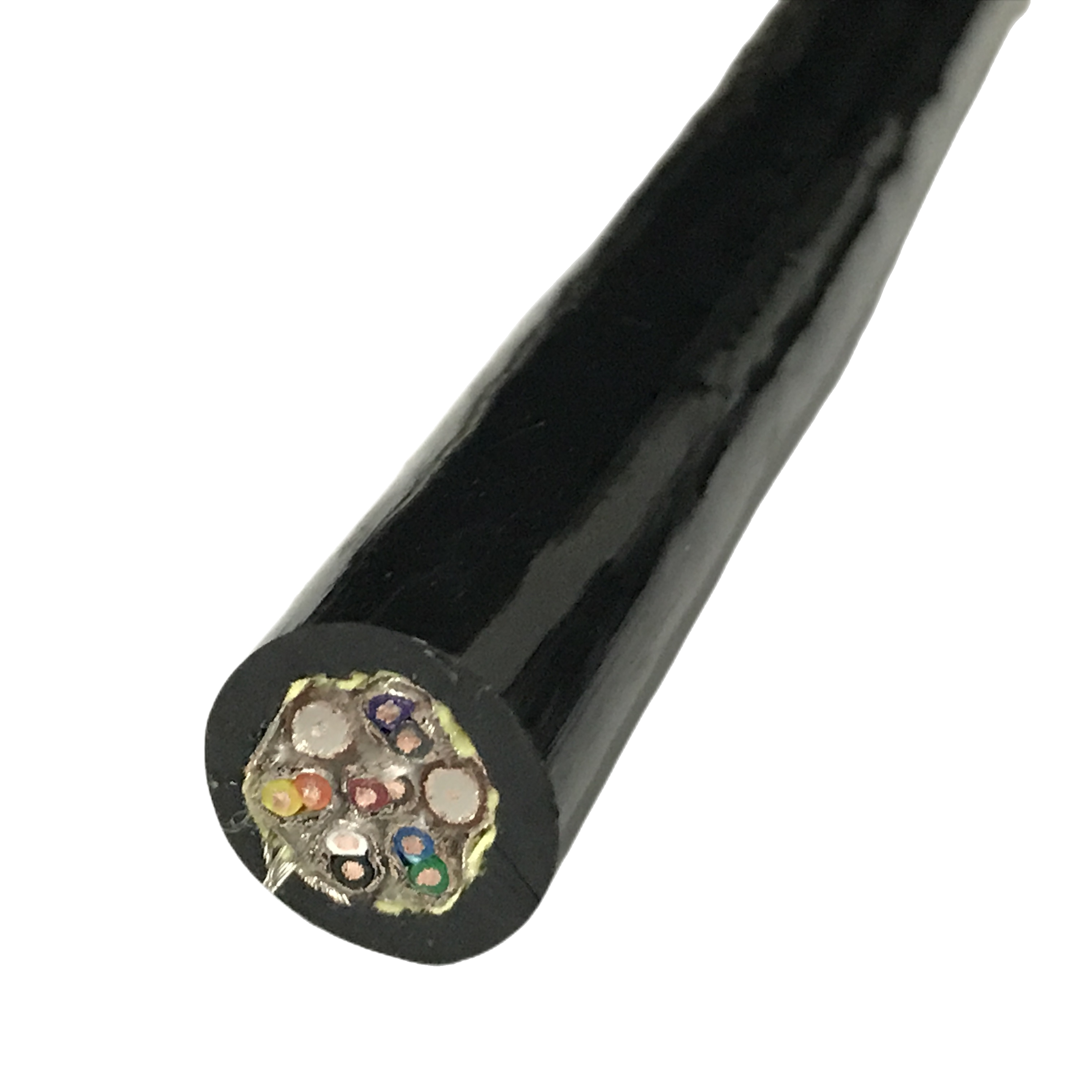

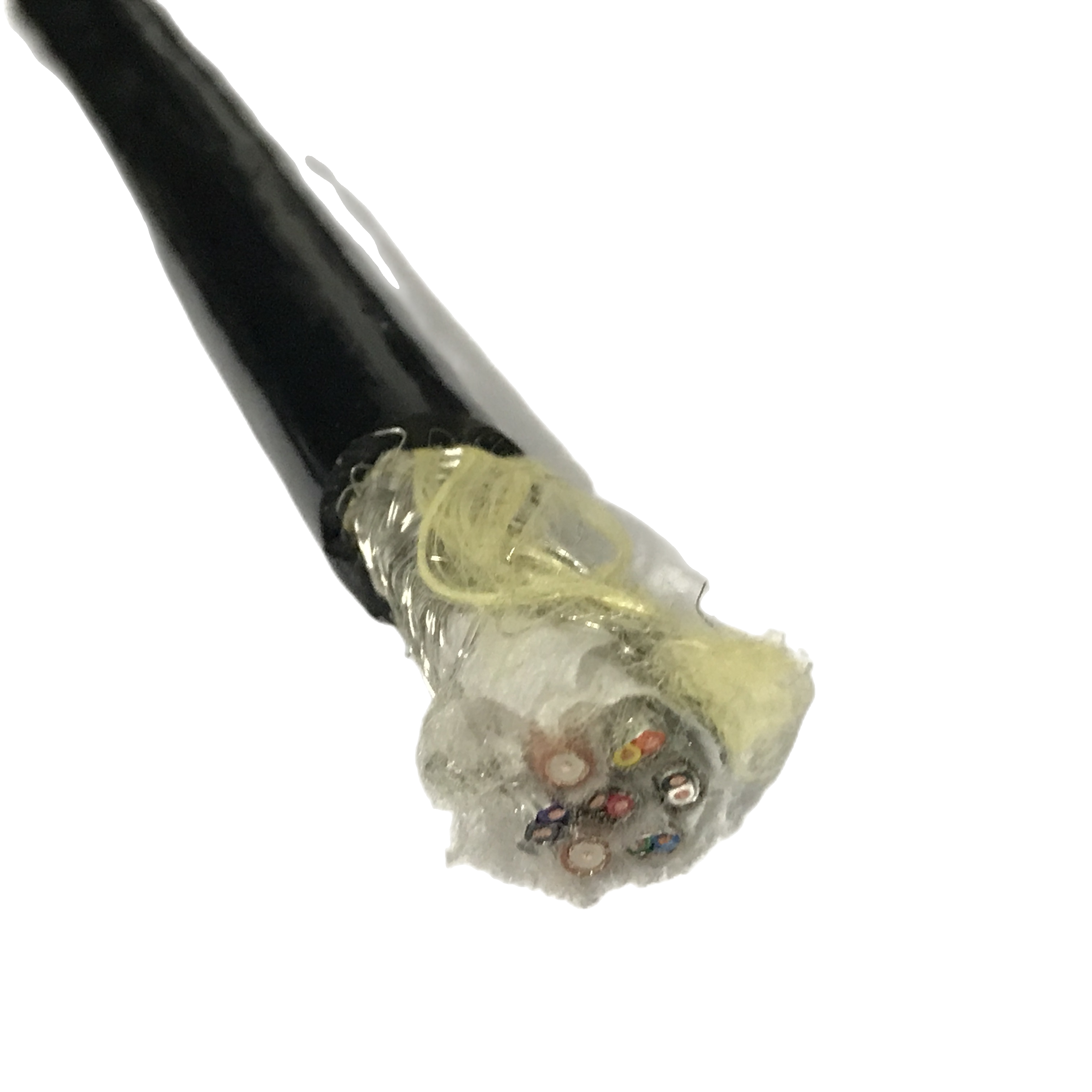

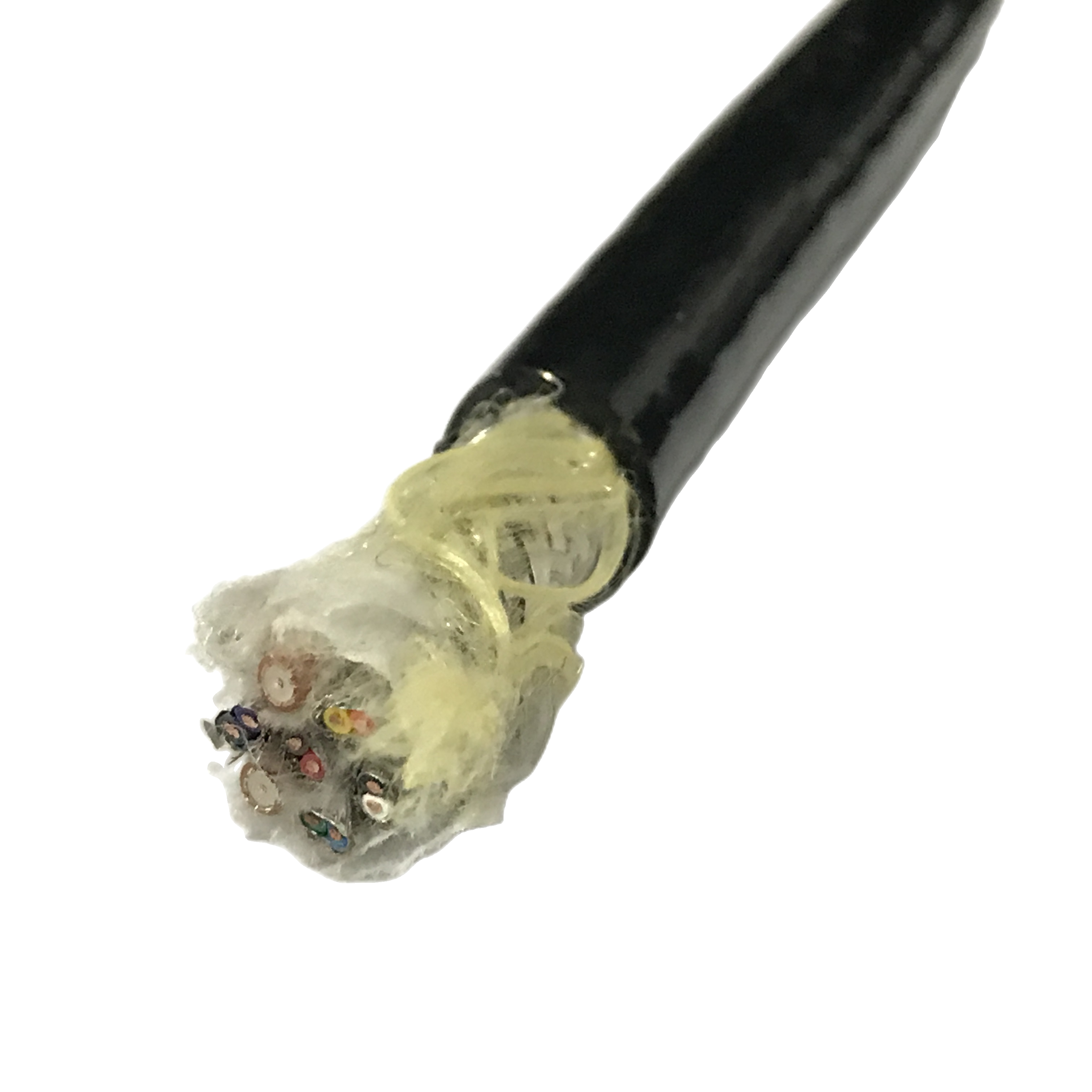

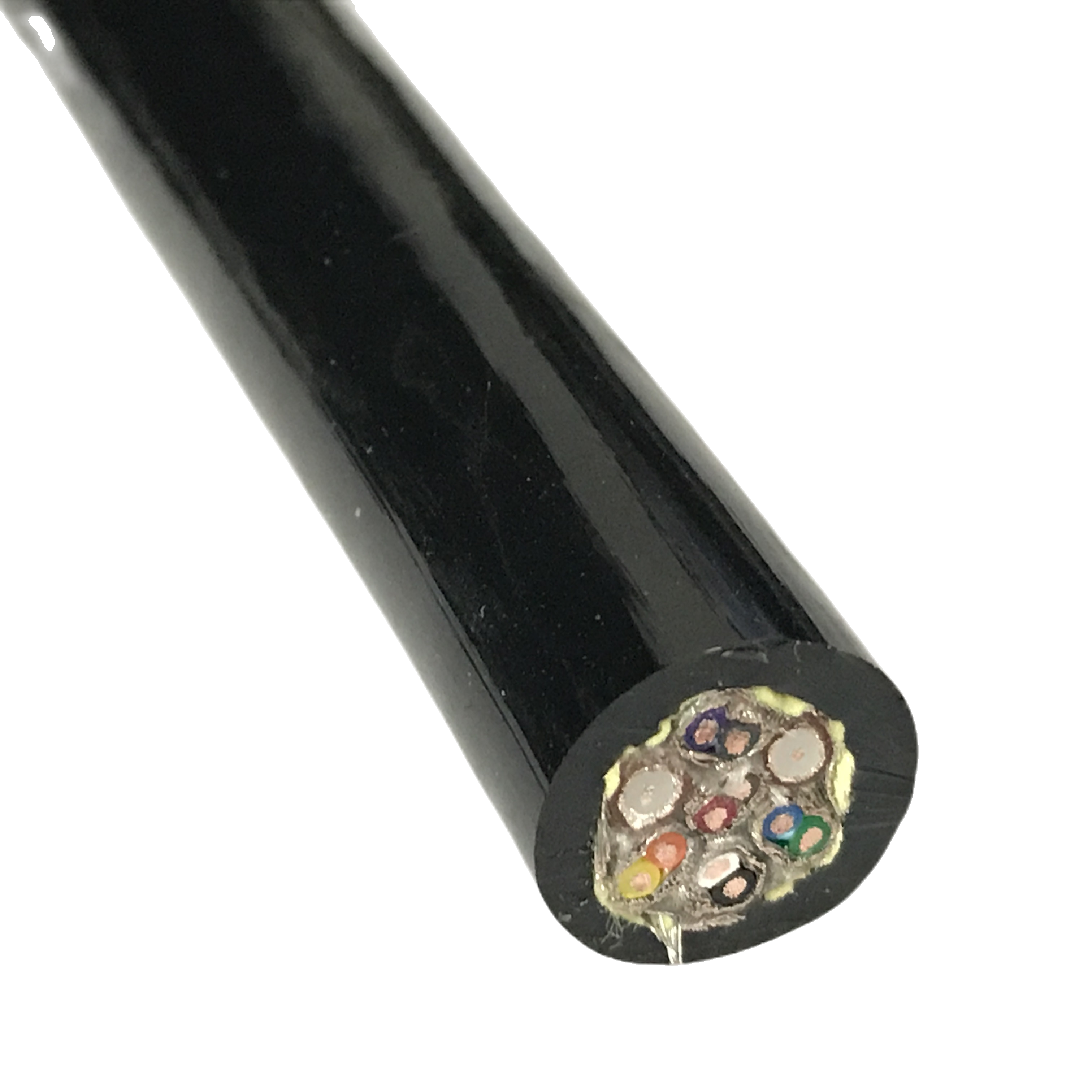

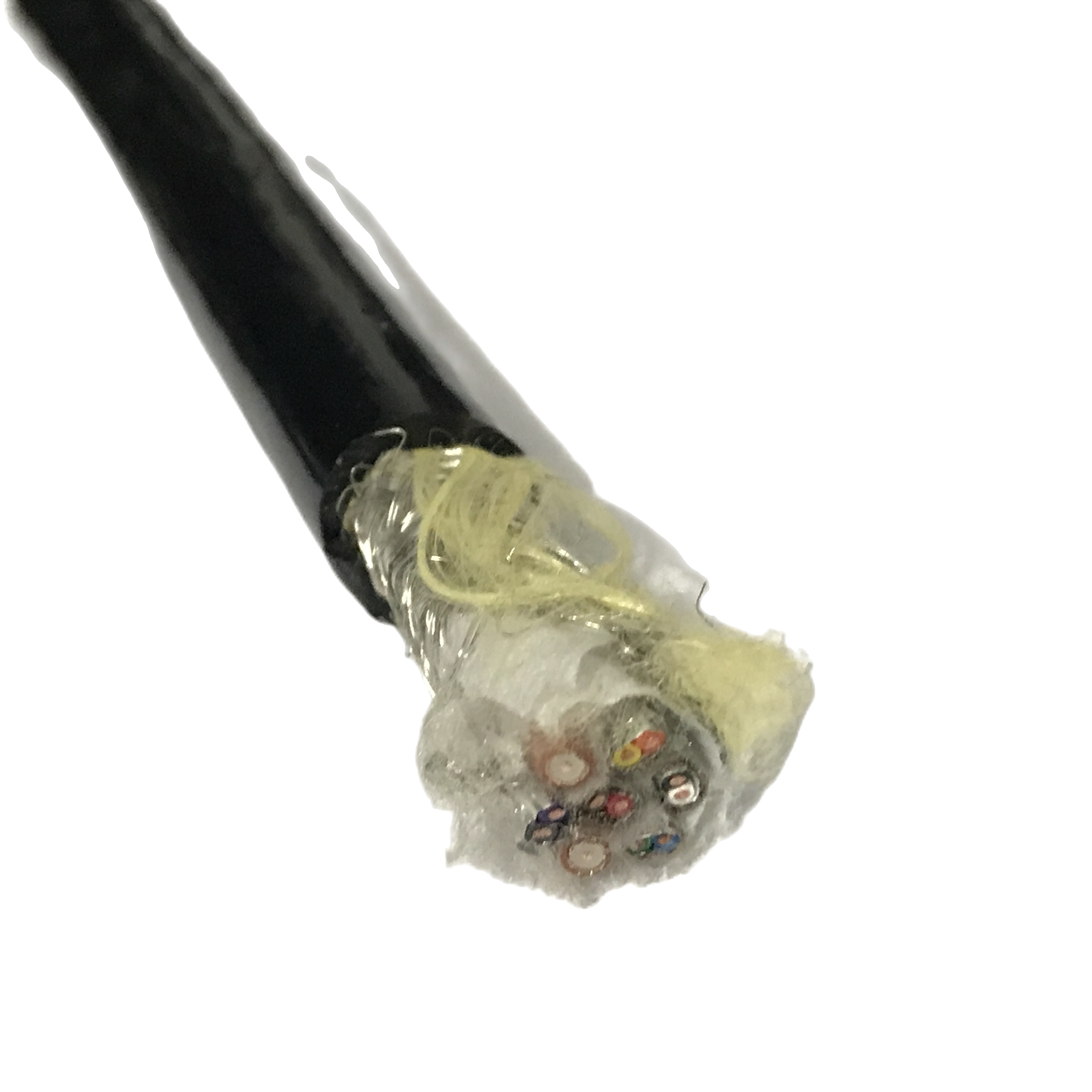

The PVC Flexible Control Cable for Machinery Wiring is a high-flexibility multi-core cable designed for stable signal and power transmission in industrial automation environments.
Key Benefits:
-
✅ Fine-strand copper conductors for superior flex life and durability.
-
✅ Flame-retardant PVC jacket compliant with IEC 60332-1-2 standards.
-
✅ Oil-resistant insulation for harsh industrial and machine tool conditions.
-
✅ Wide range: 2–61 cores, $0.5–120\ mm^2$, $300/500V$ rated voltage.
Ideal for control panels, CNC machines, and automation systems. Custom configurations available.
PVC Flexible Control Cable for Machinery Wiring | High Flex Life | Flame Retardant Supplier
As a dedicated manufacturer of industrial connectivity solutions, we provide high-performance PVC Flexible Control Cable for Machinery Wiring engineered for the rigors of modern automation. Our cables are specifically designed to bridge the gap between cost-efficiency and industrial-grade durability, offering a high flex life that withstands intermittent bending and torsional stress in complex machine layouts. As a certified flame retardant supplier, we prioritize operational safety by utilizing self-extinguishing materials that meet stringent international fire safety protocols.
Technical Specifications & Model Comparison
To assist engineering teams in precise selection, the following table outlines our standard multicore industrial control series.
| Product Model | Core Attributes | Standard Compliance | Bending Radius |
| RVV-Standard | General Purpose, High Flex | IEC 60227-5 | 10 x d |
| JZ-500 Series | Numbered Cores, Oil Resistant | VDE 0285 / CE | 7.5 x d |
| H05VV-F | Harmonized, Flame Retardant | EN 50525-2-11 | 15 x d |
Engineering & Material Integrity (E-E-A-T)
Our manufacturing process focuses on the “internal stress relief” of the cable to prevent the common “corkscrew” effect found in lower-quality wiring.
-
Conductor Technology: We utilize Class 5 fine-stranded oxygen-free copper (OFC). By increasing the strand count and reducing individual wire diameter, we achieve superior conductivity and enhanced fatigue resistance.
-
Insulation & Jacket: Our proprietary TI2/TM2 PVC compounds are lead-free and optimized for “Easy Stripping,” significantly reducing assembly time for high-volume machinery wiring.
-
Flame Retardancy: Fully compliant with IEC 60332-1-2, the outer sheath is engineered to prevent fire propagation along the cable run, providing a critical safety layer for dense control cabinets.
-
Operating Parameters: Rated for $300/500V$. Stable performance in fixed installations from $-40°C$ to $+80°C$ and mobile applications from $-5°C$ to $+70°C$.
Field Applications & Site-Proven Performance
The PVC Flexible Control Cable for Machinery Wiring has been field-tested in diverse industrial scenarios:
-
Automated Assembly Lines: Reliable signal feedback for pick-and-place robotics and sensors.
-
CNC & Machine Tooling: Power and control links for lathes and milling machines where occasional flexibility is required during setup or operation.
-
Logistics Conveyors: Durable power transmission for sorting systems in high-throughput distribution centers.
-
Commercial HVAC: Integrated wiring for large-scale climate control units, ensuring long-term signal integrity in damp or dry interiors.
Quality Control & Experience-Based Reliability
Beyond standard metrics, our cables undergo torsion and bending cycles in our in-house laboratory. We simulate real-world mechanical stress to ensure the insulation maintains its dielectric strength even after 5 million cycles.
Installation Insight: To maximize the high flex life of your machinery wiring, always ensure the cable is installed without twists. Use “free-hanging” methods during installation to allow the internal cores to settle into their natural lay before securing.
Frequently Asked Questions (FAQ)
Q: How does your PVC cable handle industrial oils?
A: Our TM2 grade PVC sheath provides moderate resistance to common industrial oils and chemicals. For environments with constant oil immersion, we recommend our specialized oil-resistant variants.
Q: Can I use this cable for continuous motion in a high-speed drag chain?
A: This series is optimized for “flexible” use (occasional movement). For continuous, high-speed 24/7 drag chain cycles, we suggest our “Super-Flex” PUR series to avoid premature fatigue.
Q: Are custom core identifications available?
A: Yes. While black cores with white numbers (JZ) are standard, we offer full color-coding (OB) or custom printing for bulk orders to meet your specific wiring diagrams.
Request Technical Support & Quotation
Reliable machinery begins with stable connectivity. Contact our engineering team to discuss your specific load requirements or to request a factory-direct quote for PVC Flexible Control Cable for Machinery Wiring.
