Premium Shielded CAT6 Flat Elevator Travel Cable | Industrial Lift Component Flat Cable
Premium Shielded CAT6 Flat Elevator Travel Cable — high‑flex, interference‑resistant flat cable designed for reliable data and video transmission in smart elevator systems. Durable construction supports continuous motion, tight bends, and stable IP connectivity in demanding vertical environments.
Ensure Uninterrupted Data Transmission in High-Rise Environments
In modern intelligent buildings, the elevator is more than just transport—it’s a data hub. Security cameras, digital signage, and intercoms require flawless connectivity while constantly moving. Our Premium Shielded CAT6 Flat Elevator Travel Cable is engineered to withstand the rigorous mechanical stress of lift operations while delivering high-speed, interference-free data transmission.
Designed for durability and precision, this cable combines the flexibility of a travel cable with the performance of CAT6 ethernet, making it the ideal solution for IP cameras and multimedia screens inside elevator cabins.
Key Features & Benefits
- Superior Signal Integrity (CAT6 Performance): Supports high-speed data transfer up to 10Gbps (depending on length) with minimal signal loss. Perfect for HD IP cameras and multimedia displays.
- Double Shielding Technology: Equipped with advanced shielding (S/FTP or similar construction available upon request) to eliminate electromagnetic interference (EMI) from lift motors and VFDs, ensuring crystal-clear video and audio.
- Engineered for Constant Motion: The flat profile design significantly reduces the bending radius compared to round cables, preventing internal wire breakage during millions of flex cycles.

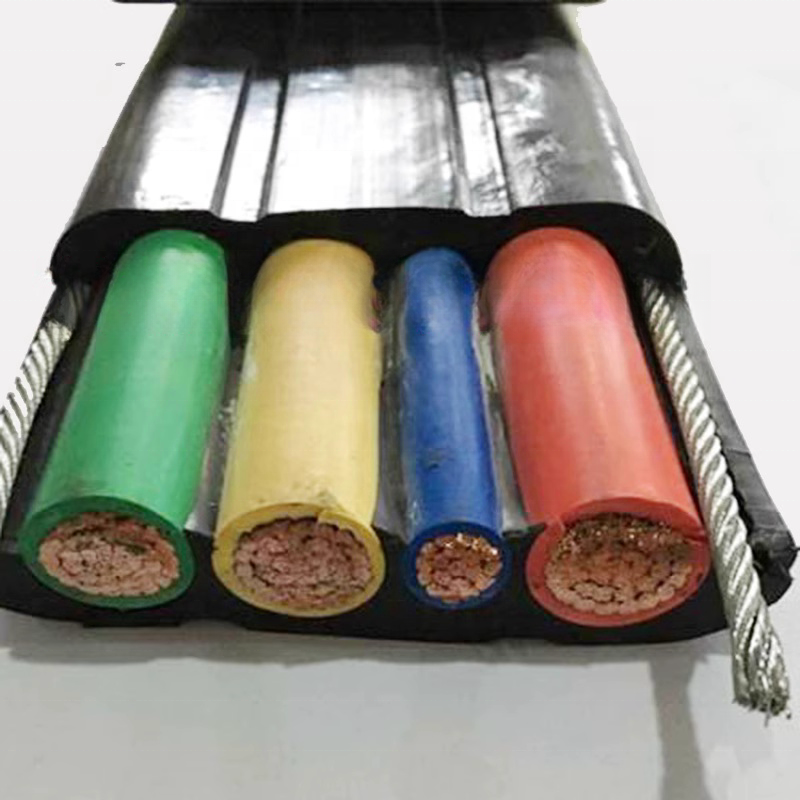

- High-Tensile Strength: Reinforced with dual steel wire strength members (customizable) to support the cable’s weight over long suspension lengths in high-rise shafts.
- Robust Outer Jacket: Features a specialized, abrasion-resistant outer sheath (PVC or LSZH options) that remains flexible even in extreme temperatures ranging from -15°C to +70°C.
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Model Number |
rRSTLKABLR Series |
|
Category Standard |
CAT6 (Exceeds Class E standards) |
|
Conductor Material |
High-Purity Oxygen-Free Copper / Tinned Copper |
|
Cable Structure |
Flat Traveling Cable (Multi-core + Data Pair) |
|
Insulation Material |
Specialized Polyethylene (PE) for high flexibility |
|
Jacket Material |
Special PVC (Cold & Oil Resistant) or LSZH (Low Smoke Zero Halogen) |
|
Shielding |
Aluminum Foil + Tinned Copper Braid (High Coverage) |
|
Suspension Length |
Optimized for standard and high-rise lift shafts (Up to 80m+) |
|
Travel Speed |
Supports speeds up to 4m/s (Customizable for high-speed lifts) |
|
Compliance |
CE, RoHS, EN 50214 Standards |
> Note: We offer full customization for core counts (e.g., 4, 6, 24 cores), lengths, and branding. Please contact our engineering team for specific datasheet requirements.
Applications
This cable is specifically designed for the dynamic environment of elevator systems:
- Elevator CCTV Systems: Reliable connection for IP cameras monitoring passenger safety.
- Digital Signage & Multimedia: High-bandwidth support for advertising screens and news feeds inside the cabin.
- Intercom & Access Control: Clear audio communication and card reader data transmission.
- Panoramic & Observation Lifts: Neat, flat design allows for tight bending radii in compact glass shafts.
Why Choose Shanghai Rousheng?
- Manufacturer Direct: We are the factory. No middlemen means better pricing and direct communication with technical experts.
- Proven Quality: With over 100 varieties of special cables developed, we serve clients in Europe and over 100 countries worldwide.
- Rapid Customization: From logo printing to specific core combinations, we tailor our cables to your project needs with a low MOQ (100 meters).
- Fast Lead Times: Standard orders (1-1000m) ship within 10 days.
Frequently Asked Questions (FAQ)
Q: What is the maximum unsupported suspension length for this cable?
A: Our standard CAT6 flat travel cables are designed for free suspension lengths up to 45-80 meters, depending on the specific model and tension members used. For skyscrapers requiring longer drops, please consult our technical team for a reinforced custom solution.
Q: Can this cable handle both power and data?

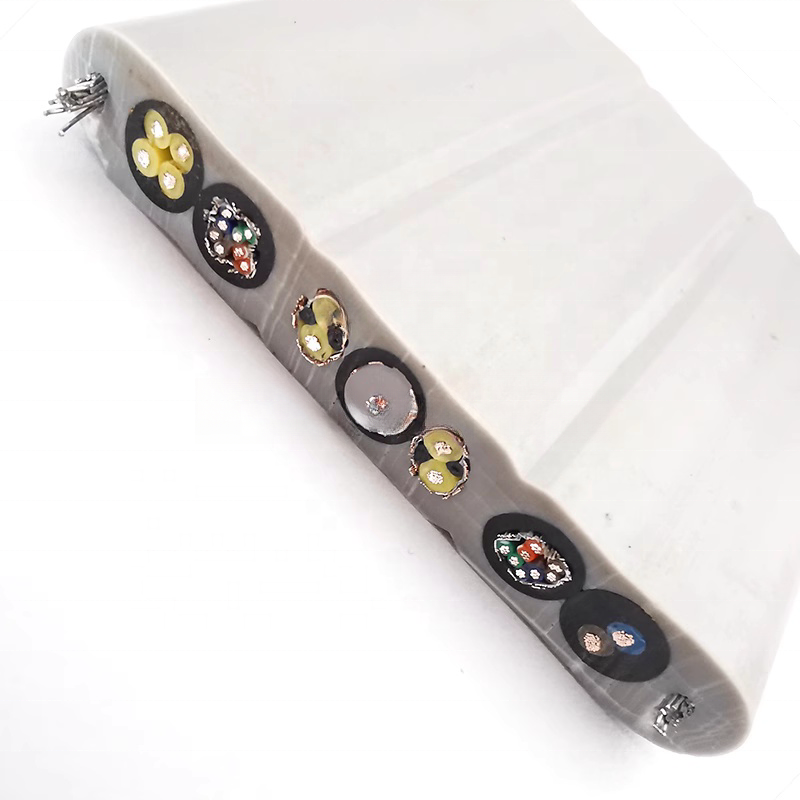

A: Yes, we can manufacture hybrid flat cables that include power cores (for lighting/fans) alongside the shielded CAT6 data element. Let us know your power requirements, and we will design the composite cable structure.
Q: Is the jacket material fire retardant?
A: Yes, our standard PVC jacket is flame retardant. We also offer Low Smoke Zero Halogen (LSZH) materials for projects requiring strict fire safety compliance (such as in public infrastructure or hospitals).
Q: What is the Minimum Order Quantity (MOQ) for a custom specification?
A: We pride ourselves on flexibility. For custom branding or specific modifications, our MOQ starts as low as 100 meters.
Q: How do you ensure the CAT6 signal isn’t disrupted by elevator motor noise?
A: We use high-coverage braided shielding combined with aluminum foil. This dual-layer protection effectively blocks the electromagnetic interference typically generated by elevator motors and drives.
