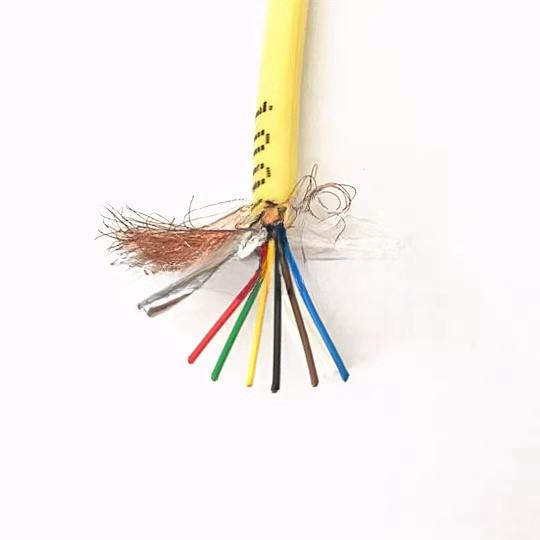

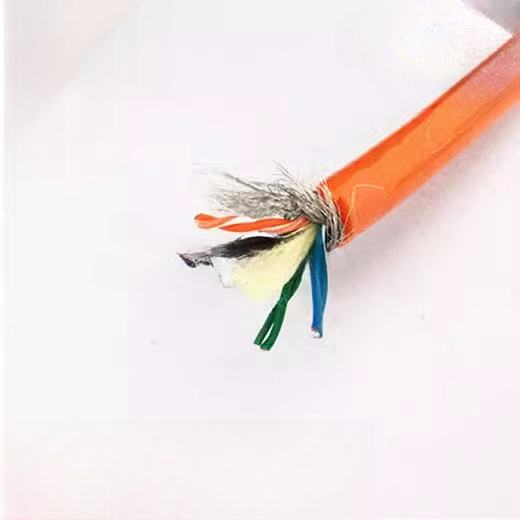

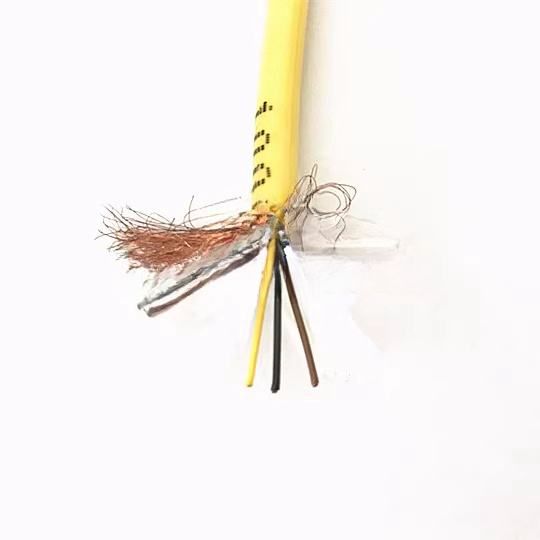

OEM/ODM High-Flexibility TPU Polyurethane Stranded Copper Conductor Industrial Drag Chain Cable
The OEM/ODM High-Flexibility TPU Polyurethane Stranded Copper Conductor Industrial Drag Chain Cable is built for industrial applications that demand durability and flexibility. With a high-performance TPU sheath and stranded copper conductors, this cable ensures superior reliability in drag chain systems and other continuous flexing applications. Customize the cable to meet your specific needs for an even more tailored solution.
The OEM/ODM High-Flexibility TPU Polyurethane Stranded Copper Conductor Industrial Drag Chain Cable is engineered for demanding industrial applications requiring reliable performance, durability, and flexibility. Made with high-quality TPU polyurethane, this cable is designed to provide exceptional resistance against abrasion, water, oil, and extreme temperatures. Featuring stranded copper conductors, it is ideal for use in drag chain systems, ensuring smooth operation in dynamic applications such as robotics, automation, and machinery that demand continuous flexing.
Key Features:
-
Highly Flexible Design: Built for repeated flexing and bending, perfect for drag chain systems.
-
Stranded Copper Conductors: Ensures superior conductivity and flexibility.
-
Durable TPU Polyurethane Sheath: Offers excellent resistance to abrasion, oils, water, and chemicals.
-
Temperature Resistance: Operates in a wide temperature range, from -40°C to +80°C.
-
OEM/ODM Options: Customization available to meet specific needs, including conductor count, length, and color.
Technical Specifications:
| Specification | Details |
|---|---|
| Conductor Material | Stranded Copper |
| Insulation Material | TPU Polyurethane |
| Temperature Range | -40°C to +80°C |
| Voltage Rating | 300/500V |
| Cable Diameter | Customizable |
| Flex Life | 10 million cycles |
| Shielding | Optional |
| Sheath Color | Yellow, Black, or Customizable |
Applications:
-
Industrial Robots
-
Automated Machinery
-
Cable Drag Chains
-
Conveyor Systems
-
High-Flexibility and Heavy-Duty Applications
FAQs:
Q: Can this cable be used in high-temperature environments?
A: Yes, the TPU sheath ensures the cable remains functional in temperatures ranging from -40°C to +80°C.
Q: Is the cable resistant to water and oils?
A: Absolutely! The TPU material provides excellent resistance against water, oils, and chemicals.
Q: Can I customize the length and conductor configuration of the cable?
A: Yes, we offer OEM/ODM services, allowing you to customize the length, conductor count, and sheath color.
