Double Sheath PUR Power Cable Outdoor & Marine Applications High Mechanical Strength Manufacturer
Engineered with a dual-layer PUR sheath, this cable resists UV, abrasion, and moisture while maintaining stable power transmission in harsh outdoor and marine conditions.
Key Benefits:
✅ Double sheath structure for enhanced protection
✅ High abrasion resistance for rough environments
✅ UV and hydrolysis resistant PUR jacket
✅ Reliable performance in outdoor and marine use
Double Sheath PUR Power Cable Outdoor & Marine Applications High Mechanical Strength Manufacturer
Engineered for Outdoor Failure Conditions — Not Just Rated on Paper
Most outdoor power cables do not fail electrically — they fail because the sheath system breaks down first.
Common field sequence:
-
UV → surface hardening
-
Micro-cracks → mechanical stress concentration
-
Water ingress → insulation degradation
-
Final failure → short circuit or leakage
Double sheath PUR construction changes this failure path by separating environmental exposure from electrical protection.

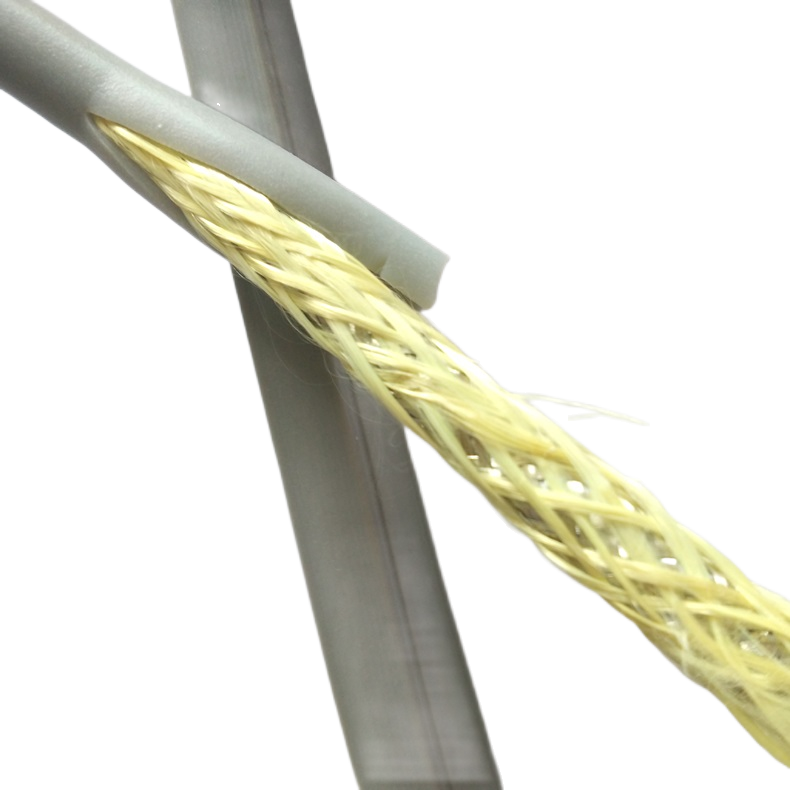

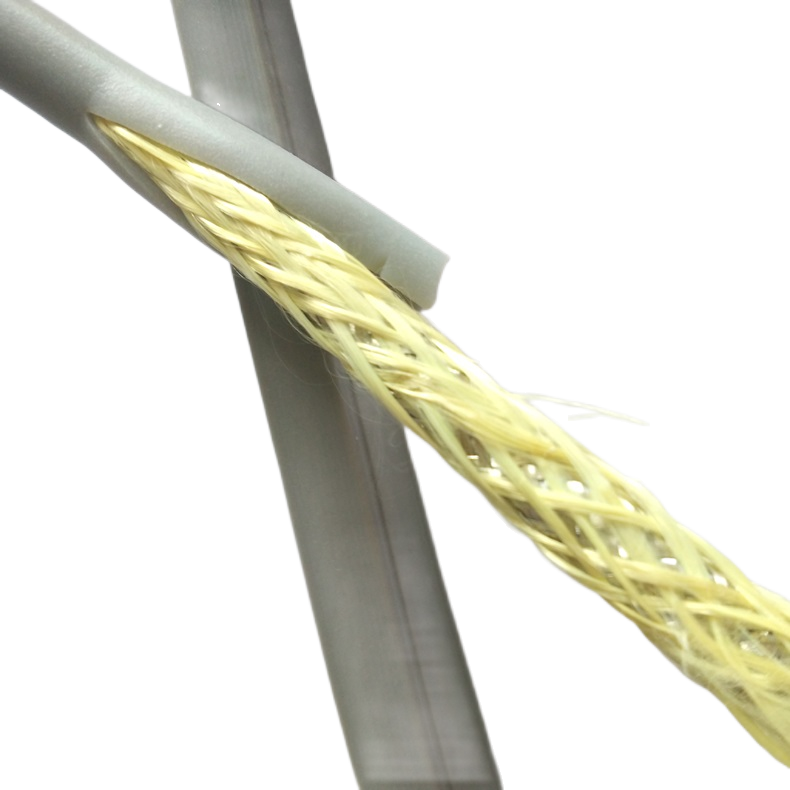

Double Sheath Structure (Functional Design)
-
Outer Sheath (PUR, 90–95 Shore A)
UV-resistant, abrasion-resistant, hydrolysis-resistant -
Inner Sheath (Protective Layer)
Maintains insulation integrity after surface damage -

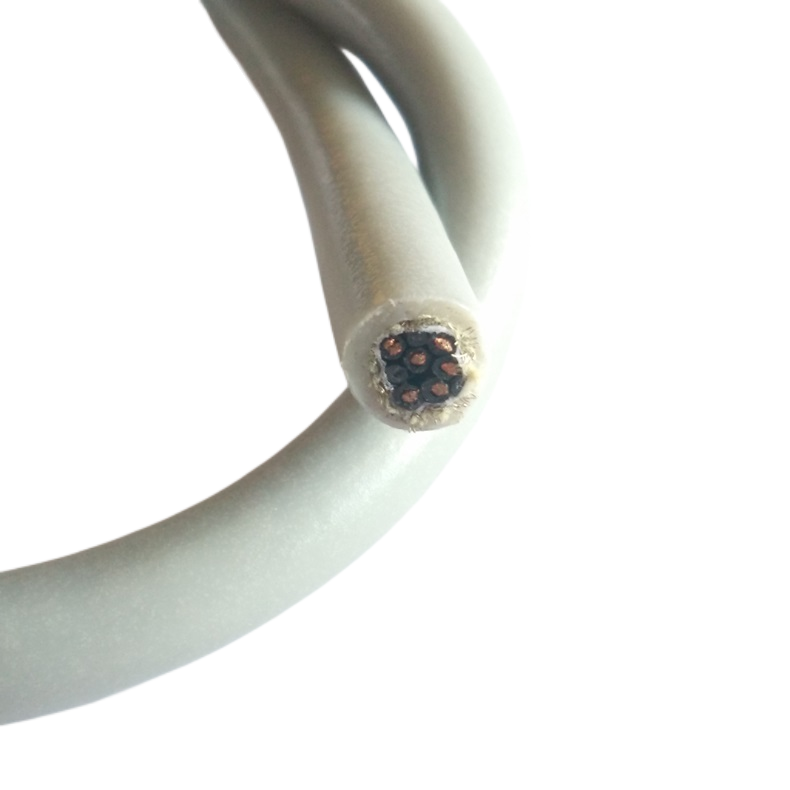

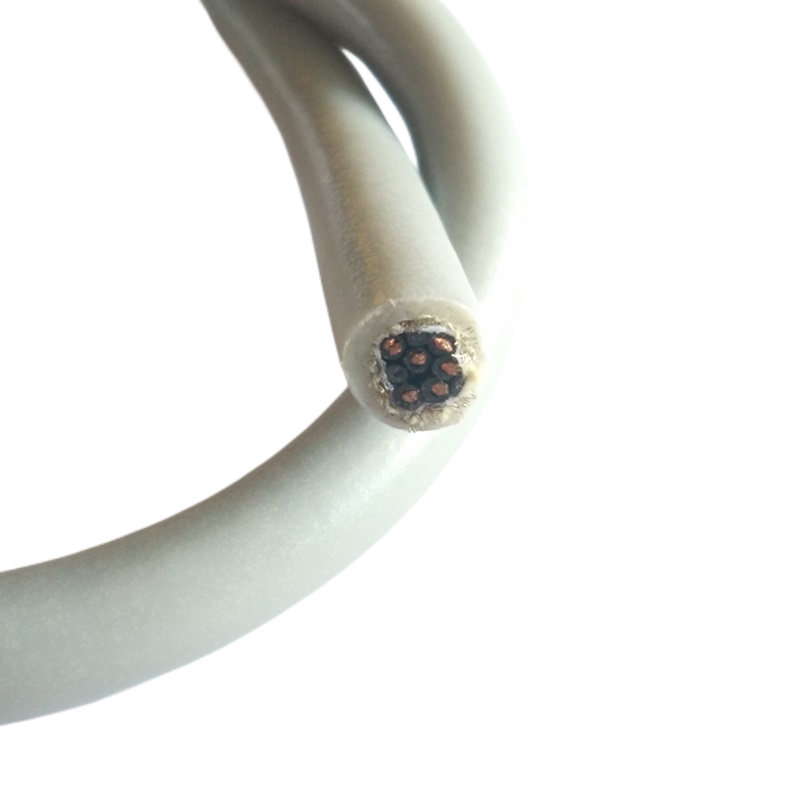

Conductor & Insulation
OFC copper + XLPE/PVC insulation (depending on model)
Result:
Outer damage ≠ immediate cable failure → longer service life in harsh environments
Key Mechanical & Electrical Parameters
| Parameter | Specification |
|---|---|
| Voltage Rating | 0.6/1 kV |
| Temperature Range | -40°C to +90°C |
| Outer Sheath Hardness | 90–95 Shore A |
| Tensile Strength | ≥25 MPa |
| Abrasion Resistance | ≤20 mg / 1000 cycles |
| Elongation at Break | ≥400% |
| Water Resistance | Excellent (PUR ether-based) |
| UV Resistance | High |
When Double Sheath Cable Is Required
| Installation Condition | Recommendation |
|---|---|
| Outdoor exposed installation | Double sheath PUR |
| Marine / offshore deck | Double sheath PUR |
| Underground direct burial | Double sheath PUR |
| Indoor fixed wiring | Single sheath acceptable |
👉 If mechanical damage or environmental exposure exists, single sheath is a risk.
Typical Applications
-
Port crane power systems
-
Offshore platforms and marine decks
-
Construction temporary power supply
-
Shipboard equipment wiring
-
Outdoor industrial installations
Material Comparison (Why PUR Double Sheath)
| Property | PUR Double Sheath | PVC Cable | Rubber Cable |
|---|---|---|---|
| UV Resistance | High | Low | Medium |
| Abrasion Resistance | High | Medium | Medium |
| Water Resistance | Stable | Moderate | Variable |
| Mechanical Protection | Dual-layer | Single-layer | Single-layer |
| Service Life | 2–3× | Baseline | 1.5× |
Available Configurations (Procurement-Oriented)
-
Core count: 2C – 5C (standard)
-
Cross-section: 1.5 mm² – 240 mm²
-
Insulation: PVC / XLPE
-
Sheath: PUR (standard), LSZH optional
-
Armoring: Optional (steel wire / tape)
-
Color: Black / custom
Customization available:
-
Power + control hybrid cable
-

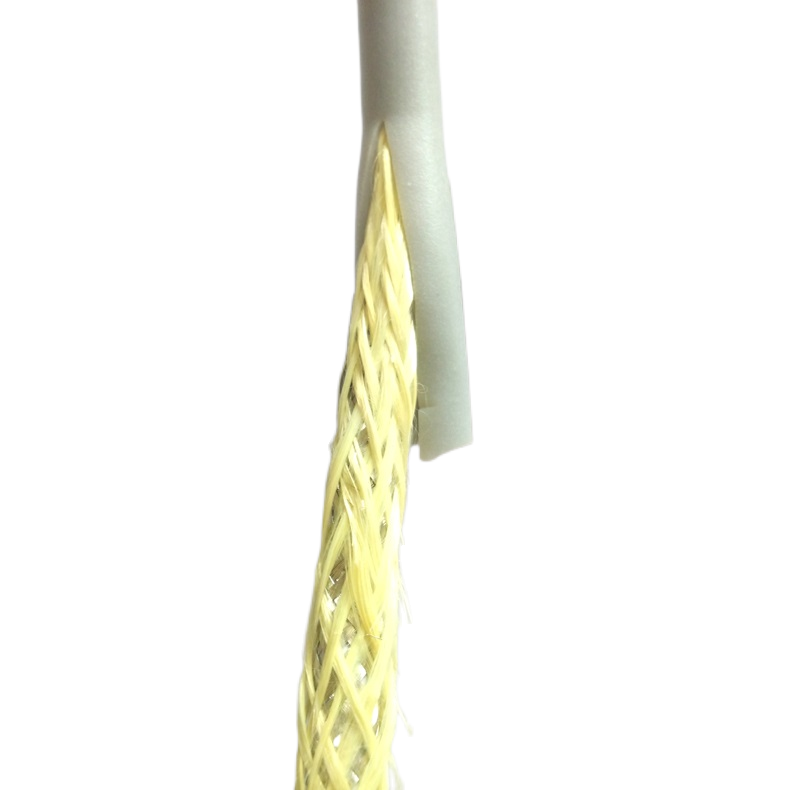

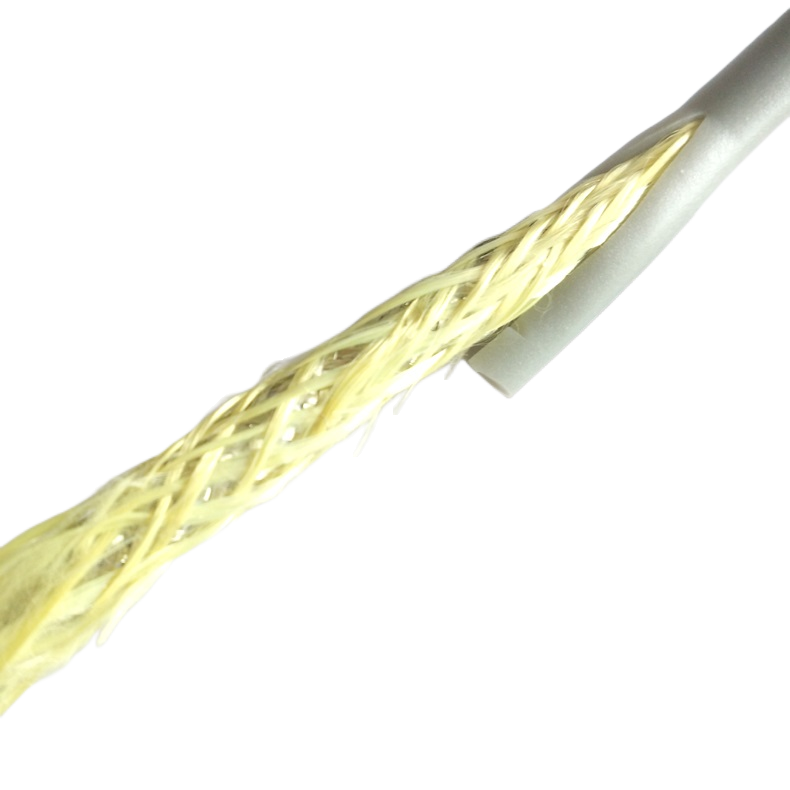

Reinforced tensile structure (Kevlar)
-
Flame-retardant / halogen-free
-
Project-specific design
Ordering & Supply Information
-
MOQ: 500–1000 meters (depending on size)
-
Lead Time: 2–4 weeks standard production
-
Packaging: Wooden drum / export packing
-
Standards: IEC / CE / RoHS compliant
-
OEM: Supported
Application-Based Selection Guide
| Scenario | Recommended Type | Reason |
|---|---|---|
| Crane festoon / outdoor | PUR double sheath | UV + abrasion |
| Offshore equipment | Reinforced PUR | Saltwater + impact |
| Underground installation | Double sheath | Moisture barrier |
| Industrial yard | Heavy-duty PUR | Mechanical stress |
Installation Factors That Determine Service Life
Even high-grade PUR cable can fail early if installation is incorrect:
-
Maintain minimum bend radius
-
Avoid repeated mechanical impact points
-
Ensure proper cable fixing
-
Prevent water ingress at termination
👉 Cable design + installation = actual service life
FAQ (Buyer & Engineer Focused)
Q1: Why not use standard PVC cable outdoors?
PVC loses flexibility under UV exposure and cracks over time, leading to water ingress and failure.
Q2: What is the real advantage of double sheath?
It prevents immediate failure after outer damage by adding a secondary protection layer.
Q3: Is PUR better than rubber cable?
PUR offers higher abrasion resistance and longer service life under continuous exposure.
Q4: Can this cable be used in marine environments?
Yes, polyether PUR is resistant to moisture, oil, and harsh outdoor conditions.
Q5: Can specifications be customized?
Yes, including conductor size, structure, shielding, and mechanical reinforcement.
Request Technical Support or Quotation
To receive a matched cable model and quotation, provide:
-
Application (crane, offshore, underground, etc.)
-
Required core count and cross-section
-
Installation condition (outdoor, marine, buried)
-
Any special requirements (armoring, shielding, flame rating)
👉 Technical review and model selection support available before order.
