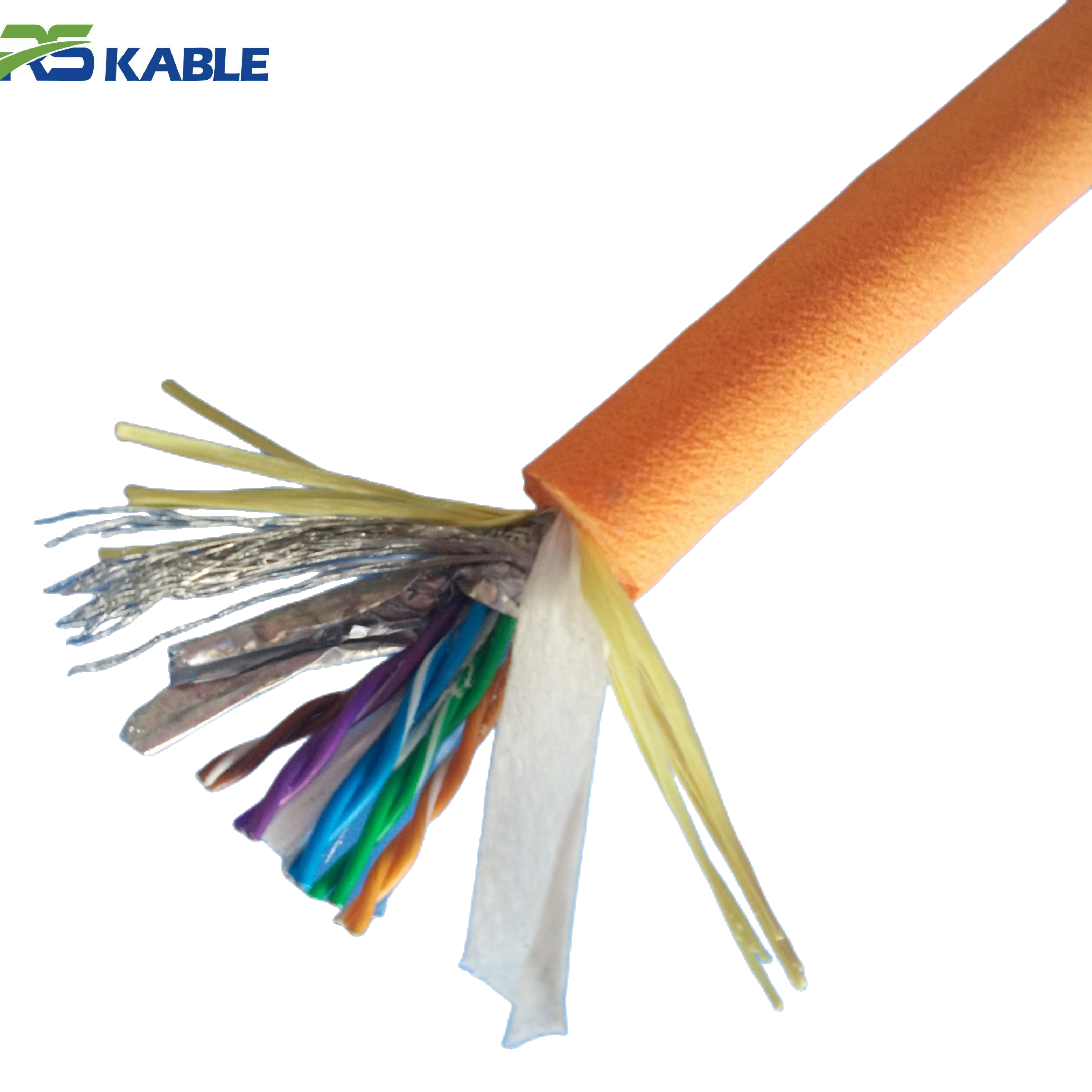

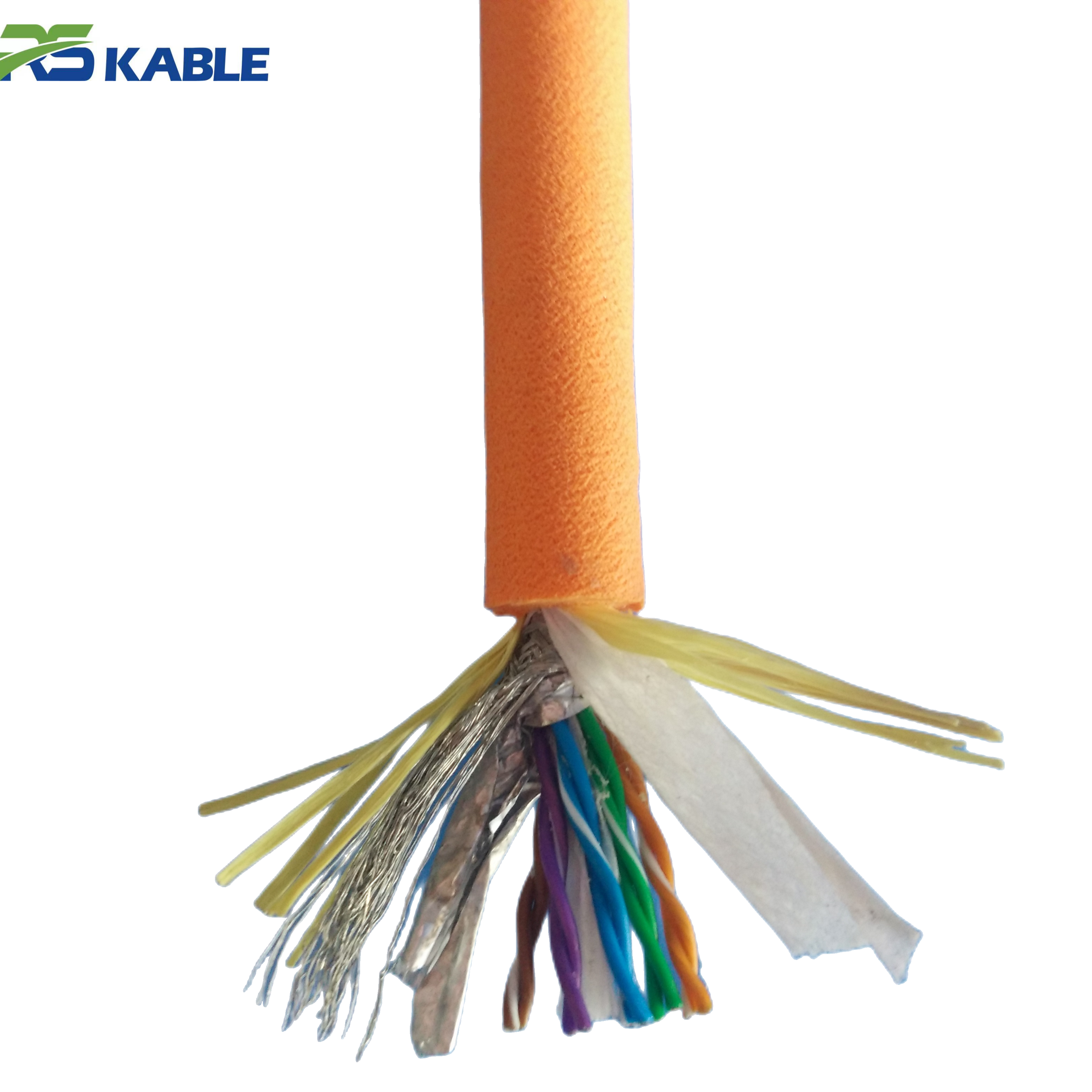

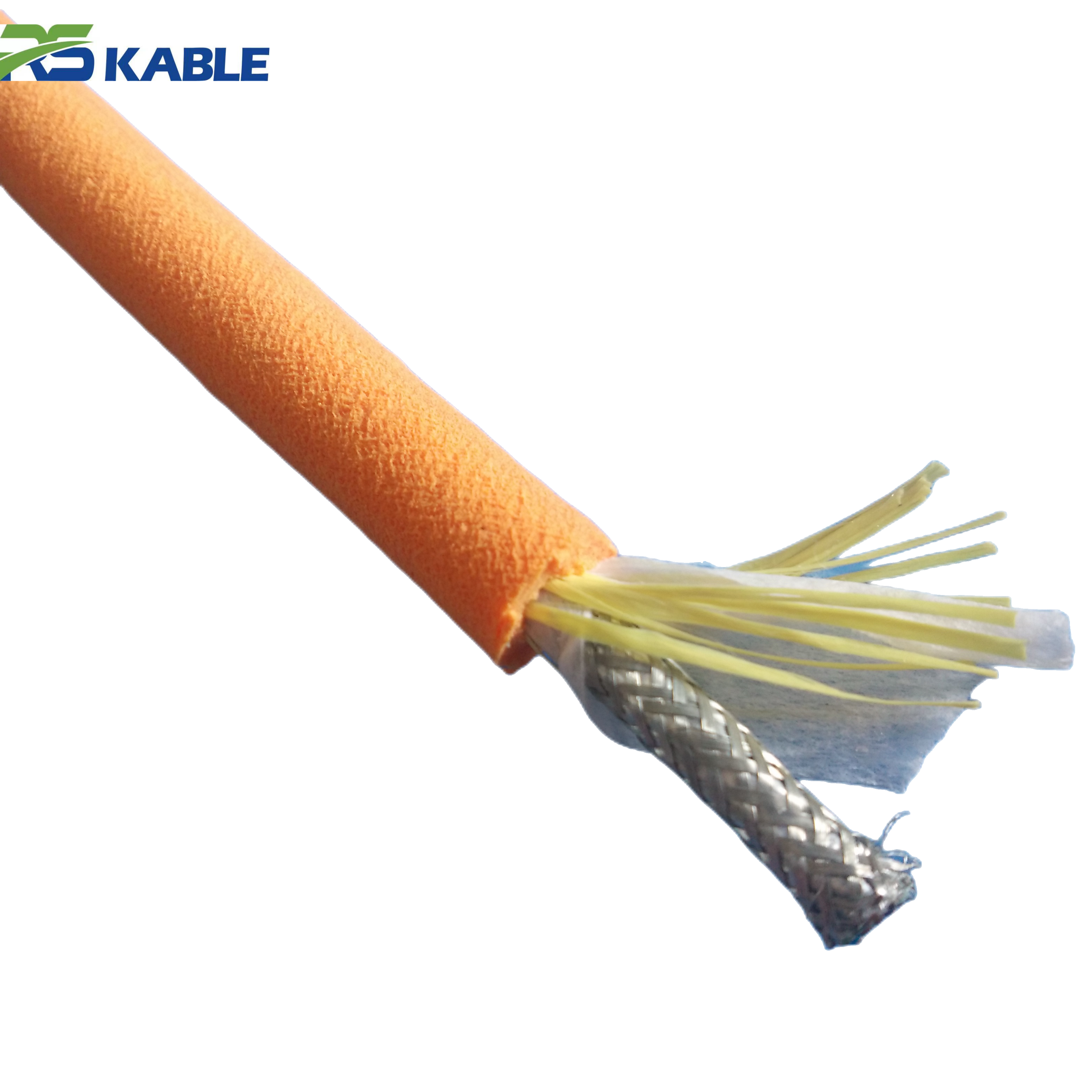

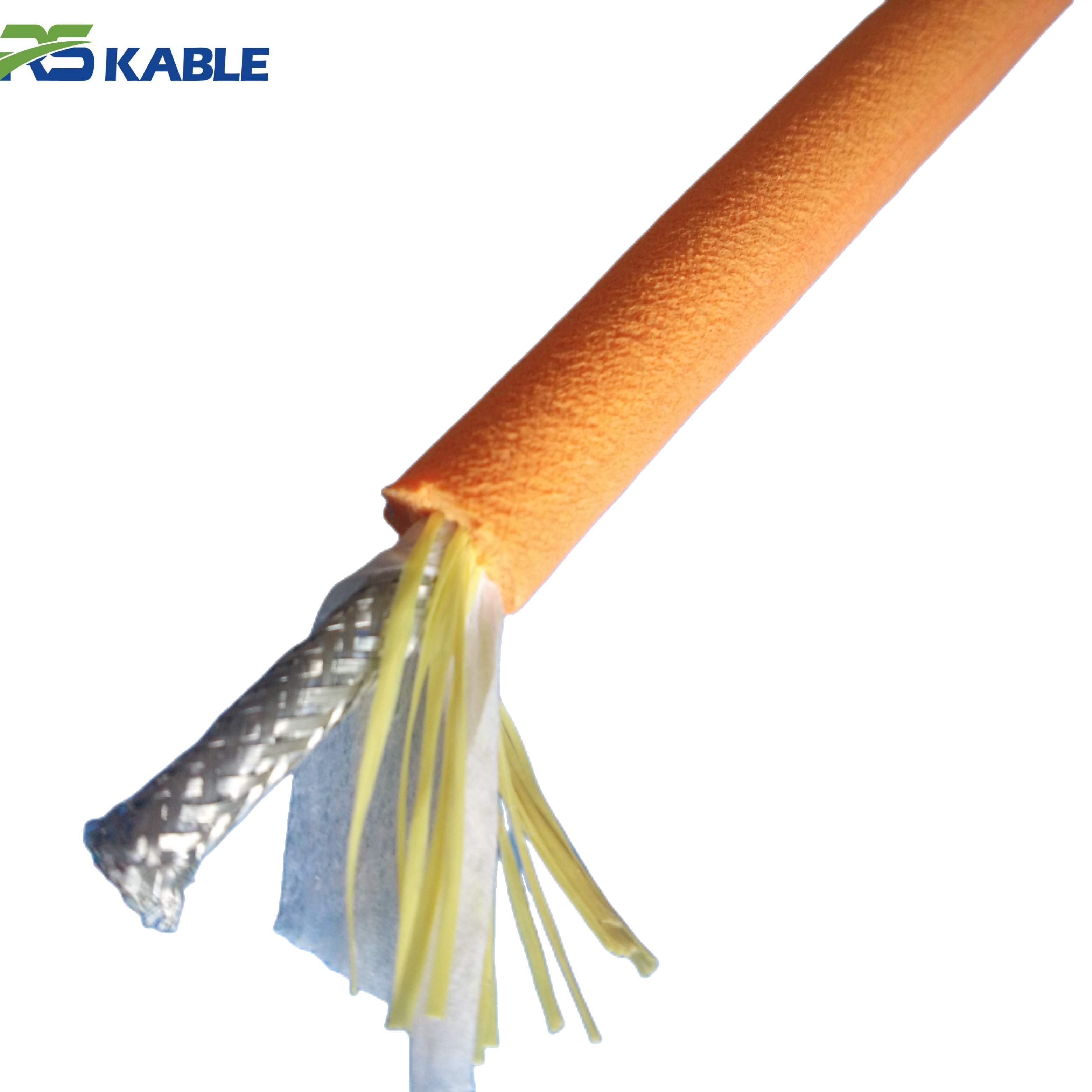

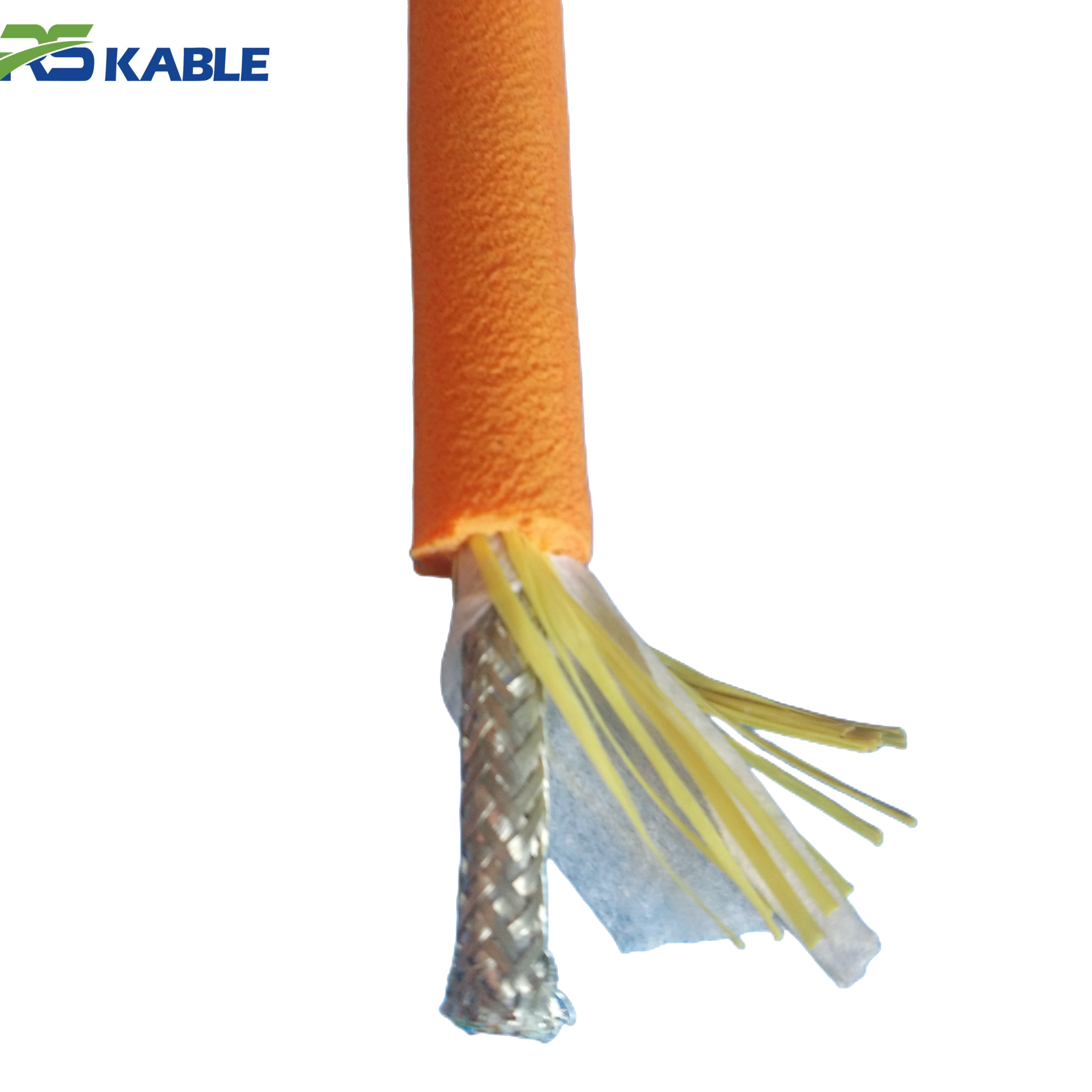

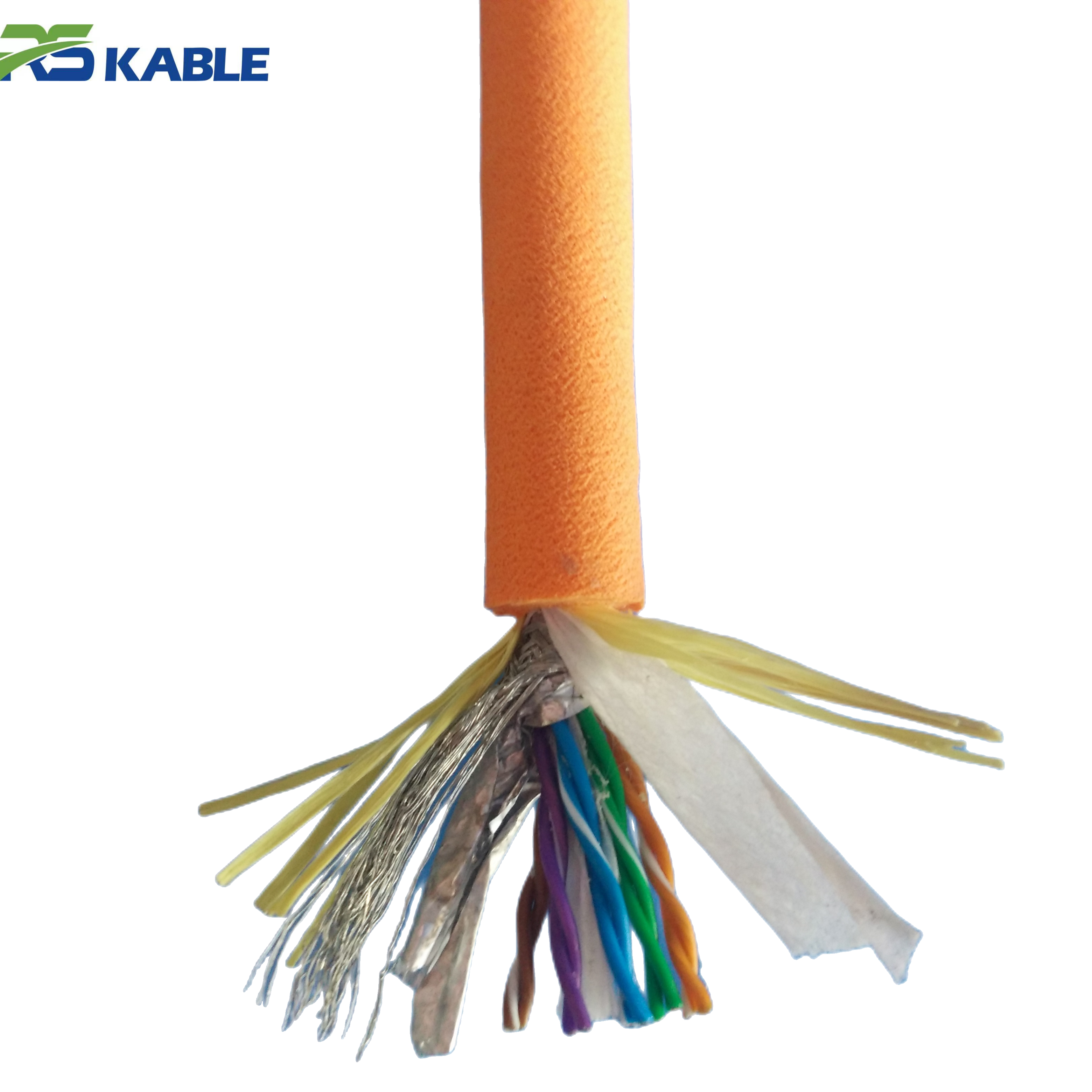

Deep-Sea Research Systems | ROV Cable | Electro-Optical Hybrid Structure | High Bandwidth Communication
This advanced electro-optical hybrid ROV Cable is purpose-built for deep-sea research systems requiring high bandwidth communication and stable subsea power delivery. Combining multi-core electrical conductors with protected fiber optic units, it supports real-time video streaming, sonar data transmission, and scientific instrumentation control. Reinforced tensile members and pressure-resistant materials ensure reliability in extreme depths up to 8,000 meters. Designed for oceanographic institutions, marine research vessels, and subsea exploration programs, it provides dependable long-term performance under continuous deep-ocean deployment.
Deep-Sea Research Systems | ROV Cable | Electro-Optical Hybrid Structure | High Bandwidth Communication
For oceanographic exploration and deep-sea scientific missions, our ROV Cable integrates electro-optical hybrid technology to deliver high bandwidth communication and stable power transmission in extreme depths. Designed for research-class ROVs and subsea observation platforms, this advanced tether combines electrical conductors and optical fibers within a reinforced structure, enabling real-time HD video, sensor data streaming, and long-duration deployment under high pressure.
Designed for Scientific & Oceanographic Missions
Deep-sea research requires precision, bandwidth stability, and mechanical reliability. This hybrid ROV Cable is optimized for:
-
Continuous deep-ocean exploration
-
High-definition video and sonar transmission
-
Multi-sensor data acquisition
-
Long-distance subsea deployment
-
Extreme hydrostatic pressure environments
Performance Highlights
-
Electro-optical hybrid core (power + fiber)
-
High bandwidth optical transmission for real-time data
-
Low attenuation signal performance
-
High tensile strength for deepwater handling
-
Neutral buoyancy or depth-balanced configuration
-
Pressure-resistant, marine-grade outer jacket
Product Series & Core Attributes
| Model Code | Model + Core Attribute Description | Hybrid Structure Configuration | Max Depth | Outer Diameter |
|---|---|---|---|---|
| DR-ROV-4P2F | 4 Power + 2 Fiber, Research Grade Hybrid | 4 × 2.5 mm² + 2 single-mode fibers | 4,000 m | 18.9 mm |
| DR-ROV-6P4F | 6 Power + 4 Fiber, High Bandwidth Model | 6 × 2.0 mm² + 4 SM/MM fibers | 6,000 m | 21.6 mm |
| DR-ROV-4P8F-HD | 4 Power + 8 Fiber, Ultra Data Capacity | 4 × 3.0 mm² + 8 armored optical fibers | 6,500 m | 23.4 mm |
| DR-ROV-EO-PRO | Enhanced Electro-Optical Structure, Reinforced Tensile | Multi-power cores + multi-fiber hybrid bundle | 8,000 m | 26.2 mm |
All models are built with high-purity tinned copper conductors and water-blocked optical units for deep-sea reliability.
Technical Construction & Materials
| Parameter | Specification | Material / Standard |
|---|---|---|
| Electrical Conductor | Fine-stranded tinned copper | IEC 60228 Class 5 |
| Optical Fiber Type | Single-mode (SM) / Multi-mode (MM) optional | ITU-T G.652D / G.657 |
| Fiber Protection | Stainless steel or aramid armored tube | Pressure resistant |
| Insulation | XLPE or PE low-dielectric compound | Reduced signal loss |
| Shielding | Aluminum foil + braided copper layer | EMI protection |
| Strength Member | Aramid/Kevlar load-bearing yarns | Tensile ≥ 3,000 kg |
| Outer Jacket | TPU or polyurethane deep-sea grade | Abrasion & seawater resistant |
| Buoyancy | Neutral or depth-balanced | Density controlled |
| Operating Temperature | –40°C to +80°C | Deep-ocean capable |
| Certification | ISO 9001, RoHS compliant | Third-party tested |
Applications in Deep-Sea Research
This ROV Cable supports:
-
Marine biology exploration missions
-
Deep-ocean geological surveys
-
Hydrothermal vent research
-
Seabed mapping and sonar systems
-
Offshore environmental monitoring
-
Scientific submersible and observation platforms
Relevant long-tail keywords:
“electro-optical hybrid ROV cable,”
“high bandwidth subsea research tether,”
“deep-sea fiber optic ROV cable.”
Engineering & Quality Assurance
Manufactured under ISO 9001-certified quality management systems, each cable undergoes:
-
Optical attenuation testing
-
High-voltage insulation testing
-
Tensile load verification
-
Hydrostatic pressure simulation
-
Signal integrity and bandwidth validation
Our engineering team provides custom configuration support based on mission depth, data throughput requirements, and deployment duration.
Configure Your Deep-Sea System
Equip your research platform with a high-bandwidth electro-optical ROV Cable designed for extreme depths and scientific accuracy. We provide customized hybrid structures tailored to your instrumentation and operational objectives.
Frequently Asked Questions (FAQ)
Q: What is the advantage of an electro-optical hybrid structure?
It combines electrical power delivery and high-speed optical communication in a single compact tether, reducing drag and complexity.
Q: Can this cable support 4K video transmission?
Yes. Hybrid fiber configurations provide sufficient bandwidth for HD and 4K real-time data transmission.
Q: Is it suitable for ultra-deep ocean missions?
Models are available with ratings up to 8,000 meters, depending on configuration.
Q: How is fiber protected under pressure?
Optical elements are housed in armored or stainless-steel tubes to resist hydrostatic pressure and mechanical stress.
Q: Can the cable be customized?
Yes. Fiber count, conductor size, tensile strength, and buoyancy can be tailored to research project requirements.
