Custom YFFBG Composite Flat Power & Network Cable with Coax Video | High‑Flex Industrial Elevator Communication Cable

Streamline Elevator Systems with All-in-One Composite Connectivity

Modern elevators are no longer just about moving people between floors. They are intelligent hubs requiring constant power, high-speed internet for multimedia screens, and crystal-clear video feeds for security cameras.

Managing separate cables for power, data, and video in a traveling cable setup is risky. It increases the chance of tangling, occupies valuable shaft space, and complicates maintenance.

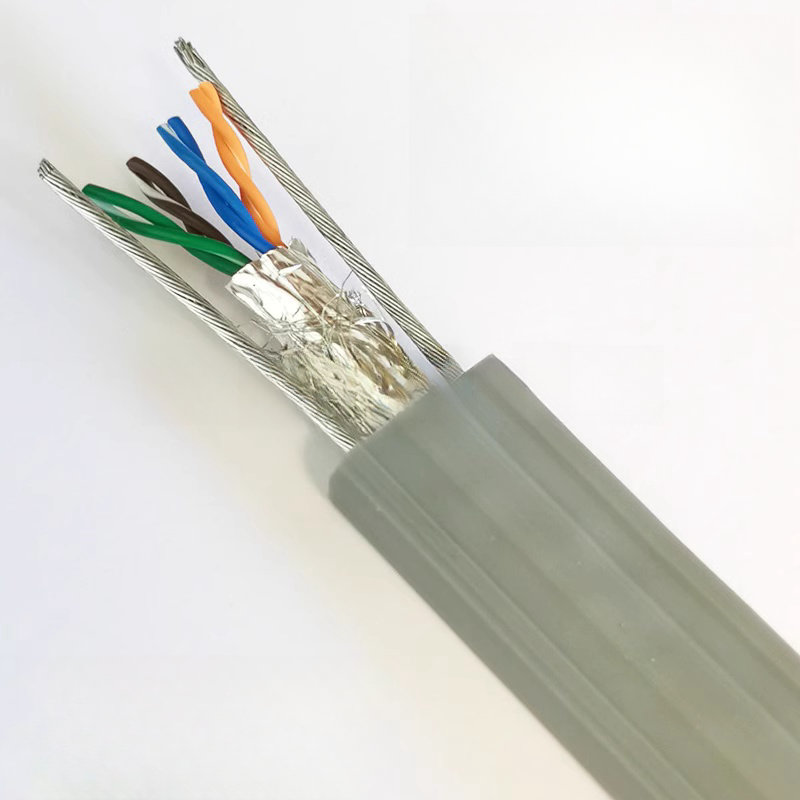

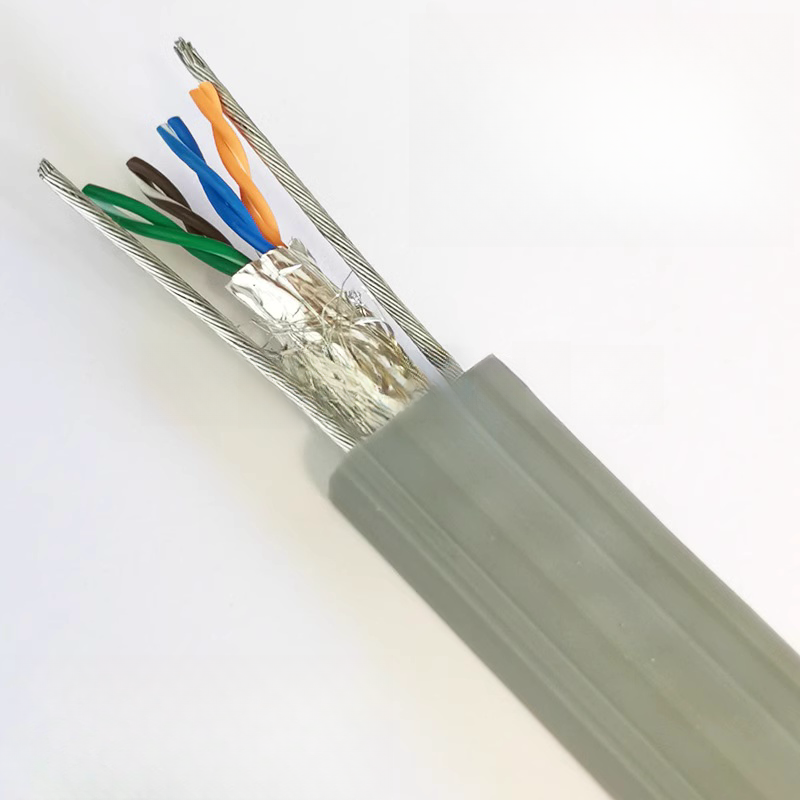

The Custom YFFBG Composite Flat Cable by Shanghai Ruosheng solves this infrastructure challenge. Engineered as a single, high-flexibility solution, it integrates power cores, network transmission (Cat5e/Cat6), and coaxial video signals (RG59/RG6) into one flat, durable profile. Designed for high-stress vertical travel, this cable ensures reliability for smart elevators in commercial high-rises, hospitals, and residential complexes.

Why Switch to YFFBG Composite Flat Cables?

1. Optimized for Vertical Travel
Unlike standard round cables that can twist or “corkscrew” under tension, our flat parallel design allows for a smaller bending radius and smooth stacking during operation. This structure significantly reduces mechanical stress on the conductors, extending the cable’s lifespan even in high-traffic lifts.

2. Signal Integrity in Noisy Environments
Elevator shafts are electrically noisy environments. Our composite cables feature specialized shielding for data and video components. This isolation prevents power line interference (EMI) from disrupting your CCTV feed or the digital signage inside the cab.

3. Space-Saving Efficiency
Combining three functions—power, internet, and video—into one jacket reduces the width of the traveling cable bundle. This allows for narrower bend radii and frees up space in the hoistway for other critical equipment.

4. Reinforced for Safety
For installations requiring long suspension lengths (over 80m), we offer high-tensile steel wire reinforcement options. This prevents the cable from stretching under its own weight, ensuring physical integrity and consistent electrical performance over time.

Technical Construction & Customization

Shanghai Ruosheng specializes in tailoring cables to specific project requirements. While standard TVVB cables cover basic power, our YFFBG series is built for complexity.

• Power Cores: Stranded bare copper for flexibility (0.75mm² to 2.5mm² typical).
• Network Integration: Integrated Cat5e or Cat6 distinct units for reliable IP communication.
• Video Feed: Coaxial elements (RG59, RG6, or SYV series) for analog or digital camera systems.
• Insulation & Sheath: High-grade, flame-retardant PVC (IEC 60332-1-2 compliant). Resistant to oil, abrasion, and cold temperatures.

Application Scenarios

• Smart Elevators: Cabins featuring LCD advertising screens and Wi-Fi access.
• Security Lifts: Elevators with integrated IP or analog CCTV cameras.
• Access Control: Lifts requiring card reader data transmission alongside power.
• High-Rise Buildings: Office towers requiring reliable communication over long travel distances.

Technical Specifications

About Shanghai Ruosheng Wire & Cable Co., Ltd.

Shanghai Ruosheng is a dedicated manufacturer focused on R&D and production of high-flexibility drag chain and special cables. With over 100 specific cable varieties in our portfolio, we move beyond “off-the-shelf” limitations. We understand that every elevator shaft has unique physical constraints and electronic needs. Our engineering team works directly with clients globally to design composite solutions that fit perfectly, ensuring safety and connectivity from the ground floor to the penthouse.

Frequently Asked Questions (FAQ)

Q: Can I customize the combination of data and video cables?
A: Yes. The “Composite” nature of the YFFBG allows for various internal configurations. You can request a combination of 4-core power + 1x Cat6 + 1x RG6, or any other mix that suits your specific equipment needs.

Q: What is the maximum suspension length for this flat cable?
A: Standard free-hanging length is typically up to 80 meters. For travel heights exceeding this, we integrate high-tensile steel supporting wires into the flat profile to bear the tensile load and prevent copper elongation.

Q: Is this cable suitable for outdoor panoramic elevators?
A: Standard PVC is designed for indoor shafts. However, we can manufacture the outer sheath with specialized weather-resistant and UV-resistant materials for outdoor or exposed panoramic elevators upon request.

Q: How do you prevent signal interference between power and video?
A: We utilize individual shielding (aluminum foil + braiding) for the coaxial and network sections. This creates a Faraday cage effect, protecting sensitive video and data signals from the electromagnetic field generated by the adjacent power conductors.
