Cold‑Resistant Flat CCTV Elevator Cable | Dual‑Steel Reinforced • Dual Shielded • Cat5e/6A PE Insulated

Reliable CCTV & Data Transmission in Vertical Transportation Systems

The Cold‑Resistant Flat CCTV Elevator Cable from Shanghai Ruosheng Wire & Cable Co., Ltd. is engineered to deliver dependable performance in the demanding environment of vertical transportation. Combining high‑speed networking capabilities with industry‑leading mechanical durability, this cable is ideal for surveillance, digital signage, and advanced communication systems in elevators and lift shafts.

🔧 Key Features & Benefits

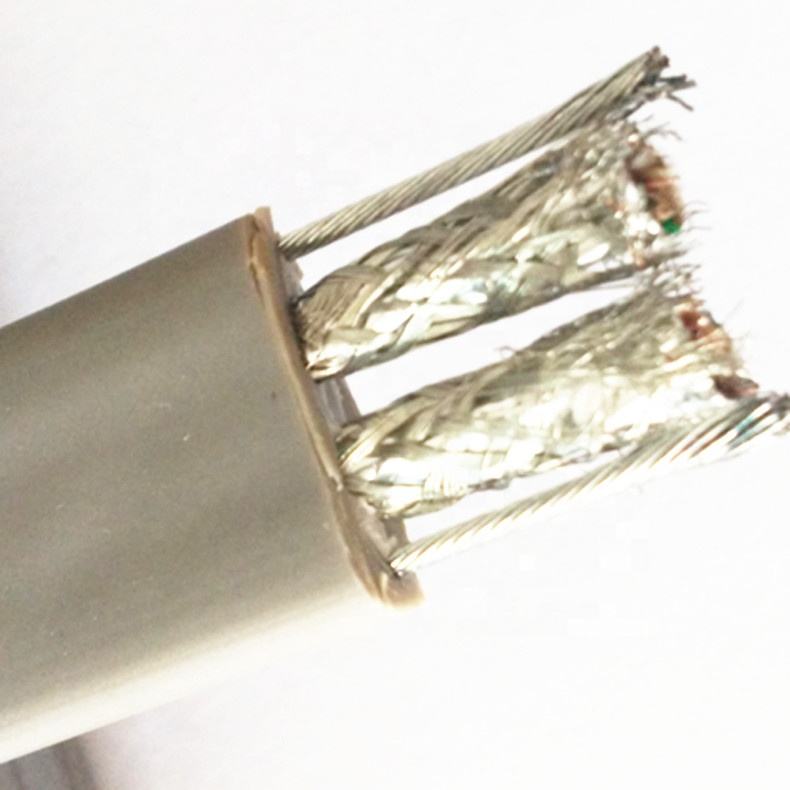

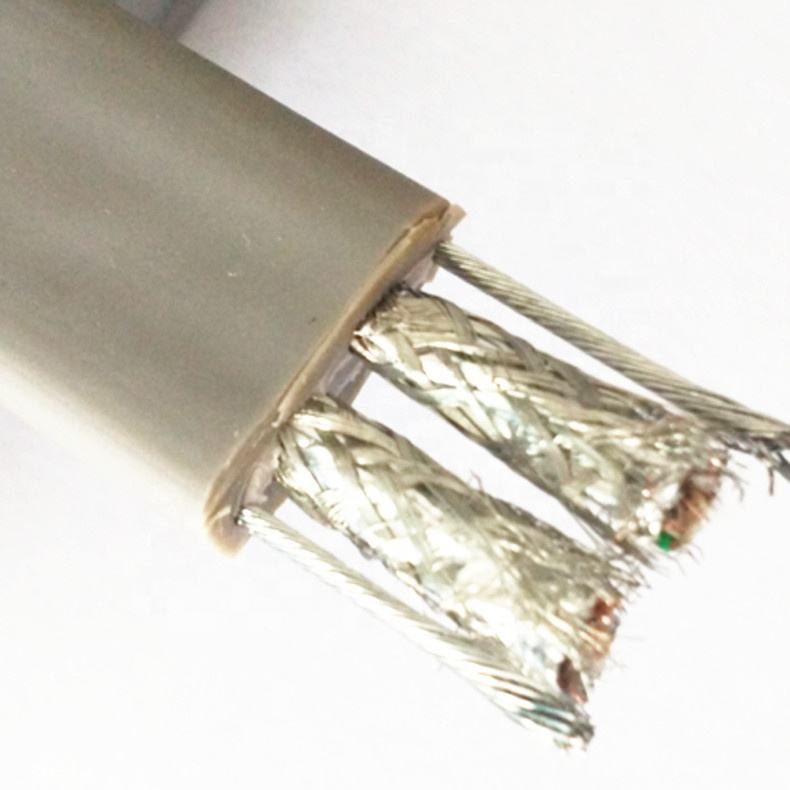

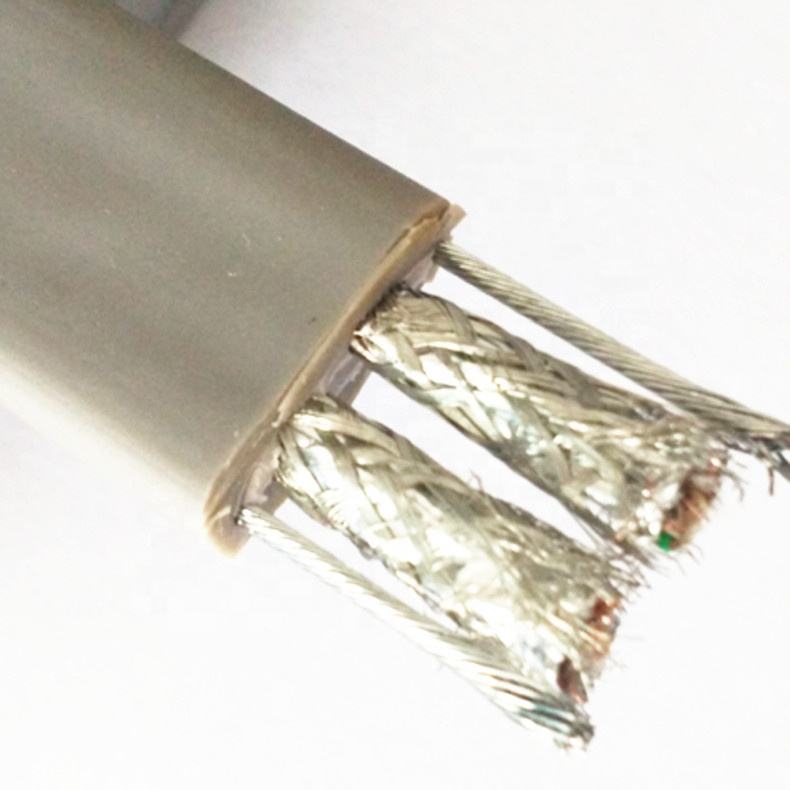

🛠 Dual Steel Wire Reinforcement

Two galvanized steel strength members run parallel with the conductors, absorbing tensile stress and preventing copper core stretching or breakage during vertical travel cycles.

❄ Cold‑Resistant Design

The specialized PVC/NBR outer jacket remains flexible and crack‑resistant in temperatures as low as ‑15 °C, ensuring long‑term service life even in unheated elevator shafts typical of colder climates.

🛡 Dual‑Layer Electromagnetic Shielding

With both aluminum foil and tinned copper braid (approx. 85% coverage), this cable delivers robust EMI protection — essential for noise‑free CCTV and data transmission around elevator motors and drives.

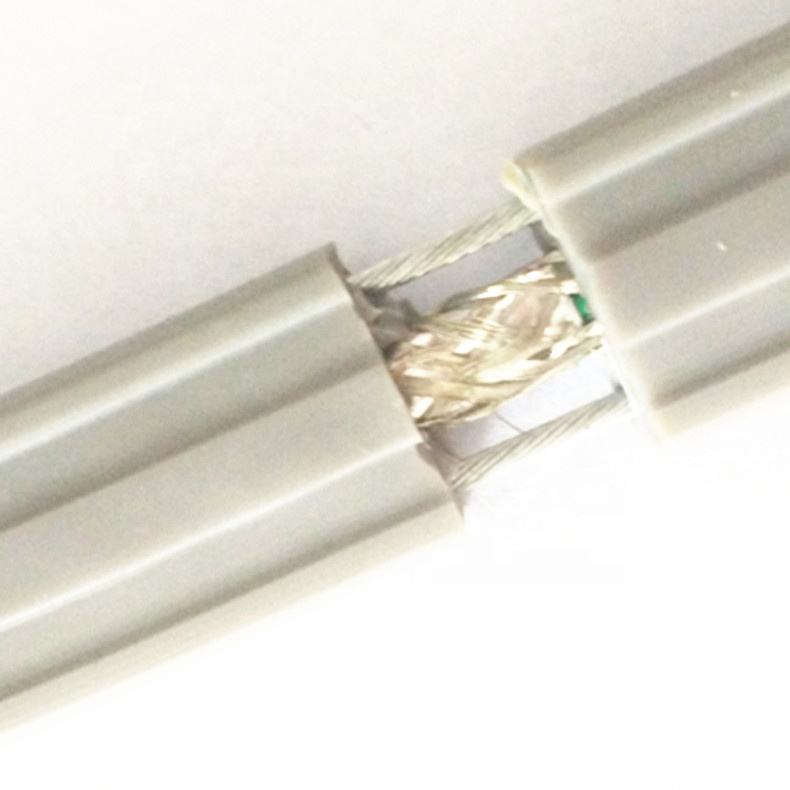

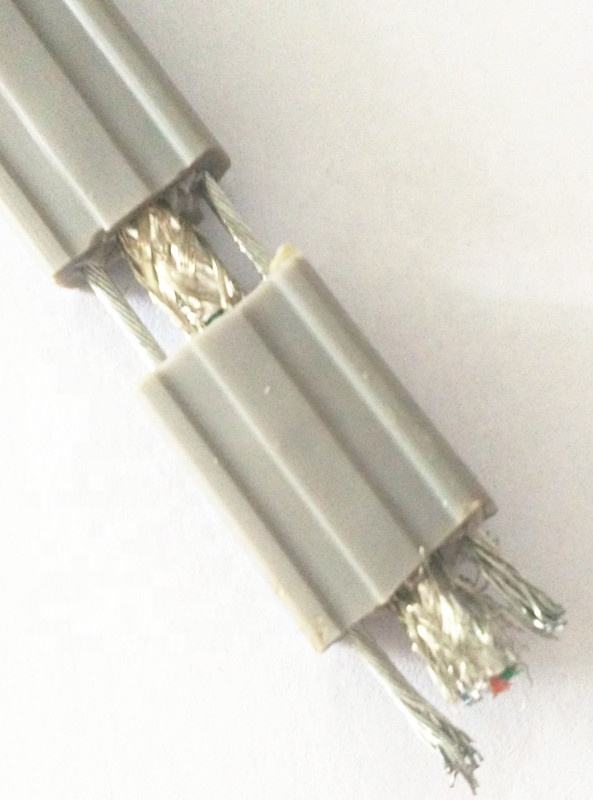

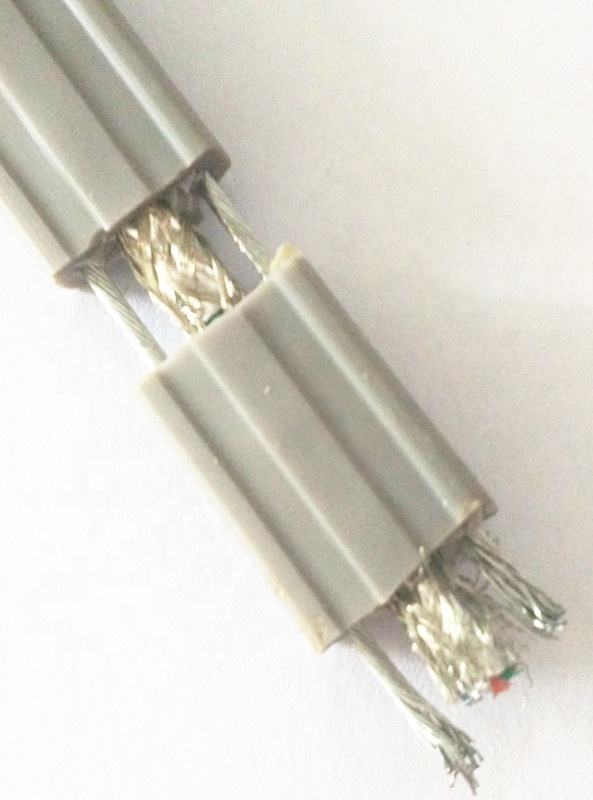

↔ Flat Travel Optimized Profile

The flat design supports a smaller bending radius and smoother trough stack‑up compared to round cables, significantly reducing mechanical wear, torsion, and installation space.

📡 High‑Performance Data Support

HDPE insulation offers low attenuation and stable electrical properties for high‑speed data, fully supporting Cat5e and Cat6A network standards — including up to 10 Gigabit Ethernet.

📊 Technical Specifications

🧠 Why This Cable Outperforms Standard Elevator Cables

• Zero Signal Loss: Hybrid construction keeps high‑speed data clean even under mechanical movement.

• Superior Flex Life: Maintains flexibility after millions of bending cycles.

• Cold Weather Toughness: Outlasts standard PVC cables that often become brittle and crack in cold environments.

• EMI Protection: Ensures clear video and control signals even in electrically noisy elevator machinery areas.

🏙 Typical Applications

This flat CCTV elevator cable is optimized for:

✔ Elevator CCTV & security camera systems
✔ Digital signage networking within lift cabins
✔ High‑rise building surveillance
✔ Smart elevator modernization projects
✔ Lift shaft data backbone in cold climates

Ideal for integration by:
🔧 Elevator OEMs | 🧰 MRO Providers | 🏢 System Integrators | 🏙 Building Management

📌 Frequently Asked Questions (FAQ)

Q: What makes this cable different from standard elevator cables?
A: Standard cables often lack adequate shielding and mechanical strength for vertical motion and cold conditions. Our cable uses dual steel reinforcement and dual shielding to address both mechanical and signal challenges.

Q: Can this cable support Cat6A data speeds?
A: Yes. The cable’s insulation and shielding are designed for high‑speed networking up to Cat6A standards, including up to 10 Gbps.

Q: Is it suitable for outdoor or unconditioned shaft environments?
A: Yes. The cold‑resistant PVC/NBR jacket remains flexible and crack‑resistant down to ‑15 °C and provides protection against shaft moisture and temperature swings.

Q: What is the minimum order quantity (MOQ)?
A: We support low MOQ for samples and prototypes, with volume pricing available for large orders.
