Aquaculture Monitoring | ROV Cable | Lightweight Construction | Reduced Equipment Load

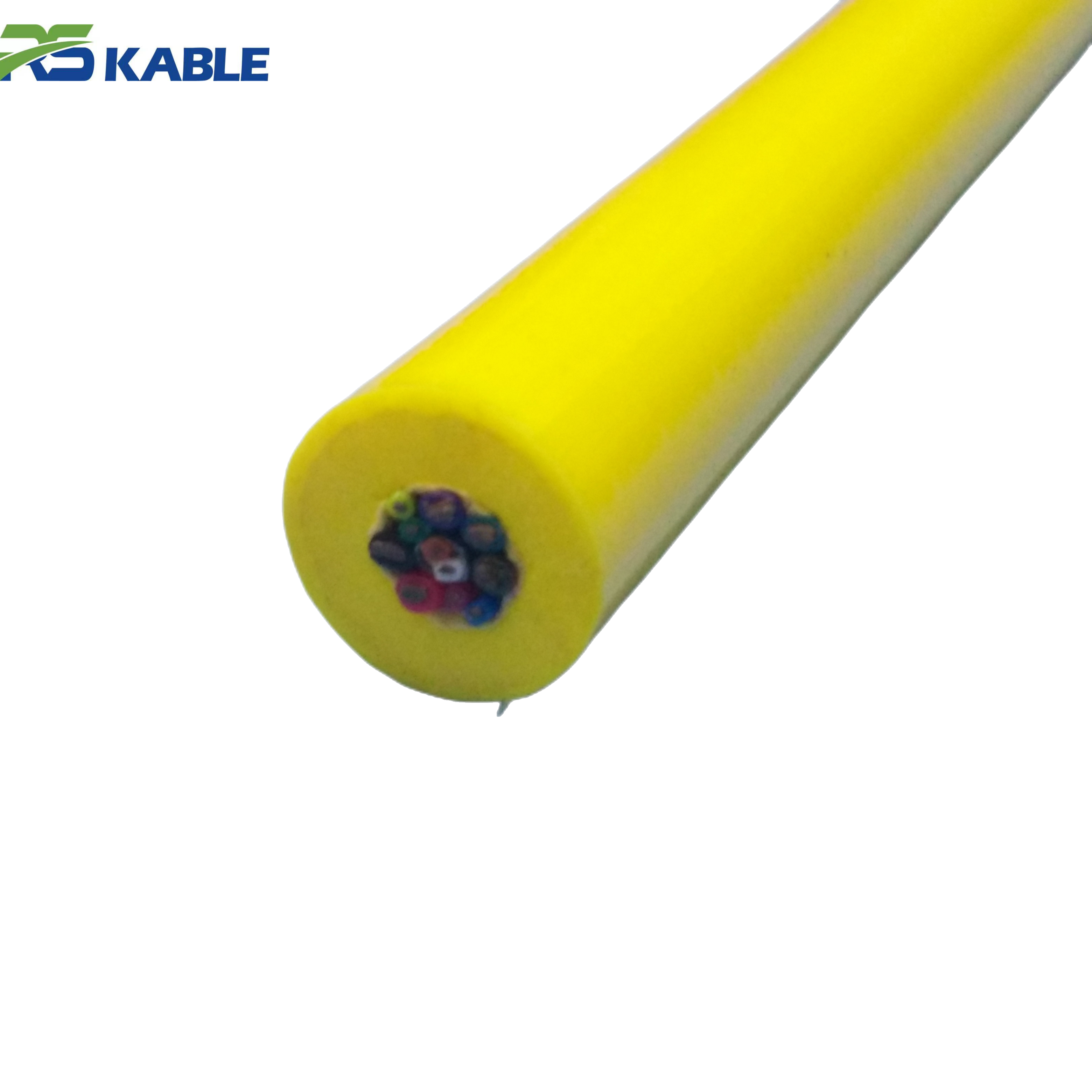

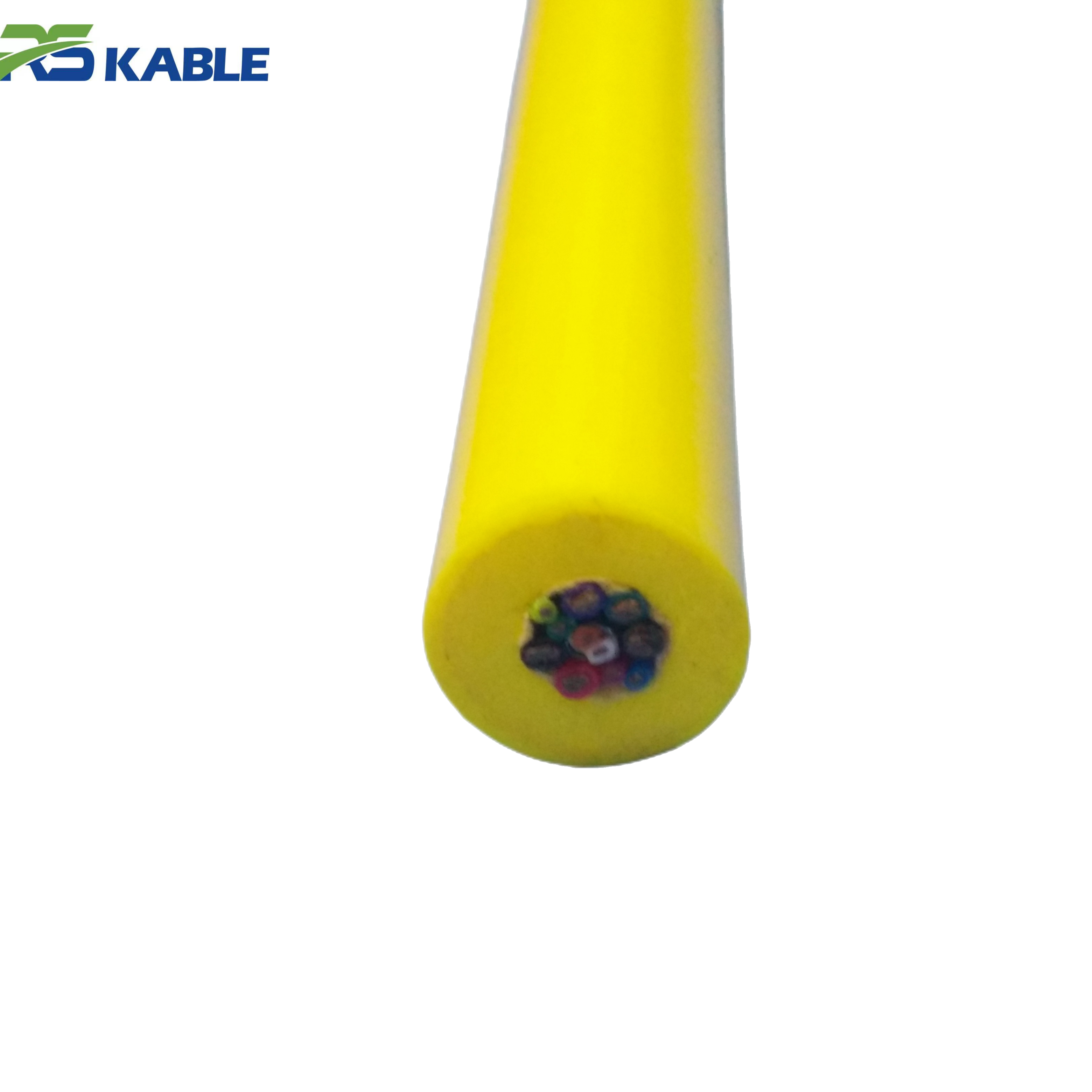

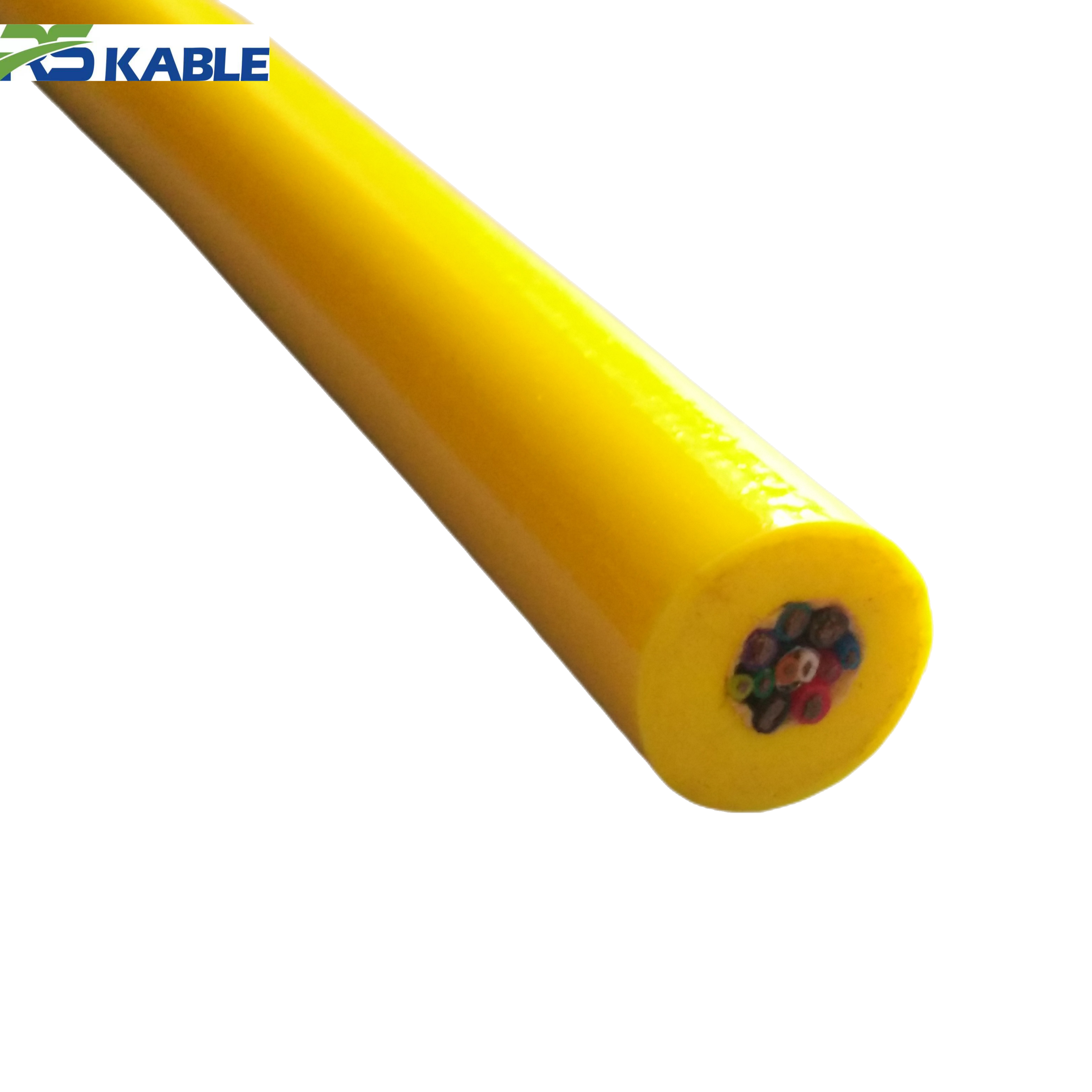

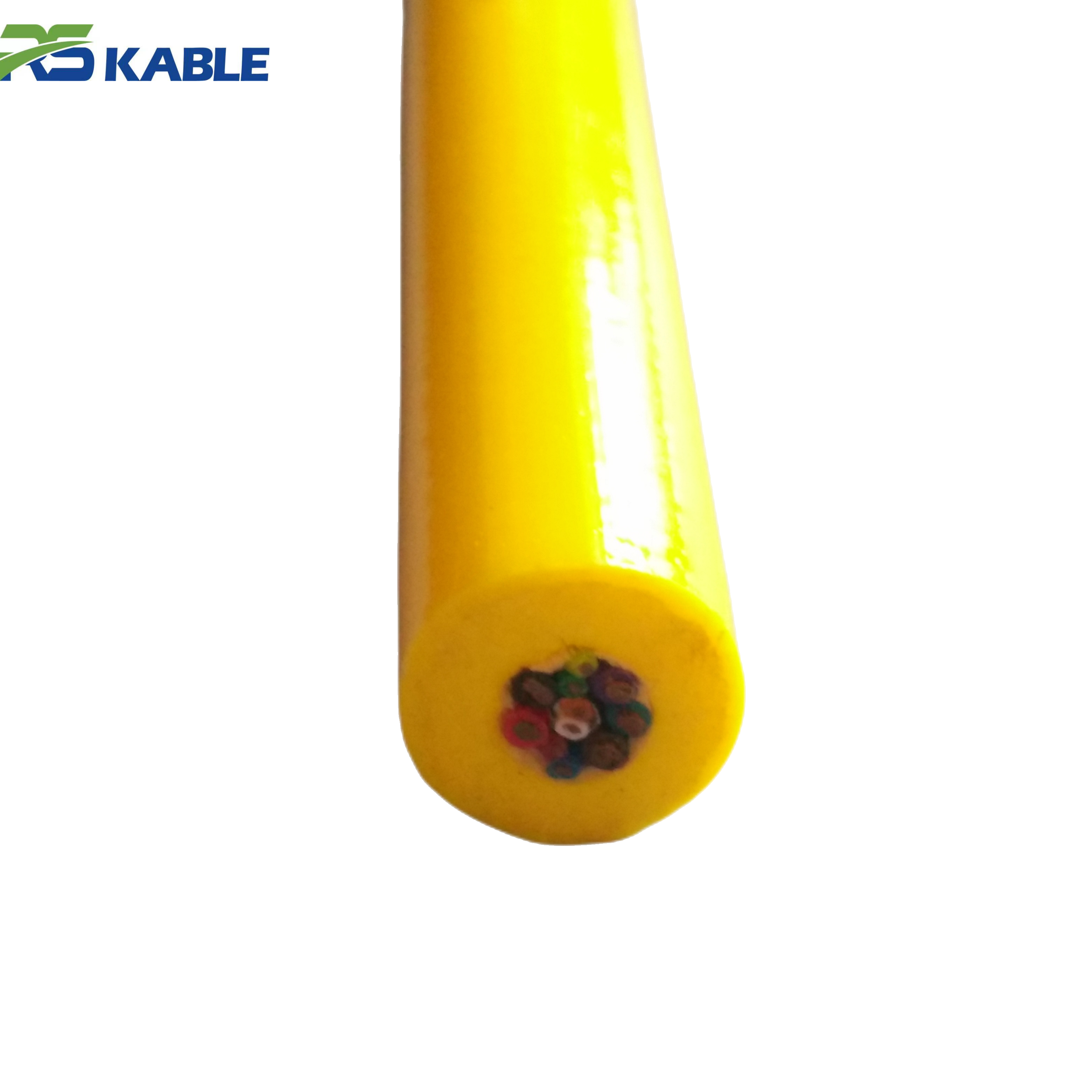

This lightweight ROV Cable is specifically developed for aquaculture monitoring and coastal inspection systems. Featuring a flexible structure, reduced-diameter design, and marine-resistant outer jacket, it minimizes drag and mechanical stress on small ROVs. Available in power-only or hybrid power-and-fiber configurations, it ensures stable data transmission and dependable operation during frequent deployment cycles. Ideal for fish farms, floating platforms, and environmental monitoring systems, it delivers long-term durability, ease of handling, and efficient underwater performance.
Aquaculture Monitoring | ROV Cable | Lightweight Construction | Reduced Equipment Load
Designed for fish farms, offshore cages, and marine aquaculture systems, our ROV Cable delivers lightweight handling and reduced equipment load for inspection-class underwater robots. Engineered with a compact structure and flexible materials, this tether minimizes drag and mechanical stress on small ROVs while maintaining stable power and signal transmission. Ideal for routine net inspection, feeding system monitoring, and environmental data collection in coastal and nearshore waters.
Optimized for Aquaculture Operations
Aquaculture environments require frequent deployment, easy retrieval, and reliable performance in shallow to mid-depth water. This ROV Cable is engineered to meet those needs through:
-
Lightweight construction for reduced ROV motor strain
-
Flexible outer sheath for easy coiling and storage
-
Stable power and low-noise signal transmission
-
Resistance to saltwater, biofouling, and UV exposure
-
Neutral or slightly positive buoyancy options
By reducing tether weight and drag, operators experience smoother maneuverability and lower overall equipment fatigue.
Available Models & Core Attributes
| Model Code | Product Name (Model + Core Attribute) | Core Configuration | Depth Rating | Approx. Weight |
|---|---|---|---|---|
| AQ-ROV-4L | 4-Core Lightweight Power Cable | 4 × 1.5 mm² fine-stranded copper | 500 m | ≤ 160 g/m |
| AQ-ROV-6LS | 6-Core Power + Signal, Flexible Jacket | 4 × 1.5 mm² + 2 × twisted pair | 800 m | ≤ 190 g/m |
| AQ-ROV-4LF | Hybrid Power + Fiber, Compact Structure | 2 × 1.5 mm² + 2–4 fiber cores | 1,000 m | ≤ 210 g/m |
| AQ-ROV-FLEX-PRO | Ultra-Flexible Monitoring Cable, Reinforced Member | Multi-core + aramid strength layer | 1,500 m | ≤ 240 g/m |
All models are optimized for frequent deployment cycles common in aquaculture monitoring.
Technical Specifications
| Parameter | Specification | Material / Standard |
|---|---|---|
| Conductor | Fine-stranded tinned copper | IEC 60228 Class 5 |
| Insulation | PE or lightweight XLPE | Low water absorption |
| Shielding | Optional foil + braided shield | EMI protection |
| Strength Member | Aramid fiber reinforcement | Tensile ≥ 1,200 kg |
| Outer Jacket | TPU or marine-grade PVC | Saltwater & UV resistant |
| Buoyancy | Neutral / Slight positive | Density adjustable |
| Operating Temperature | –20°C to +70°C | Coastal conditions |
| Voltage Rating | 300/500V | Safe for monitoring systems |
| Compliance | ISO 9001, RoHS | Quality verified |
Applications in Aquaculture & Coastal Monitoring
This ROV Cable supports:
-
Fish cage net inspection
-
Feeding system monitoring
-
Structural integrity checks of floating platforms
-
Environmental parameter measurement (oxygen, salinity, temperature)
-
Underwater camera and sensor deployment
-
Routine maintenance of offshore aquaculture farms
Relevant long-tail keywords:
“lightweight ROV cable for fish farm inspection,”
“aquaculture monitoring tether for small ROVs,”
“low-drag subsea cable for coastal operations.”
Built for Reliability & Long Service Life
Manufactured under ISO 9001-certified processes, each cable undergoes:
-
Flex cycle testing
-
Salt spray resistance testing
-
Tensile load verification
-
Electrical continuity testing
-
Insulation resistance testing
Our engineering team provides configuration recommendations based on ROV size, farm layout, water depth, and deployment frequency.
Improve Your Monitoring Efficiency
Reduce equipment load and improve maneuverability with a lightweight ROV Cable designed for aquaculture monitoring systems. Configure the optimal length, core count, and buoyancy profile for your farm’s operational needs.
Frequently Asked Questions (FAQ)
Q: Is this cable suitable for small inspection ROVs?
Yes. Its lightweight construction reduces strain on compact ROV propulsion systems.
Q: Can buoyancy be customized for shallow coastal waters?
Yes. Neutral or slightly positive buoyancy options are available.
Q: Does it resist biofouling and UV exposure?
The marine-grade outer jacket provides resistance to saltwater, sunlight, and common aquaculture conditions.
Q: How often can the cable be deployed?
It is designed for frequent deployment and retrieval cycles typical in aquaculture monitoring.
Q: Are hybrid fiber options available?
Yes. Selected models integrate optical fibers for high-definition video and data transmission.
