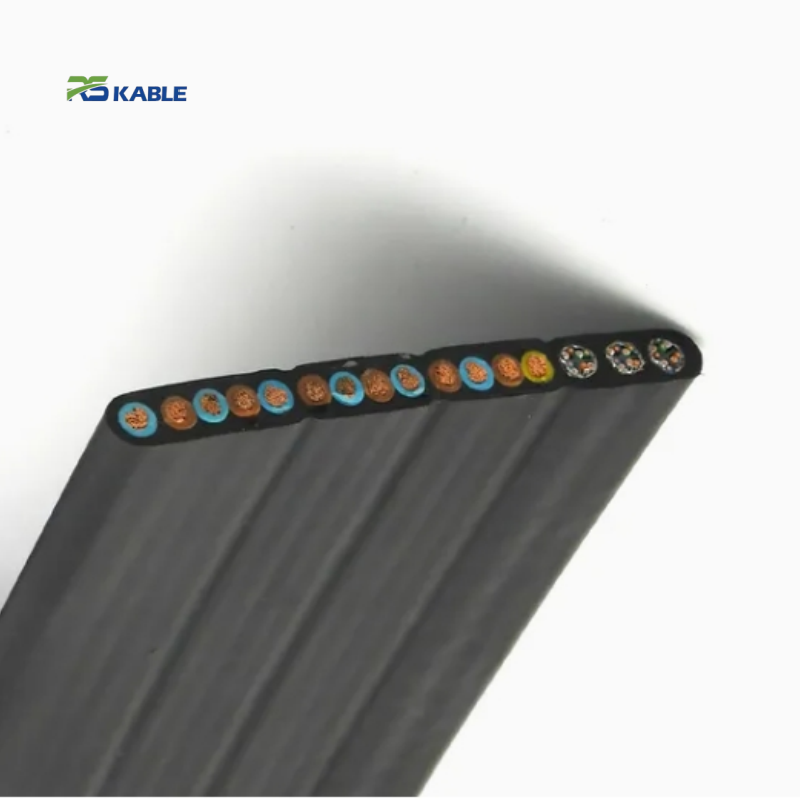

24×0.75mm Industrial Elevator Travelling Flat Cable | PE Insulated Bare Copper | Cat5e/Cat6

Modern elevator systems demand more than just power; they require flawless data transmission for CCTV, digital displays, and card readers. The 24×0.75mm Industrial Elevator Travelling Flat Cable by Shanghai Ruosheng is engineered to meet these dual needs. Combining robust power conductors with high-speed Cat5e or Cat6 data lines, this hybrid flat cable eliminates the need for multiple independent cable runs, ensuring a cleaner, safer, and more reliable hoistway installation.

Designed for high-rise and high-speed environments, our travelling cables withstand the rigorous mechanical stress of constant motion while maintaining signal integrity. Whether you are upgrading an existing lift or specifying for a new installation, this cable offers the flexibility and durability required for global export markets, including Europe.

The Hybrid Advantage: Power Meets High-Speed Data

Standard flat cables often struggle to handle the interference between power currents and sensitive data signals. Our solution integrates PE (Polyethylene) insulated data pairs alongside traditional PVC-insulated power cores.

Why PE insulation? Unlike standard PVC, Polyethylene has a lower dielectric constant, which significantly reduces signal loss and capacitance. This ensures that video feeds remain crisp and communication lines stay static-free, even over long suspension lengths.

Key Performance Features

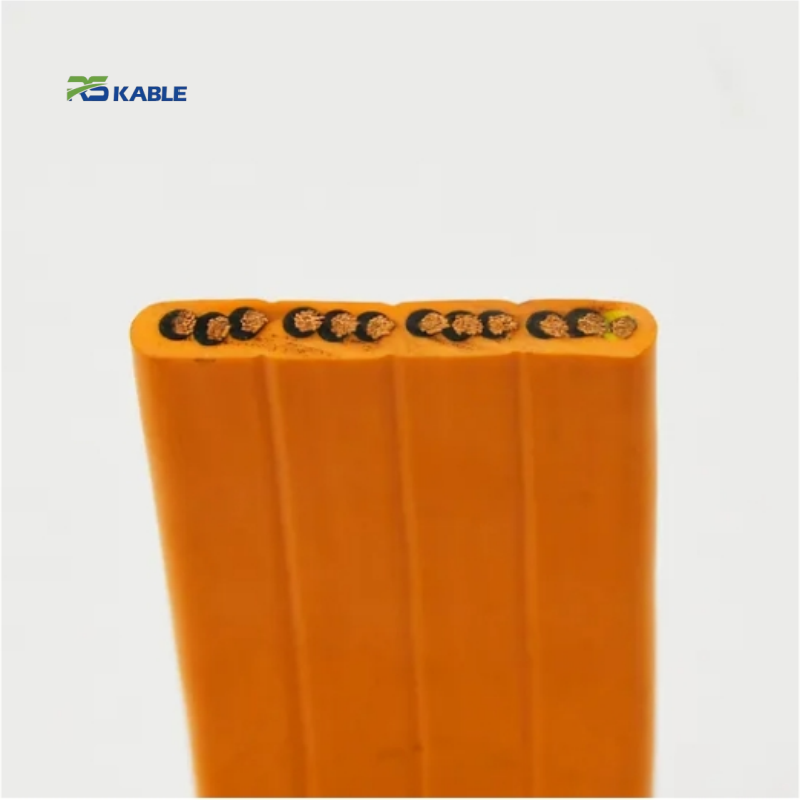

• Space-Saving Flat Design: The parallel alignment allows for a tighter bending radius compared to round cables, stacking neatly in the shaft to prevent twisting or “corkscrewing.”
• Integrated Communication: Available with built-in shielded Cat5e or Cat6 ethernet pairs, perfect for IP cameras and multimedia screens inside the cabin.
• High Flexibility: Built with Class 5 finely stranded bare copper conductors, tested to withstand millions of flex cycles without work-hardening or breakage.
• Interference Immunity: The data sections feature aluminum foil shielding and tinned copper braiding to block electromagnetic interference (EMI) from the adjacent power cores.

Technical Specifications

Engineered for Durability and Safety

Safety in vertical transportation is non-negotiable. Shanghai Ruosheng’s cables are manufactured under strict quality control protocols. The outer sheath is crafted from a special soft PVC compound that resists oil, abrasion, and cold temperatures, preventing the cracking that often plagues inferior cables in unheated shafts.

For installations exceeding standard heights (typically over 80 meters), we offer variants reinforced with dual galvanized steel wires. These load-bearing members absorb the tensile stress, ensuring the copper conductors carry only current, not the weight of the cable itself.

Frequently Asked Questions (FAQ)

What is the difference between PE and PVC insulation in elevator cables?

PE (Polyethylene) is used for data pairs because it offers better electrical properties for high-frequency signal transmission compared to PVC. While PVC is excellent for durability and power cores, using PE for the data component minimizes signal attenuation and crosstalk.

Can this cable be used for CCTV and internet in the elevator car?

Yes. The integrated Cat5e or Cat6 section is specifically designed to support IP cameras, digital signage, and Wi-Fi access points within the elevator car, handling high bandwidths reliably.

Do I need steel wire reinforcement?

If your free hanging length exceeds 80 meters, we strongly recommend our reinforced model (often designated with a ‘G’ in the code, like TVVBPG). The steel wires prevent the cable from stretching under its own weight.

What is the lead time for customized orders?

As a manufacturer with over 100 specialized cable varieties, Shanghai Ruosheng can often expedite production. Standard configurations are frequently in stock, while custom lengths or core combinations typically ship within 7–14 days depending on volume.
