23AWG Industrial Bare Copper CAT6 UTP Flat Elevator LAN Cable with Dual Steel Cores | PE Insulation
.High-speed Gigabit data transmission for elevator IP cameras and multimedia.
.Dual steel messenger wires absorb tension to prevent copper breakage.
.Flat geometric design prevents twisting and allows smaller bending radii.
.Pure 23AWG bare copper ensures stable PoE support and signal integrity.
.Manufactured by Shanghai Ruosheng, specialists in high-flex cable solutions.
Reliable Data Transmission for Modern Elevator Systems
Elevators are no longer just metal boxes moving between floors; they are mobile data hubs. From high-definition CCTV security feeds to digital signage and multimedia screens, modern lift cabins require significant bandwidth. However, standard ethernet cables are not engineered to survive the constant motion, vertical tension, and tight bending radii of an elevator shaft.
Shanghai Ruosheng’s 23AWG Industrial CAT6 Flat Elevator Cable is purpose-built for this hostile environment. By combining the high-speed data capacity of Category 6 ethernet with a reinforced flat suspension design, we solve the two biggest problems in lift cabling: signal loss during movement and mechanical cable failure.

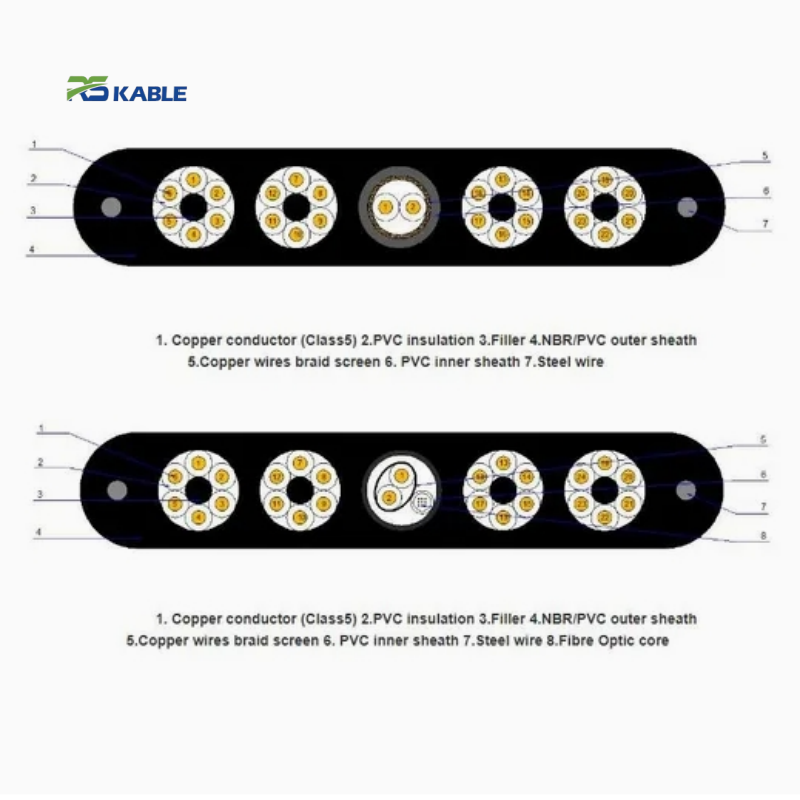

This cable features dual galvanized steel messenger wires integrated directly into the jacket. These steel cores absorb the tensile load (the weight of the cable hanging in the shaft), ensuring that the fragile copper data conductors remain stress-free. The result is a stable Gigabit connection that lasts for millions of cycles.
Engineered for Vertical Motion
Why choose a flat design over a round cable? Geometry matters in an elevator shaft.
- Smaller Bending Radius: The flat profile allows the cable to flex smoothly over pulleys and sheaves without internal twisting or “corkscrewing,” which is the leading cause of wire breaks in round cables.
- Space Efficiency: The compact profile stacks neatly, saving valuable space in the traveling cable loop.
- Vibration Reduction: The aerodynamic profile reduces sway and vibration during high-speed travel, maintaining signal integrity for sensitive IP camera feeds.
Key Technical Advantages
- Pure Copper Transmission: We use 23AWG solid bare copper conductors (not CCA) with high-quality PE (Polyethylene) insulation. This ensures compliance with CAT6 standards for bandwidth and attenuation, supporting clear 1080p/4K video transmission.
- Dual Steel Strength Members: Two parallel steel wire ropes run the length of the cable, taking the mechanical strain off the copper pairs.
- Durability Focus: The outer jacket is crafted from a specialized flexible PVC (or optional LSZH) compound designed by Shanghai Ruosheng. It resists cracking under repetitive bending and withstands oil and abrasion.
- Interference Protection: The UTP (Unshielded Twisted Pair) design is optimized with precise twist rates to minimize crosstalk, suitable for most commercial elevator environments.
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Product Name |
Flat Elevator Traveling LAN Cable CAT6 |
|
Conductor Material |
99.99% Oxygen-Free Bare Copper |
|
Conductor Size |
23 AWG (Solid) |
|
Insulation |
High-Density Polyethylene (HDPE) |
|
Core Structure |
4 Twisted Pairs (8 cores) |
|
Strength Members |
Dual Galvanized Steel Wire Ropes |
|
Jacket Material |
Special Flexible PVC (customizable to LSZH) |
|
Cable Shape |
Flat / Parallel Construction |
|
Operating Temperature |
-20°C to +70°C |
|
Rated Voltage |
300V/500V |
|
Bending Radius |
Mobile: 8x Cable Thickness |
|
Compliance |
CE, RoHS, ISO/IEC 11801 |
|
Application |
Elevator IP Cameras, Digital Signage, Lift Controls |
Applications
This cable is specifically engineered for dynamic vertical suspension in:
- Passenger and Freight Elevators: Connecting cabin control panels and safety monitoring.
- IP CCTV Systems: Providing stable video feeds for security cameras inside the cabin.
- Multimedia Displays: Driving advertising screens and infotainment systems.
- Automated Warehousing: High-bay storage and retrieval systems (AS/RS).
Frequently Asked Questions (FAQ)
Q: What is the maximum recommended suspension length for this cable?
A: With the dual steel cores, this cable supports a free hanging length of up to 80 meters without additional strain relief. For taller high-rise applications, please consult our engineering team for custom reinforcement options.
Q: Does the cable support PoE (Power over Ethernet)?
A: Yes. Since we use pure 23AWG bare copper (not copper-clad aluminum), this cable supports PoE and PoE+ standards, making it ideal for powering IP cameras directly without separate power lines.
Q: Is the jacket resistant to oil and cold weather?
A: Yes, our standard special PVC compound remains flexible down to -20°C and has good resistance to industrial oils. For extreme cold storage elevators (down to -40°C), we offer a customized PUR jacket option.
Q: Can I order this cable with a customized color or print?
A: Absolutely. As a direct manufacturer, we offer OEM services including custom jacket colors (Grey, Black, Orange) and cable printing with your brand logo for qualifying orders.
