200°C PTFE Ethernet Cable – Custom Length, Industrial Applications

Name: 200°C PTFE Ethernet Cable – Custom Length, Industrial Applications
Rating: 4.5 (10 reviews)

The RS-PTE Series 200°C PTFE Ethernet Cable is Rousheng’s flagship solution for high-temperature industrial data networking. Designed and manufactured to IEC 61156 and MIL-W-16878 dimensional standards, this cable addresses the fundamental limitation of conventional Ethernet cabling — thermal instability above 80°C — by replacing PVC, PE, and LSZH jacket materials entirely with polytetrafluoroethylene, a fluoropolymer renowned for its thermal endurance, chemical inertness, and exceptionally low dielectric constant.

The RS-PTE5e-200 (Cat 5e), RS-PTE6-200 (Cat 6), and RS-PTE6A-200 (Cat 6A) variants are all rated for continuous operation at 200°C and intermittent exposure up to 260°C, while simultaneously remaining flexible at cryogenic temperatures as low as -65°C. This thermal versatility makes the cable equally effective in a paint-cure oven cycling between room temperature and 200°C, or in a cryogenic facility where Ethernet-based instrumentation must function reliably across a 265°C thermal excursion range.

Description

200°C PTFE Ethernet Cable – Custom Length, Industrial Applications

The 200°C PTFE Ethernet Cable is engineered for uncompromising data integrity in extreme-heat environments where standard networking cables fail. Built with a pure polytetrafluoroethylene (PTFE) dielectric and insulation system, this high-temperature Ethernet cable maintains stable signal transmission at continuous operating temperatures up to 200°C — making it the preferred choice for furnace monitoring systems, semiconductor fabrication lines, aerospace test rigs, and other thermally demanding industrial applications. Available in custom cut lengths from 0.5 m to 500 m, each cable is manufactured against IEC 61156 and MIL-spec dimensional standards.

★ Max Temp: 200°C | ★ Cat 5e / Cat 6 Available | ★ Custom Length | ★ UL / CE / RoHS

Product Overview

Attribute	Details
Product Name	200°C PTFE Ethernet Cable
Model Numbers	RS-PTE5e-200 (Cat 5e) \| RS-PTE6-200 (Cat 6) \| RS-PTE6A-200 (Cat 6A)
Cable Category	High-Temperature Industrial Ethernet Cable
Max Operating Temp	200°C (392°F) Continuous
Min Operating Temp	-65°C (−85°F)
Insulation / Jacket	PTFE (Polytetrafluoroethylene) — Primary Insulation & Outer Jacket
Available Standards	Cat 5e (100 MHz) \| Cat 6 (250 MHz) \| Cat 6A (500 MHz)
Custom Length Range	0.5 m – 500 m (cut-to-length upon order)
Certifications	UL Listed \| CE Marked \| RoHS Compliant \| IEC 61156
Application Type	Industrial, Aerospace, Semiconductor, Defense, Energy

Why Choose a PTFE-Insulated Ethernet Cable for High-Temperature Environments?

Standard Cat 5e and Cat 6 Ethernet cables use PVC or LSZH jackets rated to 60–80°C. In process-intensive industrial settings — steelworks, coke ovens, autoclave chambers, or engine test cells — ambient temperatures routinely exceed these limits, causing insulation to soften, deform, or outgas harmful compounds that corrode copper conductors and degrade transmission performance.

PTFE offers a fundamentally different material response. Its carbon-fluorine backbone is among the most thermally stable polymer structures known, allowing this high-temperature network cable to:

Sustain continuous 200°C service without measurable change to dielectric constant (εᵣ ≈ 2.1)
Resist chemical attack from coolants, hydraulic fluids, solvents, and aggressive industrial atmospheres
Maintain low-loss signal characteristics (Cat 6: insertion loss ≤ 23.2 dB/100 m at 100 MHz) across the full temperature range
Pass UL 94 V-0 flame testing, adding inherent fire safety to demanding installations
Withstand repeated thermal cycling between cryogenic cold and process heat without cracking or delamination

The result is a Gigabit-capable Ethernet conductor that stays on-spec where PVC, PE, or even FEP cables reach their operational limits.

Full Technical Specifications

RS-PTE5e-200 | Cat 5e PTFE Ethernet Cable, 200°C

Parameter	Specification
Conductor	Solid or stranded bare copper, AWG 24 (0.20 mm²)
Pair Insulation	PTFE tape-wrapped + extruded PTFE, wall 0.23 mm
Pair Construction	4 individually twisted pairs, lay length 12–38 mm
Overall Shield	Optional: 100% Al-polyester foil + TC braid (≥65% coverage)
Outer Jacket	Extruded PTFE, thickness 0.8 mm, grey or custom RAL
Outer Diameter	~6.2 mm (unshielded) / ~7.4 mm (shielded)
Characteristic Impedance	100 Ω ± 15 Ω
Attenuation at 100 MHz	≤ 22.0 dB / 100 m
NEXT (100 MHz)	≥ 35.3 dB
Bend Radius (fixed)	4× OD
Bend Radius (flex)	8× OD
Operating Temp Range	-65°C to +200°C
Voltage Rating	30 V AC / DC (signal only)
Flame Rating	UL 94 V-0
Weight	~55 kg / km

RS-PTE6-200 | Cat 6 PTFE Ethernet Cable, 200°C

Parameter	Specification
Conductor	Solid bare copper, AWG 23 (0.25 mm²)
Pair Insulation	PTFE extruded, wall 0.28 mm; PP cross-filler separator
Pair Construction	4 pairs with longitudinal spline to maintain geometry
Bandwidth	250 MHz (Gigabit & 2.5 GBase-T capable)
Attenuation at 100 MHz	≤ 19.8 dB / 100 m
NEXT (250 MHz)	≥ 37.1 dB
Return Loss (100 MHz)	≥ 20.1 dB
Outer Jacket	PTFE 0.9 mm, O.D. ~7.1 mm (unshielded)
Operating Temp	-65°C to +200°C
Max Pull Tension	110 N
Crush Resistance	≥ 3000 N / 100 mm

Application Scenarios

This heat-resistant Ethernet cable is specified across a wide range of sectors where thermal exposure, chemical contamination, or electromagnetic interference would compromise ordinary copper data cables:

Industry / Sector	Typical Use Case
Semiconductor Fab	PECVD furnace sensor networks, diffusion furnace monitoring, PLC-to-HMI data links inside process chambers
Steel & Metals	Coke oven instrumentation, electric arc furnace (EAF) automation, rolling mill control networks in high-radiant-heat zones
Aerospace & Defense	Engine test cell data acquisition, avionics bay wiring near heat exchangers, ground support equipment in desert or extreme climates
Energy & Power	Gas turbine control system cabling, nuclear plant instrumentation (Zone 2 hot areas), industrial boiler automation
Automotive OEM	Oven-conveyor network wiring in paint-shop body shops (160–200°C cure ovens), engine dynamometer test rigs
Chemical Processing	Autoclave Ethernet links, reactor vessel instrumentation in corrosive / acidic atmospheres
Food & Pharmaceutical	Sterilization tunnel instrumentation, steam-in-place (SIP) network nodes, aseptic zone sensors
Glass & Ceramics	Kiln monitoring systems, glass tempering furnace data networks requiring tight run-length control

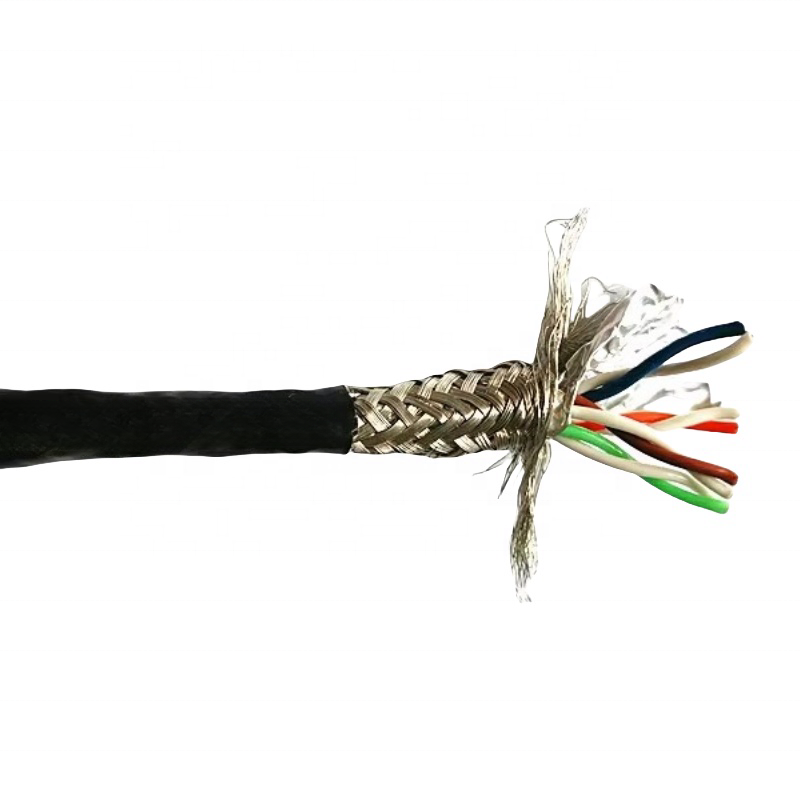

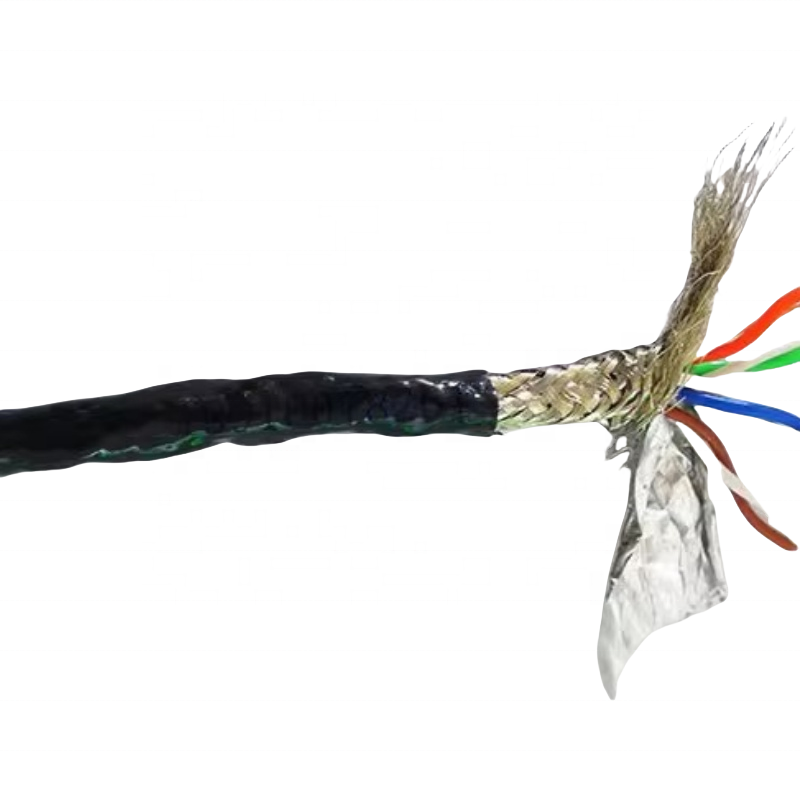

Cable Structure — Layer by Layer

Understanding the internal architecture of this PTFE-insulated industrial Ethernet cable helps engineers confirm compatibility with their installation environment:

Layer 1 — Conductor: Bare or silver-plated copper wire (solid for fixed installation; 7-strand for flex routing). Silver plating is recommended above 150°C to prevent oxidation creep at termination points.

Layer 2 — Primary Insulation: Skived PTFE tape wrapped helically, then sintered, creates a void-free dielectric with εᵣ = 2.1. This low-dielectric value is key to maintaining impedance at elevated temperatures.

Layer 3 — Twisted Pairs: Four precisely twisted pairs (lay lengths tuned per category) reduce cross-talk and ensure NEXT / FEXT compliance at rated bandwidth.

Layer 4 — Pair Separator (Cat 6 / 6A): PTFE or glass-fibre spline keeps pair geometry locked under thermal expansion, protecting impedance uniformity across the full temperature swing.

Layer 5 — Overall Screen (Optional): Aluminised polyester foil (100% coverage) plus tinned-copper braid provides EMI shielding to 60–85 dB. Recommended for installation near inverters, VFDs, or high-current busbars.

Layer 6 — Outer Jacket: Extruded or tape-wrapped PTFE — chemically inert to virtually all industrial solvents, acids, and bases. Smooth surface facilitates clean installation through conduit. Colour coding available on request.

Custom Length Options & How to Order

Every 200°C PTFE Ethernet Cable order is cut and tested to the length you specify. No minimum order quantity applies on standard Cat 5e and Cat 6 variants. Custom Cat 6A and armoured builds require a minimum of 50 m.

Length Range	Tolerances	Lead Time	Packaging
0.5 – 10 m	+0 / −0 cm	3–5 business days	Coiled, bagged
10 – 100 m	+0 / −50 cm	5–7 business days	Drum reel
100 – 500 m	+0 / −1 m	7–14 business days	Plywood reel
500 m + (bulk)	As agreed	14–21 business days	Steel reel / per project

To place an order, please provide:

Cable model (RS-PTE5e-200, RS-PTE6-200, or RS-PTE6A-200)
Required length in metres
Shielded (SF/UTP) or unshielded (U/UTP) configuration
Connector termination requirements (RJ45, M12 D-coded, bare-end)
Quantity and delivery address

PTFE vs. Alternative Cable Insulation — Performance Comparison

Property	PTFE	FEP	PVC	LSZH
Max Cont. Temp	200°C ✓	150°C	70°C	80°C
Chemical Resistance	Excellent ✓	Good	Fair	Fair
Dielectric Constant	2.1 (lowest) ✓	2.1	3.4–5.0	2.8–3.5
Flame Rating	V-0 ✓	V-0	V-0 / V-2	V-0
Cold Flex	-65°C ✓	-65°C	-20°C	-30°C
Signal Loss	Lowest ✓	Low	Higher	Moderate
UV / Ozone Resist.	Excellent ✓	Good	Poor	Moderate

Frequently Asked Questions (FAQ)

Q1: Is this cable compatible with standard RJ45 connectors?

Yes — the outer diameter of RS-PTE5e-200 and RS-PTE6-200 is within standard tooling range (≤ 7.5 mm O.D.). High-temperature RJ45 connectors with metal housings are recommended for terminations exposed to above 85°C ambient. For industrial panel connections, M12 D-coded 4-pin connectors rated to 200°C are available as a factory-fitted option.

Q2: Can I order this cable in non-standard colours for colour-coded installations?

Yes. The PTFE outer jacket can be extruded in custom RAL colours — blue, red, orange, yellow, and white are stock options. Custom colour matching requires a minimum order of 200 m per colour. Colour changes do not affect electrical performance or the temperature rating.

Q3: What is the maximum continuous bandwidth supported at 200°C?

The Cat 5e variant (RS-PTE5e-200) supports 1000BASE-T Gigabit Ethernet (1 Gbps) up to 100 m at full operating temperature. The Cat 6 model supports 1 Gbps to 100 m and 2.5GBASE-T to 100 m at ambient temperature up to 75°C; at 200°C, 1 Gbps over 80 m is verified in our factory test data. For 10GBASE-T requirements at high temperatures, request the Cat 6A variant (RS-PTE6A-200).

Q4: Does the cable require conduit in furnace environments?

PTFE’s self-lubricity makes bare cable installation in metallic conduit straightforward. In direct radiant-heat zones above 180°C, we recommend stainless-steel flexible conduit as a secondary protection. The cable itself does not require conduit for thermal protection — only for mechanical abrasion or chemical-spray environments. Always allow a 25°C service margin below the jacket’s rated temperature.

Q5: Are screened (shielded) versions available, and how does shielding perform at temperature?

Screened variants (model suffix -S) include 100% aluminium-polyester tape plus tinned-copper braid, providing 65–85 dB shielding effectiveness from 1 MHz to 1 GHz. The tinned copper braid retains its solderability and mechanical integrity across the full -65°C to +200°C operating range. A PTFE-insulated drain wire is included for consistent shield grounding.

Q6: How do I specify silver-plated conductors, and when are they necessary?

Silver plating is available as a factory option (model suffix -AG). It is recommended when: (a) terminations will be exposed to temperatures above 150°C during soldering or service, (b) the installation involves repeated thermal cycling above 160°C, or (c) the application environment includes sulphur compounds that could tarnish bare copper. Silver-plated builds carry a modest price premium and a 3–5 day additional lead time.

Q7: What quality testing does each batch undergo?

Each production batch of this PTFE-insulated high-temperature Ethernet cable is subject to: 100% electrical continuity and wire map test; impedance verification (TDR); attenuation and NEXT measurement per IEC 61156-5 or IEC 61156-6; high-voltage dielectric withstand test; dimensional inspection (OD, wall thickness); and a thermal soak at 200°C for 24 hours with post-soak electrical retest. Test reports are available upon request for every shipped reel.
